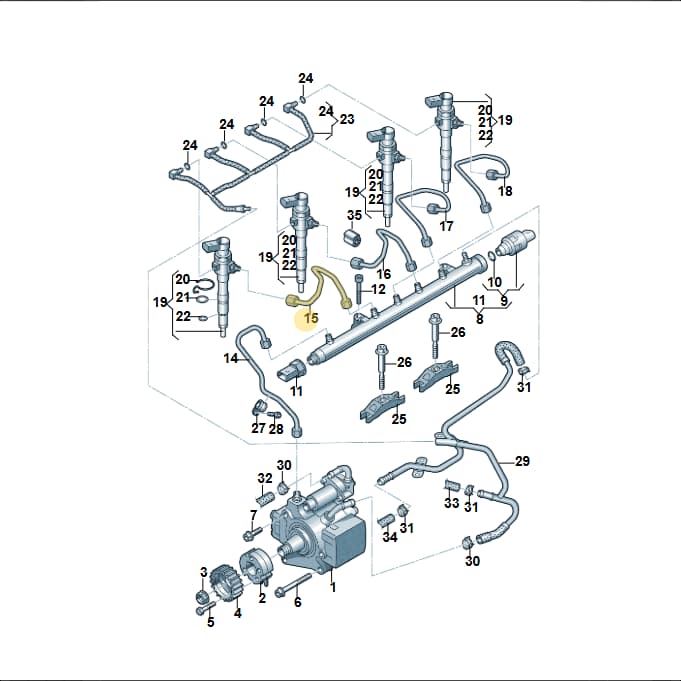

Number 15 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen High Pressure Pipe, part number 03L130301AM. This pipe is designed to transport fuel under high pressure from the common rail to an individual fuel injector, ensuring precise fuel delivery for optimal engine combustion. It is a critical component within the fuel injection system. Weighing 0.0845 kg, this pipe is constructed to withstand extreme pressures. Choosing genuine OEM ensures the correct material strength, precise dimensions, and leak-free connections vital for high-pressure fuel system safety and performance.

Technical details

Category
Fuel System
Country of origin
Spain
Customs (HS) code
84099900
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
10 × 8 × 5.5 cm
Shipping weight
0.08 kg

Parts diagram & fitment

43 vehicles

Pressure Pipe — locate 03L130301AM Volkswagen High Pressure Pipe | Fuel System in the official exploded view and explore the surrounding assembly.

Superseded by 03L130301AP — the later replacement part.

This part is marked discontinued by the manufacturer; contact us to check current availability.

Parts in this assembly(27)
Compatible / alternative parts(12)

Diagrams & fitment data powered by oemdiagrams.com

03L130301AM Volkswagen High Pressure Pipe | Fuel System is fitted on: JETTA 06> 2006-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; passat estate 2008-2011; jetta 2008-2011; Polo 2009-2012; Polo 2009-2014; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; Passat saloon 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; Polo 2012-2014; jetta 2014-2017; Polo 2014-2022; caddy kombi 2015-2020; Ameo 1,0 2016-2020; LEON 06> 2005-; ALTEA 07> 2006-; Ibiza Reference 2008-2011; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Ibiza Reference 2011-2012; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Altea XL Reference 2013-2013; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Fabia Scout 2010-2014; Roomster 2010-2015; Rapid Ambition 2011-2021; Rapid 2012-2022; superb 2013-2015; Yeti 2013-2017; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi A1 Sportback 2010-2015.
