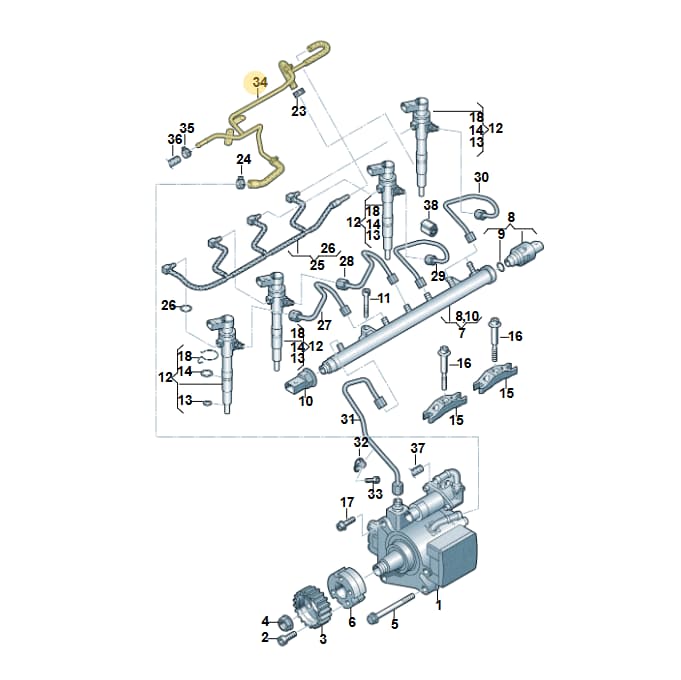

Number 34 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 03L201360R. This fuel line is part of the fuel delivery system, marked as number 34 in the diagram. It ensures the correct flow of fuel to the engine. Genuine OEM fuel lines are designed for precise fitment and resistance to fuel and heat, preventing leaks and maintaining optimal fuel pressure.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42.5 × 25 × 6.5 cm
- Shipping weight
- 0.19 kg
Parts diagram & fitment
39 vehiclesFuel Line — locate 03L201360R Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Pump 03L130755E
- 2Screw N91180301
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Part 03L130238A
- 7Rail 03L130089B
- 8Part 03L130764A
- 10Sensor 03L906054A
- 11Screw N91131601
- 12Injector 03L130277B
- 14Seal Ring WHT000884
- 15Clamp Piec 03L130216
- 16Screw WHT003187
- 17Screw WHT002494
- 22Collar Nut N01508210
- 23Clamp N90986501
- 24Clamp 4B0422379
- 25Part 03L130235P
- 26Part WHT006492
- 26Part WHT005301
- 27Pipe 03L130301AM
- 29Pipe 03L130301F
- 31Pipe 03L130321F
- 32Clamp N91171101
- 33Screw N10170302
- 35Pipe 1K0130307BA
Compatible / alternative parts(12)
- Part 03L130235AF
- Part 03L130235P
- Part WHT003187
- Part 03L130089B
- Part 03L130277B
- Part 03L130277S
- Part 03L130277SX
- Part 03L130301AM
- Part 03L130301F
- Part 03L130301P
- Part 03L130321F
- Part 03L130755AH
Diagrams & fitment data powered by oemdiagrams.com
03L201360R Volkswagen Fuel Line | Genuine OEM is fitted on: JETTA 06> 2006-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; passat estate 2008-2011; jetta 2008-2011; Polo 2009-2012; Polo 2009-2014; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; Polo 2012-2014; jetta 2014-2017; caddy kombi 2015-2020; LEON 06> 2005-; ALTEA 07> 2006-; Ibiza Reference 2008-2011; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Ibiza Reference 2011-2012; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Altea XL Reference 2013-2013; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Fabia Scout 2010-2014; Roomster 2010-2015; Rapid 2012-2022; superb 2013-2015; Yeti 2013-2017; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi A1 Sportback 2010-2015.
