Product overview
Genuine OEM Volkswagen Cylinder Head Gasket, part number 03P103383F. This gasket is essential for sealing the cylinder head to the engine block, preventing combustion gases from escaping and coolant/oil from entering the combustion chambers. It is located between the cylinder head and the engine block. Genuine OEM gaskets are manufactured to precise tolerances for optimal sealing and engine integrity.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 16.5 × 0.3 cm
- Shipping weight
- 0.24 kg

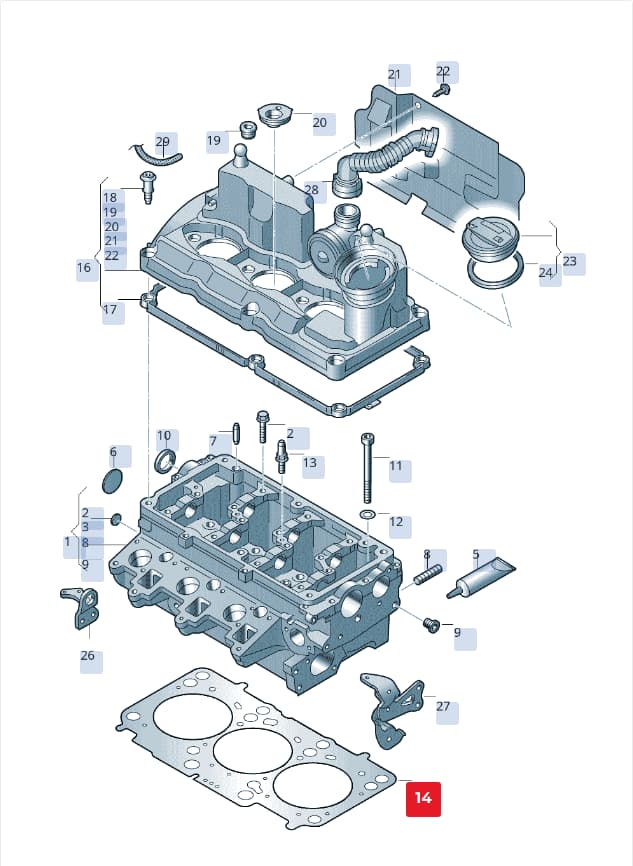

Parts diagram & fitment
3 vehiclesCylinder Head Gasket — locate 03P103383F Volkswagen Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT002131 — the later replacement part.
Parts in this assembly(28)
- 1Cylinder Head 03P103063
- 1Cylinder Head 03P103265X
- 1Cylinder Head 03P103351
- 2Bolt N10205604
- 3Cover N01191410
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085
- 11Screw WHT002131
- 12Washer N90115701
- 13Bolt WHT004737
- 14Seal 03P103383D
- 14Seal 03P103383E
- 14Seal 03P103383G
- 14Seal 03P103383H
- 14Seal 03P103383C
- 16Cover 03P103469A
- 17Seal 03P103483
- 18Bolt 03G103448B
- 19Seal 03P103487
- 20Seal Ring 03P103070
- 21Heat Sh 03P129969D
- 22Bolt N90974701
- 23Cover 06C103485P
- 28Pipe 03P103493A
Compatible / alternative parts(12)
- Part 03P103483
- Part WHT002131A
- Part 03P253039
- Part 03P129717
- Part 058103598D
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
Diagrams & fitment data powered by oemdiagrams.com
03P103383F Volkswagen Cylinder Head Gasket | Genuine OEM is fitted on: Polo 2012-2014; Polo 2014-2022; Ibiza Reference 2012-2012.
