Product overview

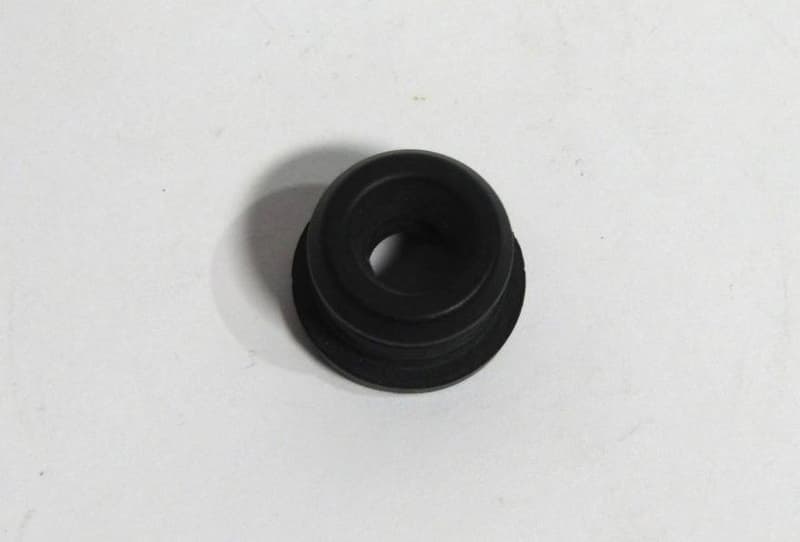

Genuine OEM Volkswagen Cylinder Head Cover Grommet, part number 04B103631. This small, yet essential, rubber grommet is designed to create a tight seal for the cylinder head cover, preventing oil leaks and protecting the engine from contaminants. It is typically installed where bolts or other components pass through the cover. Measuring 0.019 m in length and weighing only 0.0022 kg, this component is made from durable rubber. Using a genuine OEM grommet ensures the correct material composition and precise dimensions for a reliable, long-lasting seal, crucial for engine longevity.

Technical details

Category
Gaskets & Seals
Country of origin
Germany
Customs (HS) code
40169300
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
1.9 × 1.9 × 1.3 cm
Shipping weight
0 kg

Parts diagram & fitment

20 vehicles

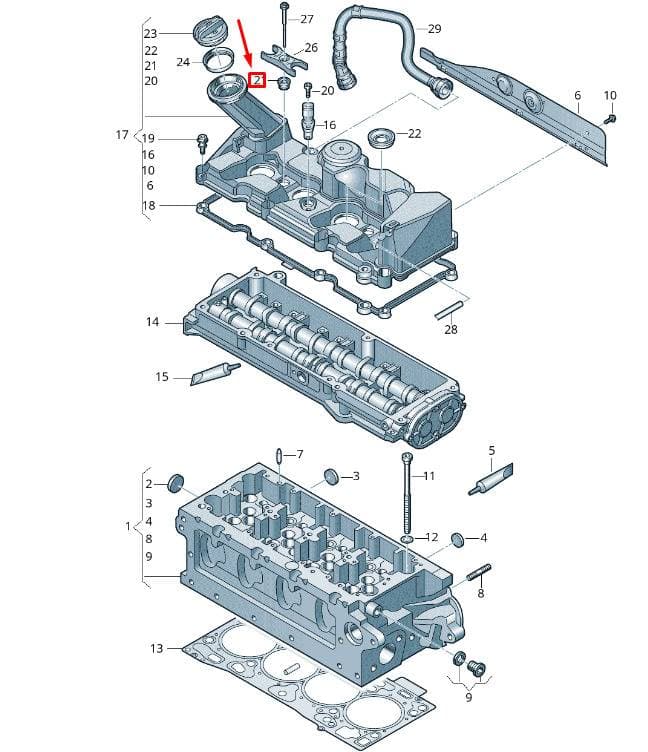

Grommet — locate 04B103631 Volkswagen Cylinder Head Cover Grommet | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(22)
  • 1Cylinder Head 04L103061H
  • 2Cover N90976102
  • 3Cover N01191410
  • 4Cover N01190710
  • 5Locking D000600A2
  • 6Heat Sh 04L129686
  • 7Part 06D103251
  • 8Bolt N90188902
  • 10Bolt N10555702
  • 11Bolt WHT007433
  • 12Washer WHT005676
  • 13Seal 04L103383AN
  • 13Seal 04L103383AP
  • 13Seal 04L103383AM
  • 15Seal D176501A1
  • 16Sender 05E907601D
  • 17Cover 04L103469J
  • 18Seal 04L103483A
  • 19Bolt 04L103831
  • 20Screw N10721401
  • 22Seal Ring 04L103070B
  • 23Cover 06K103485B
Compatible / alternative parts(12)
  • Part WHT005490
  • Part 03L103070
  • Part 04L103070B
  • Part WHT000884
  • Part 04L130519B
  • Part 04L103483A
  • Part 059130119
  • Part WHT007480
  • Part WHT007480A
  • Part 04L145822F
  • Part 058103598D
  • Part AMV17400401

Diagrams & fitment data powered by oemdiagrams.com

04B103631 Volkswagen Cylinder Head Cover Grommet | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; touareg 2017-2023; Polo 1.4 BlueMotion 2014-2017; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Audi Q8 Quattro 3,0 2018-; Audi A1 Sportback 2014-2018; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A5 Sportback 2016-2020; Toledo Reference 2012-2015; Ibiza Stylance 2015-; Toledo Reference 2015-2019; Rapid 2012-2022; fabia 2014-2022.
