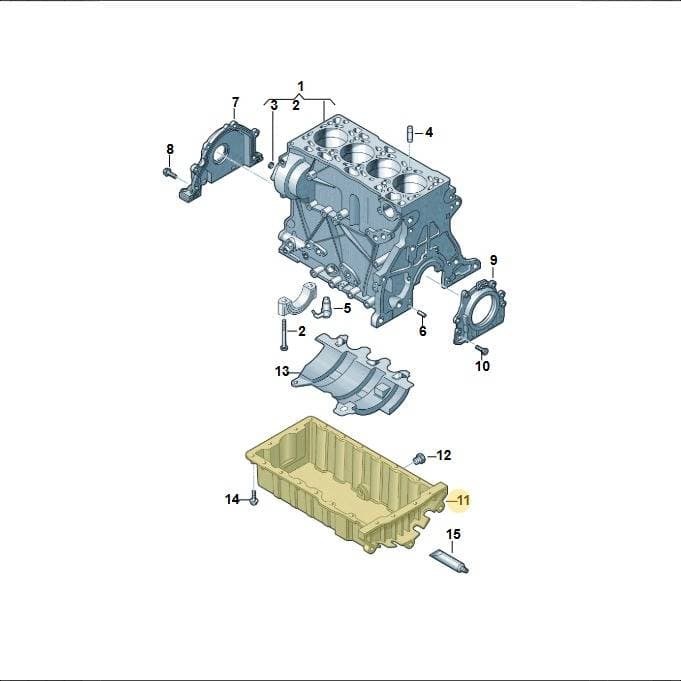

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Sump, part number 04L103603A. This component collects and stores engine oil, providing a reservoir for the lubrication system. It is located at the bottom of the engine. Constructed from durable metal for reliable engine protection. Genuine OEM oil sumps are designed to precise specifications to prevent leaks and ensure proper oil flow.
Catalogue entry: OIL SUMP.
Fitted with: N90813202 BOLT, 04L103623F LOCK, N90735604 BOLT, D176501A1 SEAL, 05L103603L OIL SUMP, N10748001 BOLT, N01508210 COLLAR NUT, 05L103603P OIL SUMP, 05L103603M OIL SUMP.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 28 × 12.5 cm
- Shipping weight
- 2.02 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesEngine Oil Sump — locate 04L103603A Volkswagen Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Crankcase 04L103011
- 1Cylind Hou 05L103011L
- 2Bolt WHT008383
- 3Oil Sump 05L103603L
- 3Oil Sump 05L103603M
- 3Oil Sump 05L103603P
- 3Cover N01190710
- 4Oil Sump 05L103602
- 4Oil Sump 05L103602G
- 4Part WHT006540
- 5Vent 038103157C
- 5Flange 05L103151C
- 6Part 05L103171A
- 6Part N0432072
- 7Part 04L103151A
- 7Oel Sensor 05L907660B
- 7Oel Sensor 06K907660C
- 8Bolt N90945002
- 9Flange 04L103171
- 9Valve 05L906455A
- 9Valve 05L906455L
- 9Valve 05L906455M
- 10Vent 05L103157
- 11Bolt N90735604
- 12Bolt N90813202
- 13Lock 04L103623F
- 15Seal D176501A1
- 15Bolt N10748001
- 16Collar Nut N01508210
- 17Screw N10653601
- 19Sender 05L906433A
- 22Bungs 05L103037
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 11 | 1 | |
| Leon style | 2019- | 16 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 11 | 1 | |
| Octavia | 2019-2024 | 11 | 1 | |
| Ateca Style | 2016- | 16 | ||
| Leon ST Stylance | 2016-2020 | 16 | 1 | QG0 |
Diagrams & fitment data powered by oemdiagrams.com
04L103603A Volkswagen Engine Oil Sump | Genuine OEM is fitted on: Caddy Maxi Kombi 2020-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Ateca Style 2016-; Leon ST Stylance 2016-2020.
