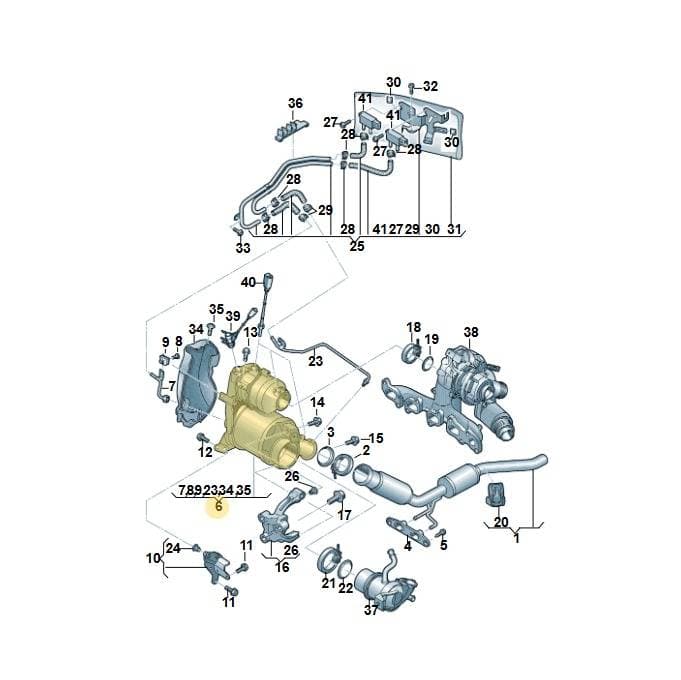

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Diesel Particulate Filter, part number 04L131648SX. This filter captures soot particles from the exhaust gas to reduce emissions. It is located in the exhaust system. This part weighs 10.721 kg and has dimensions of 0.39 m x 0.38 m x 0.215 m. Genuine OEM particulate filters are crucial for precise flow dynamics and effective soot capture, ensuring compliance with emissions standards.
Catalogue entry: FILTER.
Fitted with: 1K0253725 CLAMP, 1K0253115AE SEAL, 04L131670DX FILTER, N90807902 BOLT, N91012502 BOLT, N91264801 BOLT, N10609201 COLLAR NUT, N10604403 BOLT, N10646901 BOLT, N91108301 SCREW, 04L253725B CLAMP, 04L253115A SEAL.
Technical details
- Category
- Exhaust
- Country of origin
- Germany
- Customs (HS) code
- 84213200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 38 × 21.5 cm
- Shipping weight
- 10.72 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CRLB, CRLD, CRMB, CUNA
Equipment codes
- G1A
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
8 vehiclesDiesel Particulate Filter — locate 04L131648SX Volkswagen Diesel Particulate Filter | Exhaust System in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Exh Pipe 5Q0253101AQ
- 1Exh Pipe 5Q0253101AS
- 1Exh Pipe 5Q0253101BA
- 1ARepair Kit 5Q0253692
- 2Clamp 1K0253725
- 3Seal 1K0253115AE
- 4Bracket 1K0253144BC
- 5Bolt N10240003
- 6Filter 04L131648HX
- 6Filter 04L131669JX
- 6Filter 04L131670BX
- 6Filter 04L131670CX
- 6Filter 04L131670DX
- 6Filter 04L131673HX
- 6Filter 04L131673KX
- 6Filter 04L131673LX
- 6Filter 04L131673SX
- 6Filter 04L131673TX
- 6Filter 04L131648RX
- 7Pipe 04L131582B
- 7APipe 04L131582F
- 8Bolt N91042302
- 9Part WHT005842
- 10Bracket 04L131561J
- 10AScrew WHT006765
- 10AScrew WHT006765A
- 11Bolt N90807902
- 12Bolt N91012502
- 13Bolt N10604403
- 14Bolt N10646901
- 15Screw N91108301
- 16Bracket 04L131425A
- 17Screw N10720402
- 18Clamp 04L253725B
- 19Seal 04L253115A
- 21Clamp 04L131455A
- 22Seal 04L131547
- 25Control Line 04L131552CQ
- 25Control Line 04L131552DQ
- 25Control Line 04L131552CM
- 25Control Line 04L131552DC
- 27Screw N91096901
- 28Clamp N10769401
- 29Clamp N90986501
- 29Clamp 3C0131483A
- 30Bracket 06F971842
- 30Terminal 5Q0971842
- 31Sleeve 04L971461AE
Compatible / alternative parts(12)
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Octavia | 2017-2020 | 6 | 1 | D | |
| Audi A3 Sportback | 2016-2020 | 7 | 1 | PR:G0R,G1A | G0R |
| Audi A3 Cabrio | 2016-2020 | 7 | 1 | PR:G0R,G1A | G0R |
| Leon ST Stylance | 2016-2020 | 6 | 1 | CR | LB, |
| golf 2.0 | 2016-2020 | 6 | 1 | G1A | |
| Audi TTS Coupe 2.0 | 2014-2023 | 6 | 1 | ||
| Octavia | 2012-2017 | 6 | 1 | ||
| Leon ST Stylance | 2012-2016 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L131648SX Volkswagen Diesel Particulate Filter | Exhaust System is fitted on: Octavia 2017-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; golf 2.0 2016-2020; Audi TTS Coupe 2.0 2014-2023; Octavia 2012-2017; Leon ST Stylance 2012-2016.
