Product overview

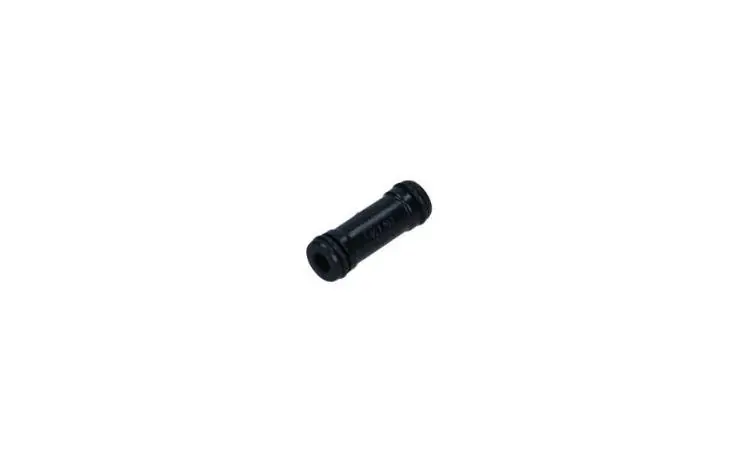

Genuine OEM Volkswagen Crankcase Oil Line, part number 057103688A. This critical component is responsible for transporting oil within the engine's crankcase system. It ensures efficient lubrication and cooling of internal engine parts. Weighing only 0.002 kg and measuring approximately 32mm in length, this genuine OEM oil line provides the correct routing geometry and fluid resistance for reliable engine operation.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.2 × 1.1 × 1.1 cm
- Shipping weight
- 0 kg
Parts diagram & fitment

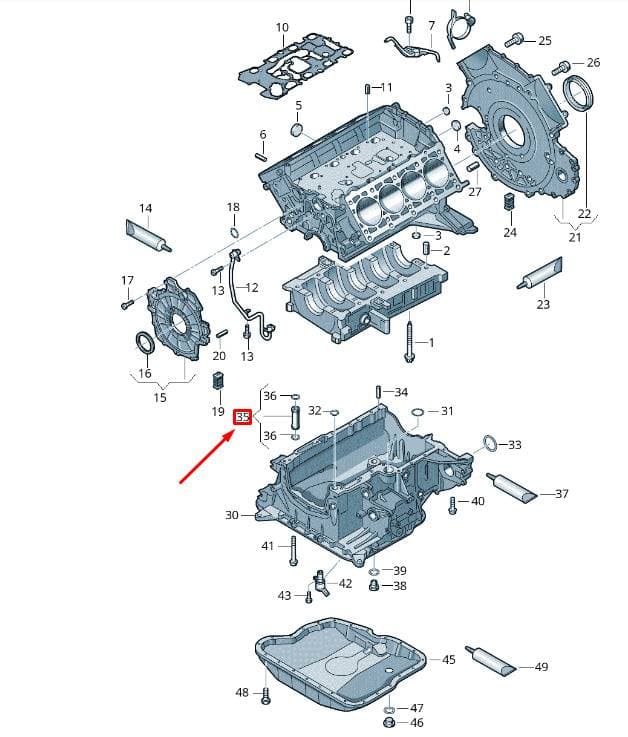

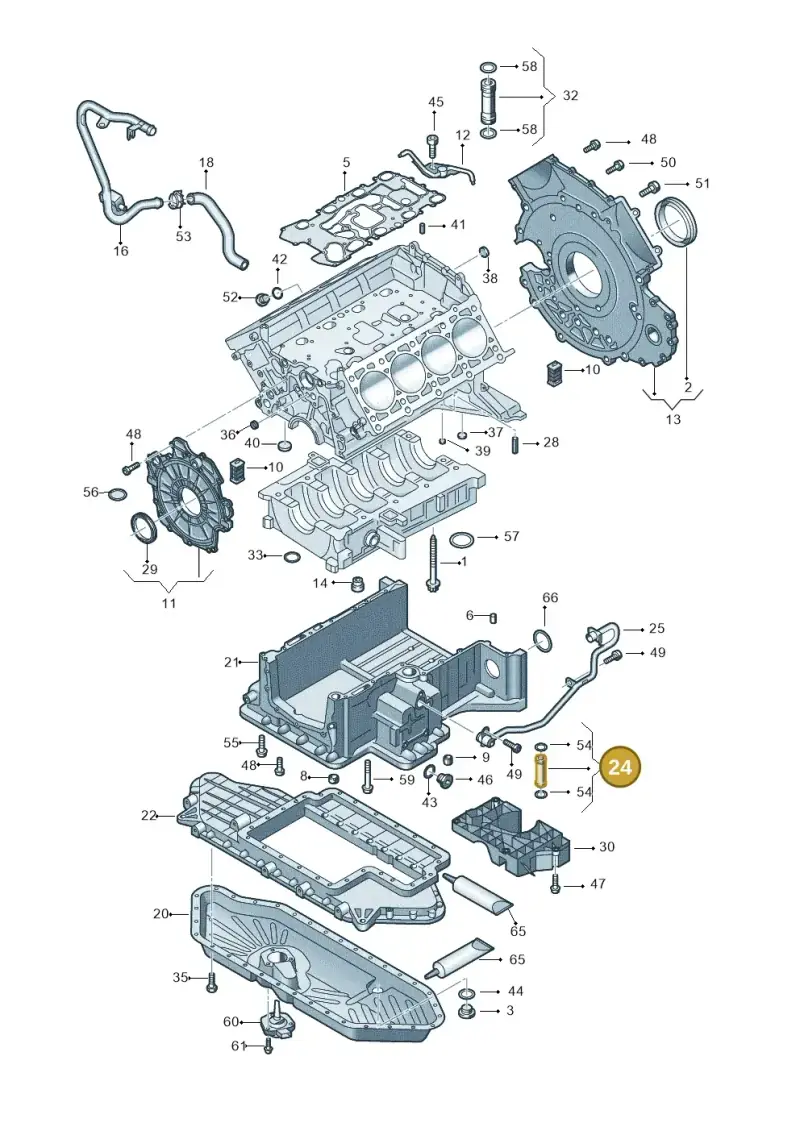

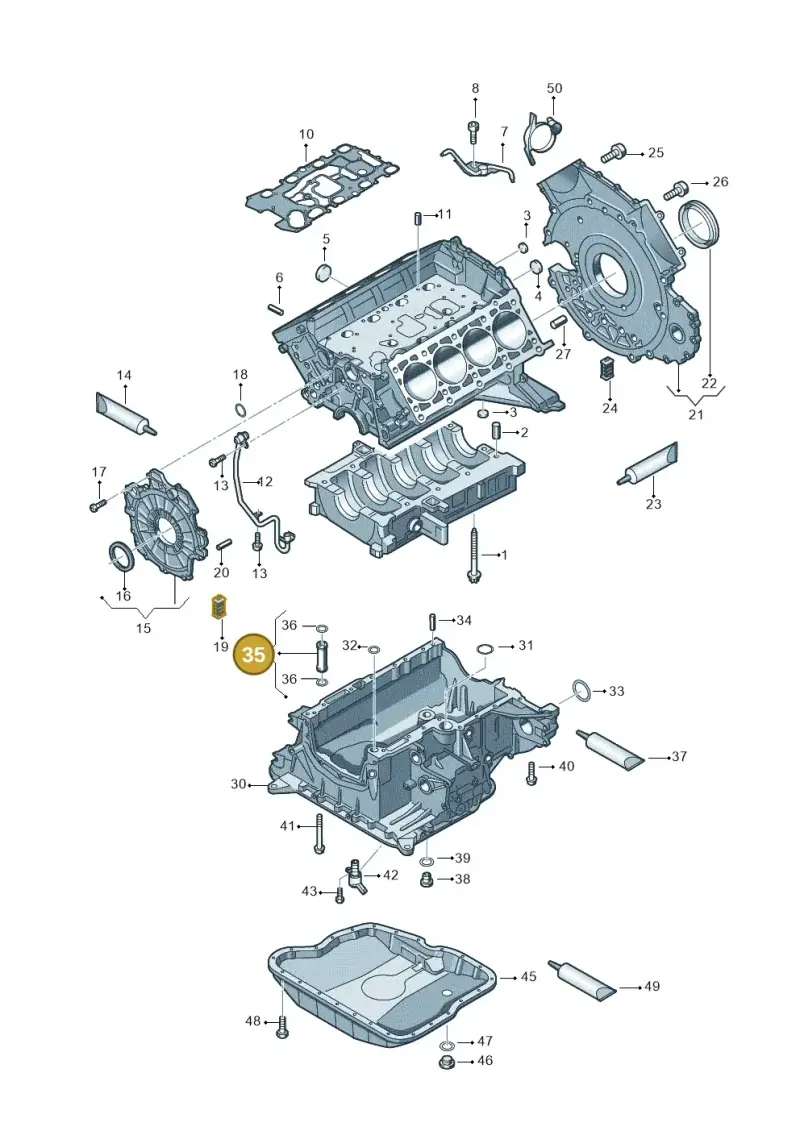

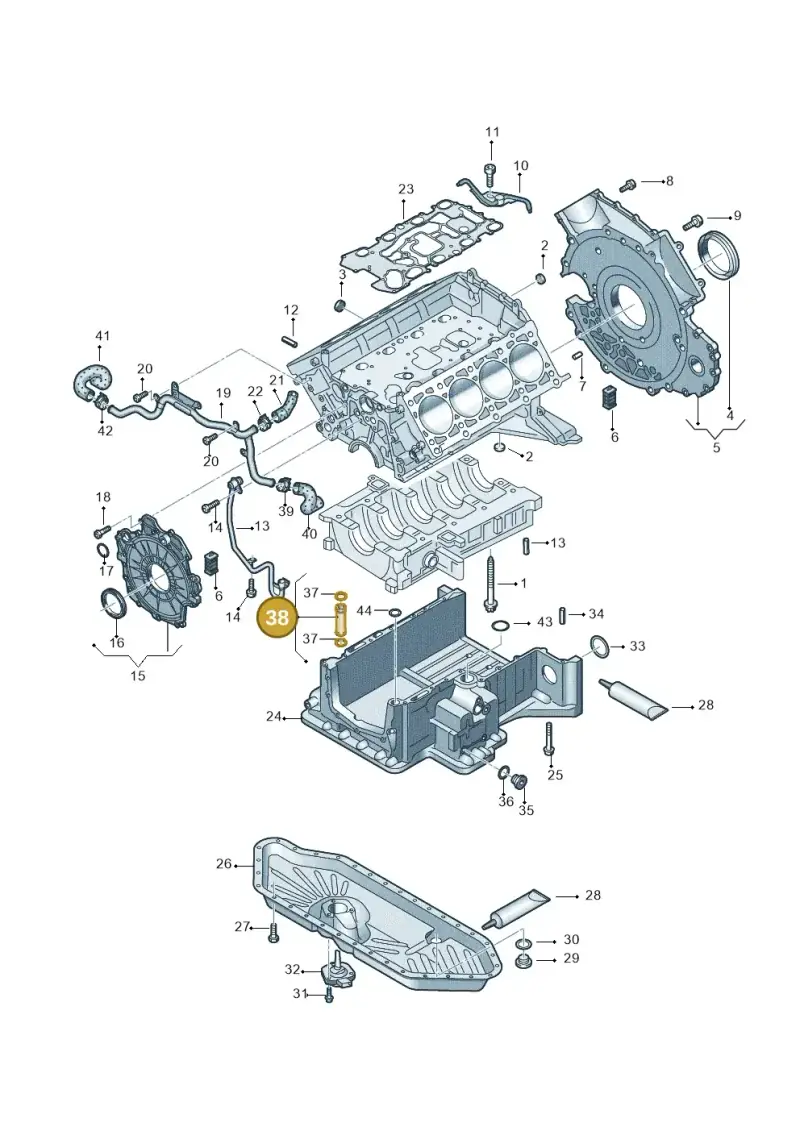

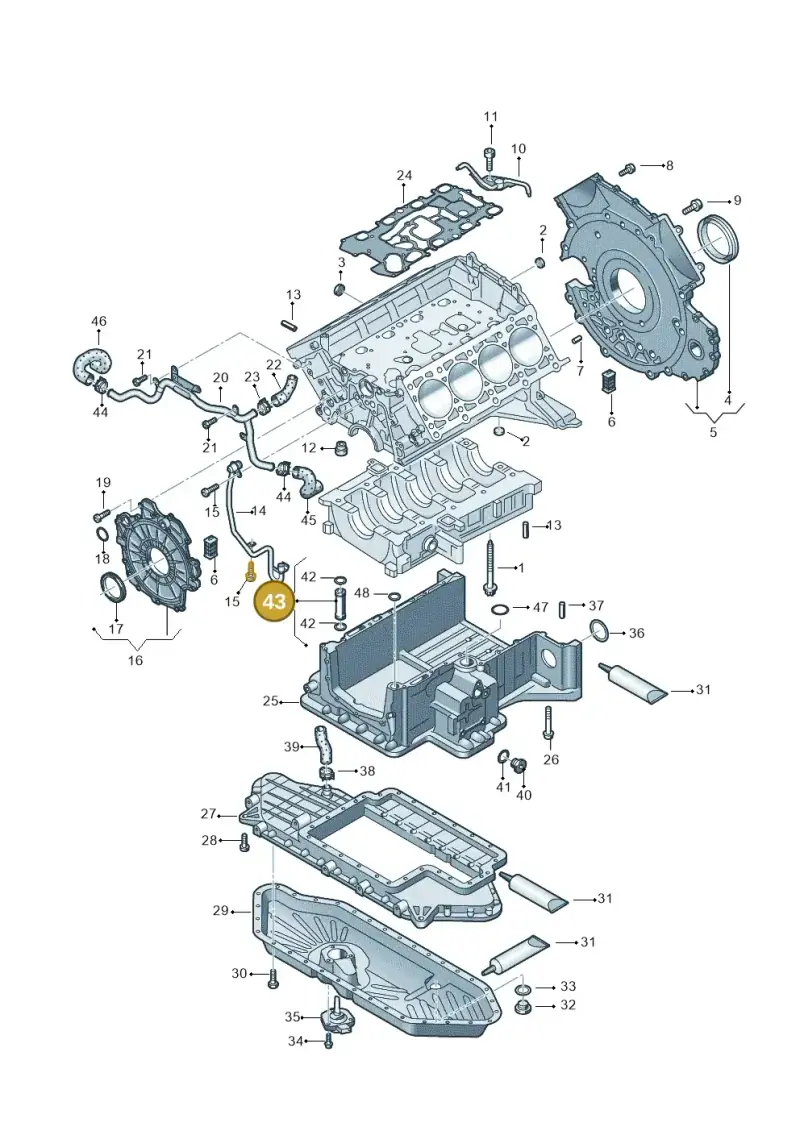

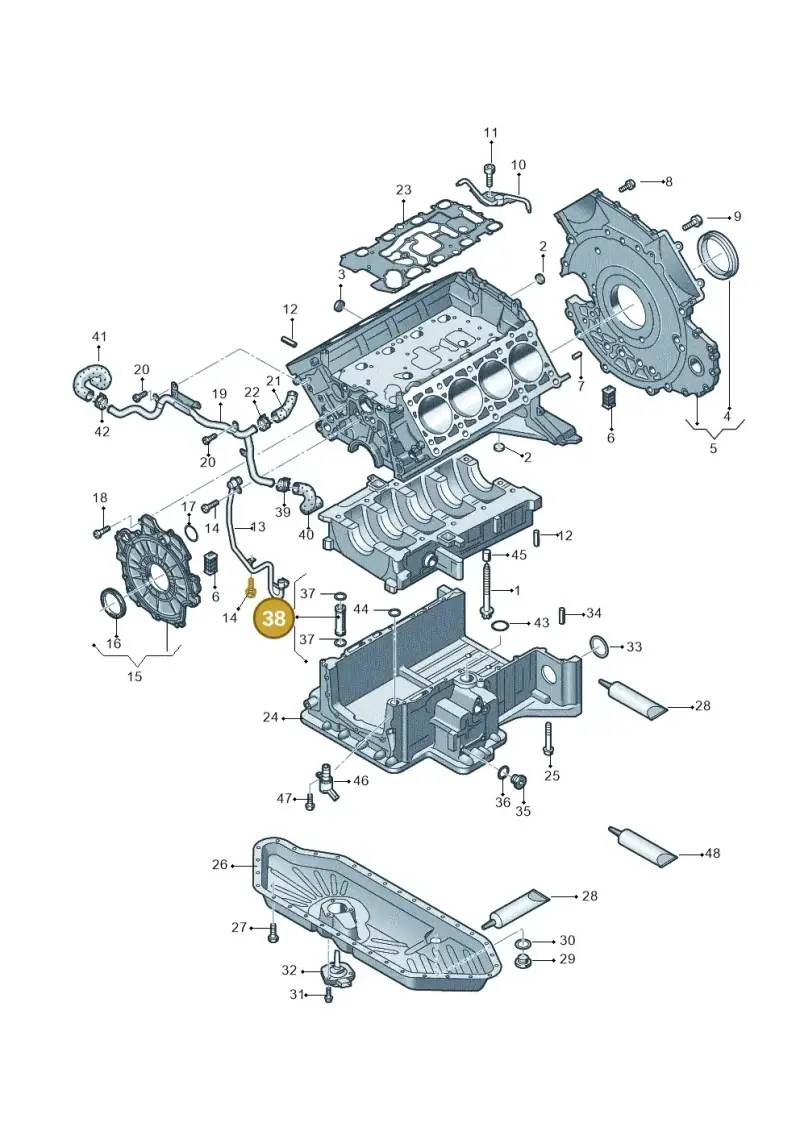

10 vehiclesOil Pipe — locate 057103688A Volkswagen Crankcase Oil Line | Engine Oil Transport in the official exploded view and explore the surrounding assembly.
Superseded by N90956601 — the later replacement part.
Parts in this assembly(43)
- 1Bolt 057103039
- 2Seal 079103051F
- 3Plug 028103059A
- 5Seal 057103121H
- 6Sleeve 022103139B
- 8Sleeve 058103139
- 9Sleeve 059103139A
- 10Seal 057103147A
- 11Flange 057103151J
- 13Flange 057103171H
- 16Pipe 057103227G
- 20Oil Sump 057103602F
- 21Oil Sump 057103603N
- 22Oil Sump 057103607C
- 25Oil Pipe 057103688C
- 28Part 055105277
- 29Seal Washer 077115147A
- 33Seal Ring N90809102
- 35Bolt N01028712
- 36Cover N0119017
- 37Cover N01190710
- 38Cover N0119102
- 40Cover N01191410
- 41Part N0132102
- 42Seal Ring N0138115
- 43Seal Ring N0138326
- 44Seal Ring N0138503
- 45Screw N01470111
- 46Screw N0160293
- 47Screw N10117405
- 48Bolt N10124306
- 49Screw N10170301
- 50Bolt N10156205
- 51Screw N10225802
- 52Screw N90281702
- 53Clamp N90687001
- 54Seal Ring N90740801
- 55Screw N90853903
- 56Seal Ring N90956601
- 57Seal Ring N91008501
- 59Screw N91009401
- 65Part D176501A1
- 66Seal Ring N90322804
Compatible / alternative parts(8)
- Part 058103598D
- Part 057103147A
- Part 058103603
- Part 057103051B
- Part 079103051F
- Part 059103051G
- Part 059103051J
- Part 079103051D
Diagrams & fitment data powered by oemdiagrams.com
057103688A Volkswagen Crankcase Oil Line | Engine Oil Transport is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi Q7 07> 2006-; Audi A8/S8/qu. lang 08> 2007-; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A8L qu. 3.0 TDI 2013-2018; MARINE-MOTOR 02> 2002-; touareg 2010-2012; touareg 2012-2014; Touareg BlueMotion 2014-2018.
