Number 41 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N91009402. This bolt is used to secure various engine and refrigerant system components, ensuring a tight and reliable connection. It is located at position 41 in the diagram. Genuine OEM bolts are manufactured to precise tolerances for secure engine assembly and optimal performance.
Catalogue entry: SCREW M7X105X39 ×9.
Fitted with: 057103601T OIL SUMP, N91008501 SEAL. RING, N90956601 SEAL. RING, N90322804 SEAL. RING, 055105277 spring pin, D176501A1 SEAL, N0138165 seal ring, N90853903 SCREW.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.3 × 1.5 × 1.5 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M7x105x39 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

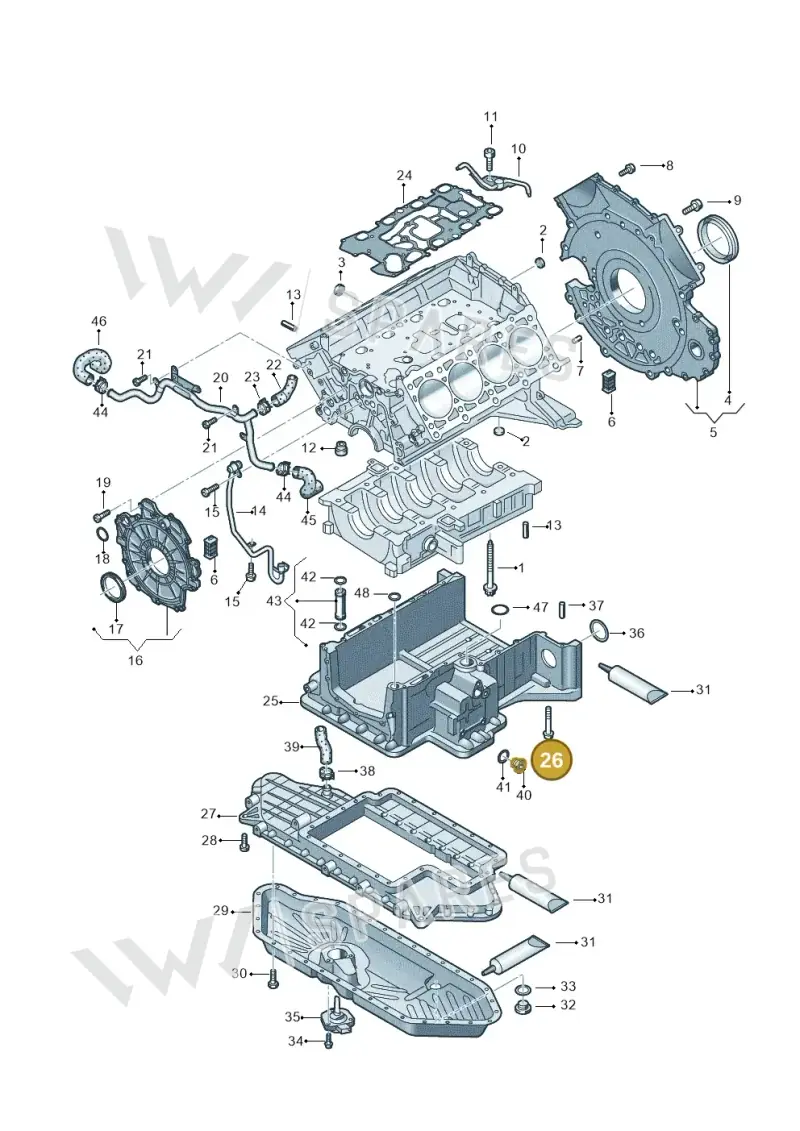

Parts diagram & fitment
26 vehiclesScrew — locate N91009402 Volkswagen Socket Head Bolt | Engine in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly43
- 1Bolt 059103039H
- 2Sleeve 057103139
- 3Cover N0119185
- 4Cover N0119019
- 5Cover N01191410
- 6Part 055105277
- 7Vent 059103158P
- 8Bolt N91054701
- 10Seal 057103121M
- 11Part N10667801
- 12Oil Pipe 057103688F
- 13Screw N10170303
- 14Seal D176501A1
- 15Flange 057103151AA
- 16Seal 057103051
- 17Bolt N10124306
- 18Seal Ring N90895001
- 18Seal Ring N91020001
- 19Seal 057103147B
- 19Seal 057103147A
- 20Part N0132102
- 21Flange 057103171AC
- 21Flange 057103171AG
- 22Seal 057103051B
- 25Bolt N10156206
- 26Screw N91068601
- 27Sleeve 022103139B
- 30Oil Sump 057103601N
- 31Seal Ring N91008501
- 32Seal Ring N90956601
- 33Seal Ring N90322804
- 35Oil Pipe 057103688A
- 36Seal Ring N90740801
- 38Screw N0160293
- 39Seal Ring N0138165
- 40Screw N90853903
- 42Valve 06E115243G
- 43Bolt N10405604
- 45Oil Sump 057103602N
- 46Screw N0160276
- 47Seal Ring N0138157
- 48Bolt N90071102
- 50Cover 057103565
Vehicle fitment table26
Europe (24)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Touareg BlueMotion | 2014-2018 | 41 | 9 | |
| Audi A8L qu. 3.0 TDI | 2013-2018 | 25 | 10 | G1G |
| touareg | 2012-2014 | 41 | 9 | TE5 |
| Cayenne | 2010-2018 | 13 | 3 | |
| phaeton 4motion | 2010-2016 | 41 | 3 | |
| touareg | 2010-2012 | 41 | 3 | TE1 |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 38, 36, 25 | 3 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 25 | 10 | G1G |
| Audi A4 Av. Allroad | 2008-2016 | 38 | 3 | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 38 | 3 | |
| Audi A5 Cabrio 2.0 | 2008-2012 | 38 | 3 | |
| Audi A6 2.7 TDI | 2008-2011 | 38 | 3 | D1 |
| Audi A5/S5 Coupe 08> | 2007- | 38 | 3 | D1W |
| Audi A8/S8/qu. lang 08> | 2007- | 38, 26 | 3 | D1D |
| AUDI A4 08> | 2007- | 38 | 3 | |
| Touareg 08> | 2007- | 41 | 3 | |
| Cayenne | 2007-2010 | 13 | 3 | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 38 | 3 | D1N |
| Audi Q7 07> | 2006- | 38, 25, 36 | 3 | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 38 | 3 | |
| Touareg | 2005-2006 | 41 | F 7 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 38 | 3 | D1 |
| Audi A8/S8/qu. lang | 2003-2007 | 38, 26 | 3 | D1D |
| Phaeton (lang) | 2003-2006 | 41 | F 3 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 38 | 3 | |
| MARINE-MOTOR 02> | 2002- | 18 | 9 |
Diagrams & fitment data powered by oemdiagrams.com
N91009402 Volkswagen Socket Head Bolt | Engine is fitted on: Touareg BlueMotion 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018; touareg 2012-2014; Cayenne 2010-2018; phaeton 4motion 2010-2016; touareg 2010-2012; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Touareg 08> 2007-; Cayenne 2007-2010; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Touareg 2005-2006; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; AUDI A6L "CN"05> 2005-; MARINE-MOTOR 02> 2002-.
