Product overview

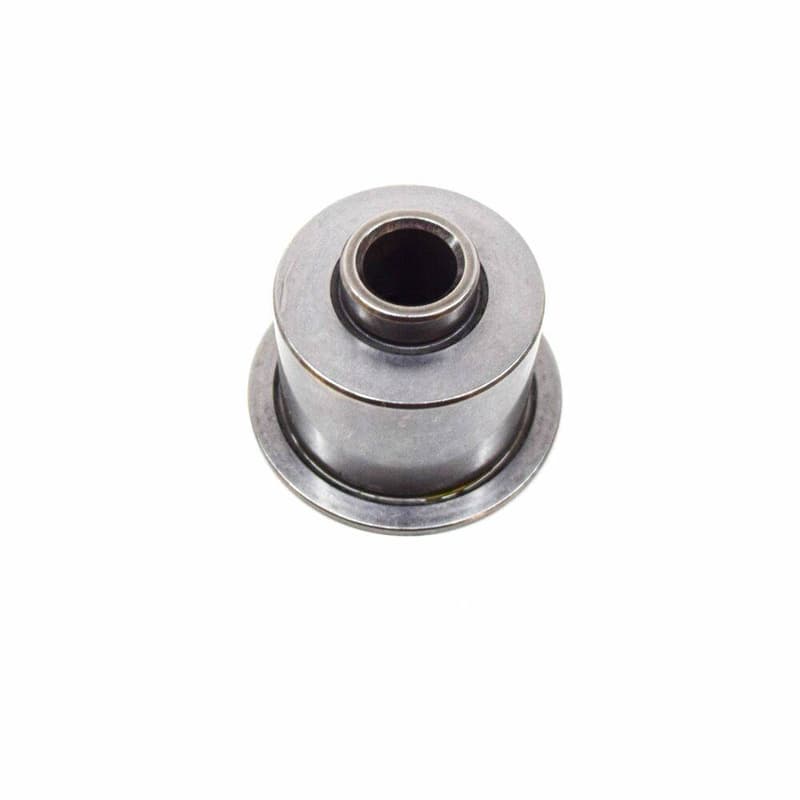

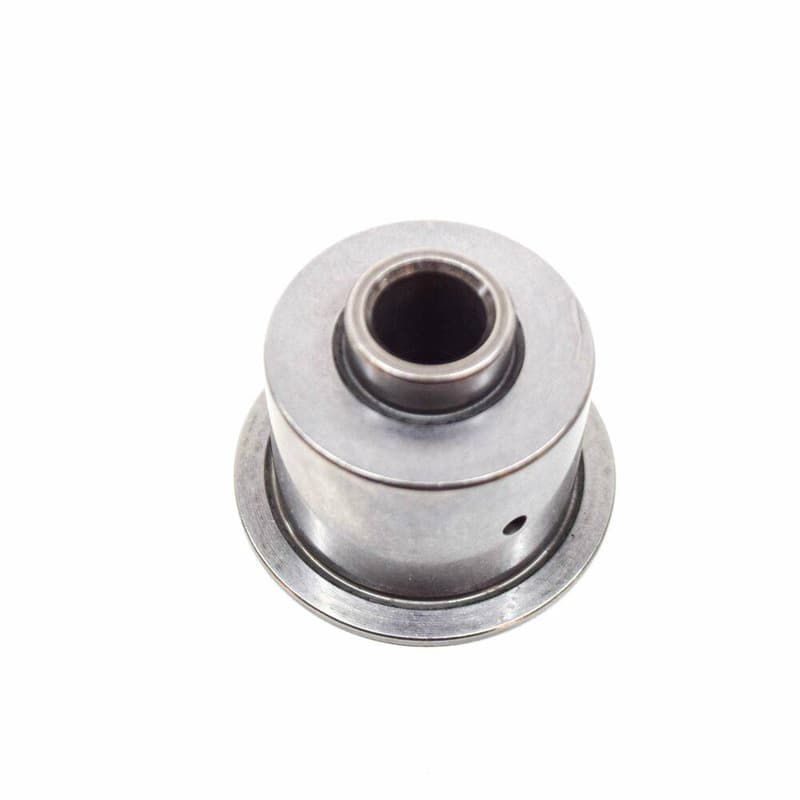

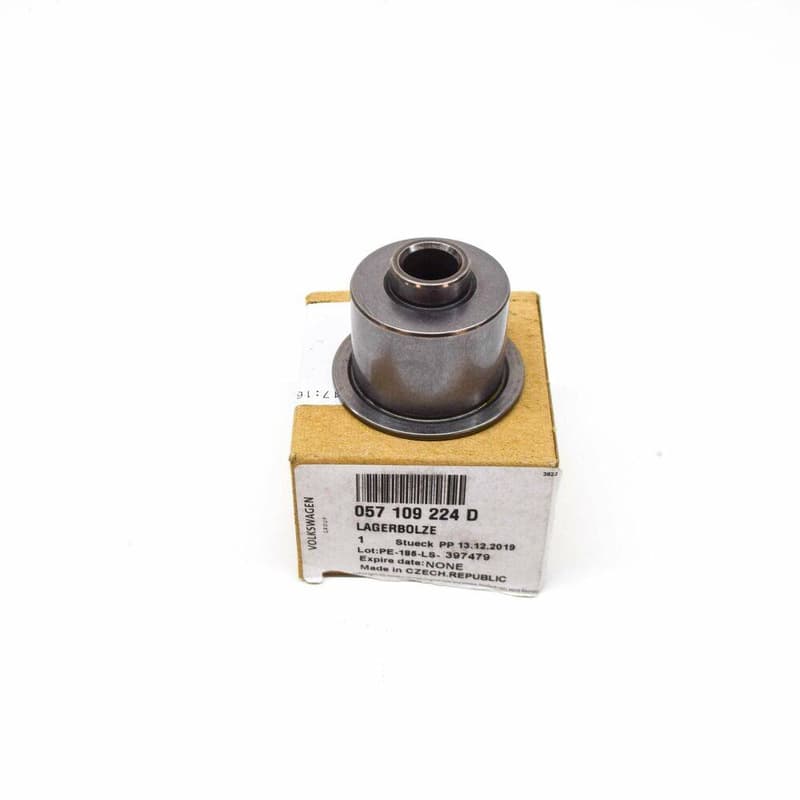

Genuine OEM Audi Engine Timing Chain Bearing Journal, part number 057109224D. This precision-engineered component supports the timing chain within the engine, ensuring its proper alignment and smooth operation. Weighing 0.203 kg, it is manufactured to exact specifications for durability. Using a genuine OEM bearing journal is critical for maintaining accurate engine timing, preventing premature wear on the timing chain, and ensuring the long-term reliability of the engine's valvetrain.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.5 × 3.5 × 3.5 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
30 vehiclesBearing Pin — locate 057109224D Audi Engine Timing Chain Bearing Journal | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 2Seal 079103051E
- 3Seal 079103051J
- 4Seal 079109139A
- 7Tensioner 079109217J
- 8Tensioner 079109218D
- 10Timing Cha 079109229
- 11Timing Cha 079109229K
- 12Timing Cha 079109229L
- 13Timing Cha 079109229D
- 20Washer 079109435G
- 23Tensioner 079109467AE
- 24Rail 079109469AA
- 26Press Spring 059109481
- 27Washer 079109497
- 30Tensioner 079109507G
- 31Rail 079109510E
- 32Rail 079109510F
- 35Rail 079109513C
- 41Chn Sprckt 079109570AN
- 42Chn Sprckt 079109570AD
- 43Chn Sprckt 079109570AP
- 53Bolt N10124306
- 54Bolt N10156205
- 58Bolt N10505404
- 59Screw N10554005
- 60Screw N91119601
- 60Screw N90212702
- 61Seal Ring N90322804
- 64Screw N10248804
- 65Seal Ring N90740801
- 66Bolt N90893202
- 70Seal D176501A1
Compatible / alternative parts(12)
- Part 079109510F
- Part 057109224B
- Part 079109510M
- Part 059109077E
- Part 079109435G
- Part 057109116J
- Part 079109139A
- Part 079109139M
- Part 057109218K
- Part 059109229J
- Part 059109229K
- Part 059109469E
Diagrams & fitment data powered by oemdiagrams.com
057109224D Audi Engine Timing Chain Bearing Journal | OEM is fitted on: Audi A6 Allroad qu. 2000-2005; Audi A4/S4 Cabrio./qu. 2002-2006; Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A8L qu. 3.0 TDI 2013-2018; Phaeton (lang) 2003-2006; Touareg 2003-2005; MARINE-MOTOR 02> 2002-; Touareg 2005-2006; Touareg 08> 2007-; PHAETON 08> 2007-; phaeton 4motion 2008-2010; touareg 2010-2012; phaeton 4motion 2010-2016; touareg 2012-2014; Touareg BlueMotion 2014-2018.
