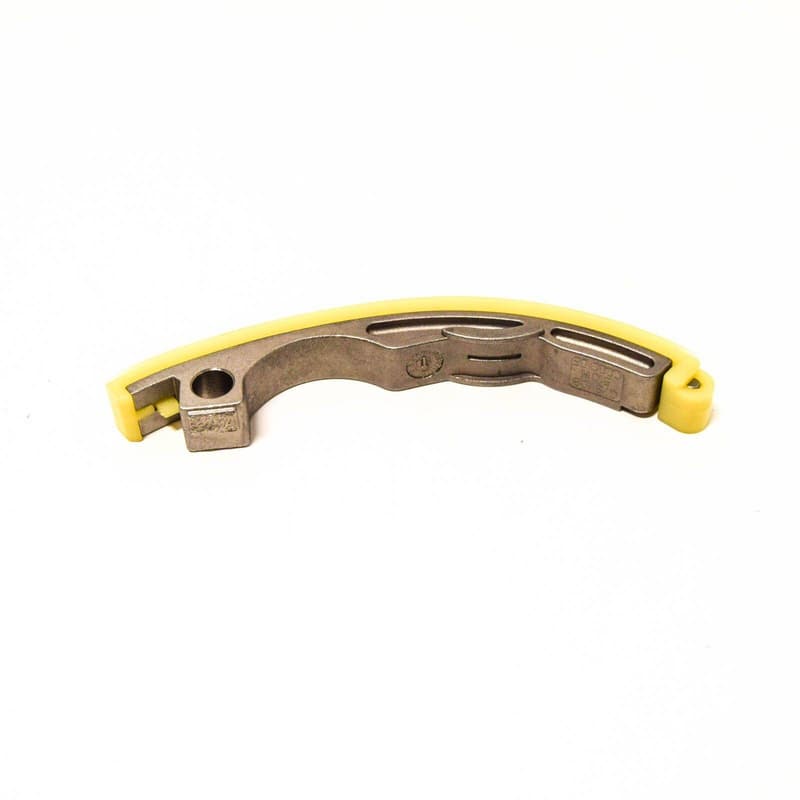

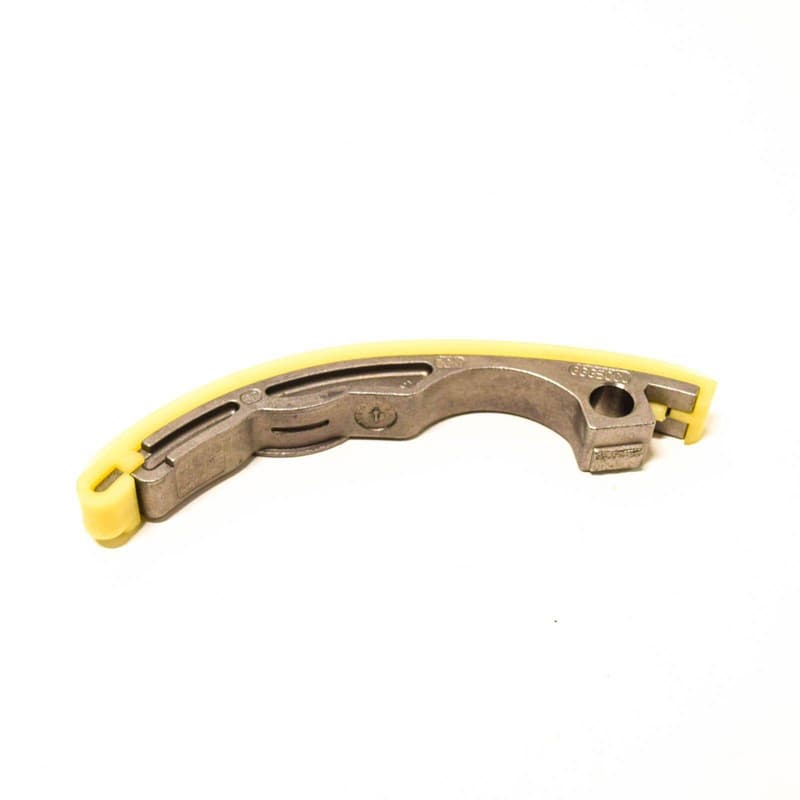

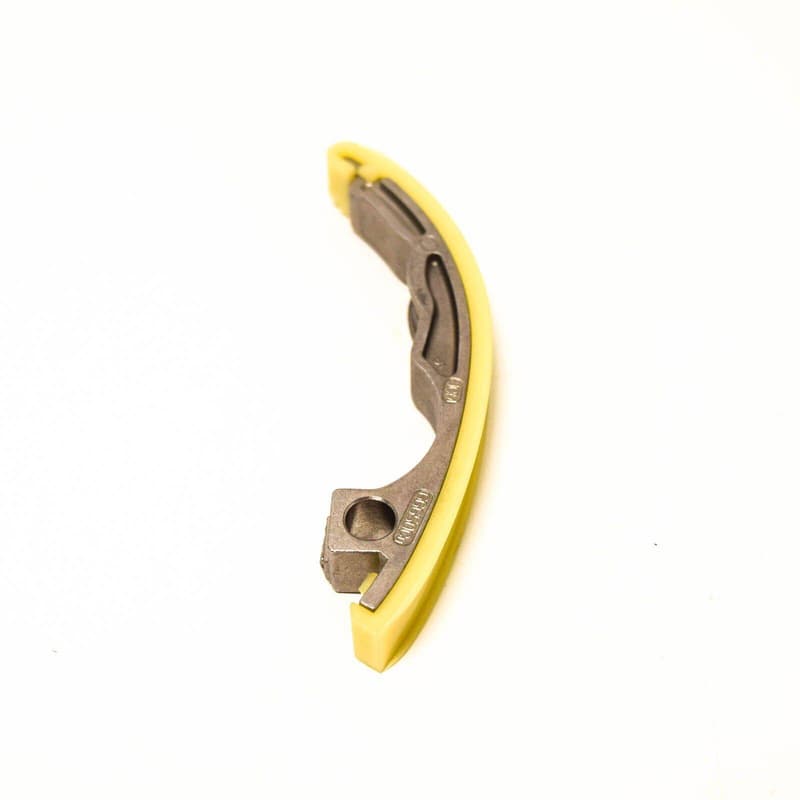

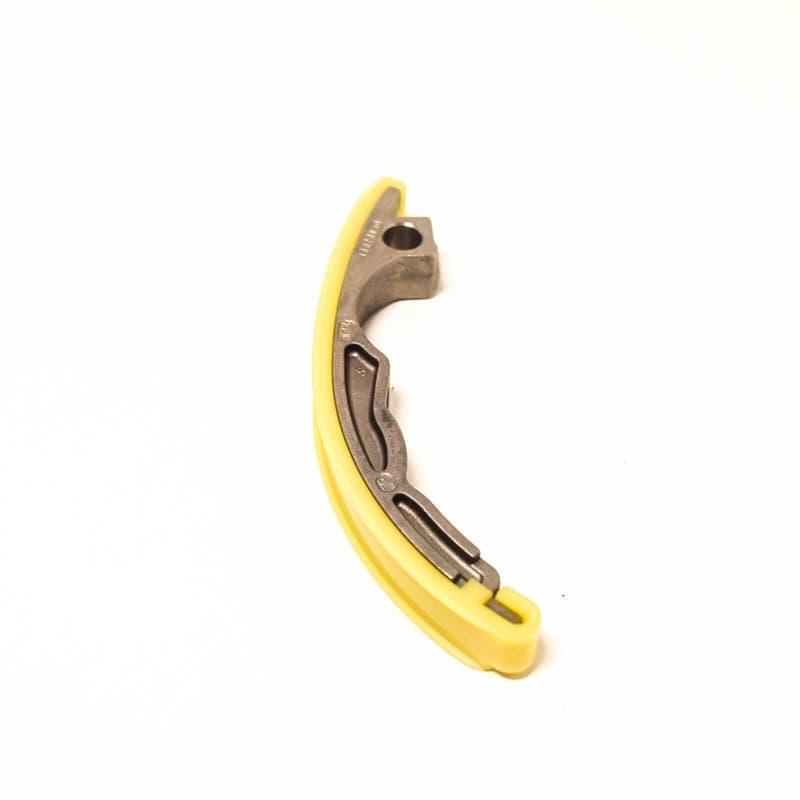

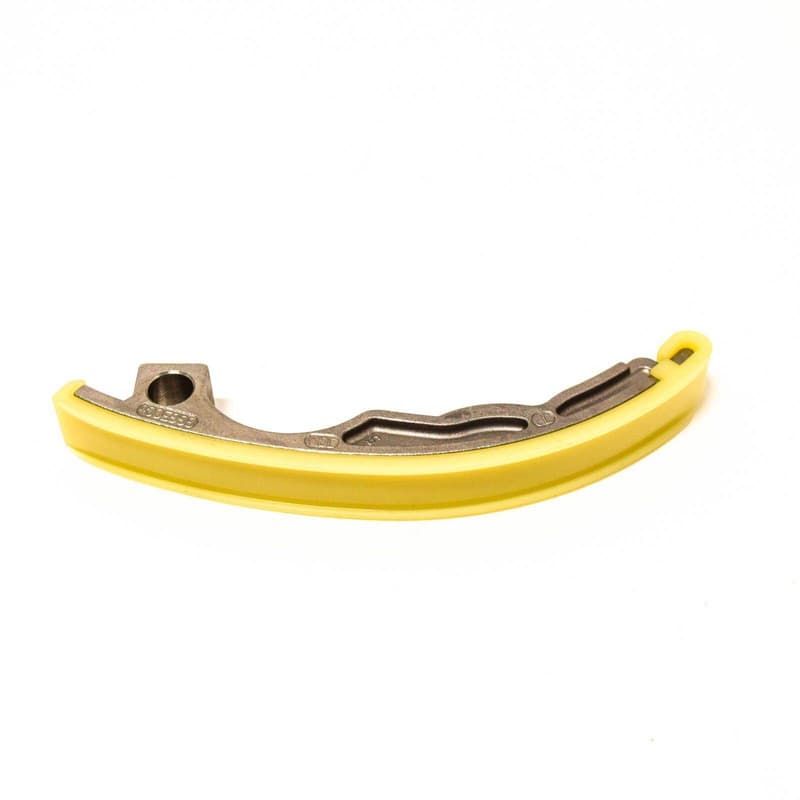

Genuine OEM Audi Timing Chain Guide Rail, part number 079109510M. This component is crucial for the engine's timing system, providing a smooth and controlled path for the timing chain. Its function is to guide the chain, preventing slack and ensuring precise synchronization between the crankshaft and camshafts, which is vital for valve operation. The rail features a durable metal base with a low-friction polymer surface, measuring approximately 0.149 meters in length. Choosing a genuine OEM guide rail ensures exact dimensions, material quality, and resistance to wear, critical for the long-term reliability and performance of the engine's timing mechanism.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.9 × 3.8 × 1.8 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
30 vehiclesGuide Rail — locate 079109510M Audi Timing Chain Guide Rail | Engine Timing in the official exploded view and explore the surrounding assembly.
Parts in this assembly(41)
- 2Seal 079103051E
- 3Seal 079103051J
- 4Seal 079109139A
- 7Tensioner 079109217J
- 8Tensioner 079109218D
- 10Timing Cha 079109229
- 11Timing Cha 079109229K
- 12Timing Cha 079109229L
- 13Timing Cha 079109229D
- 16Plate 079109359BF
- 20Washer 079109435G
- 21Washer WHT000124
- 23Tensioner 079109467AE
- 24Rail 079109469AA
- 25Rail 079109469AD
- 26Press Spring 059109481
- 27Washer 079109497
- 30Tensioner 079109507G
- 31Rail 079109510E
- 33Part 057109224B
- 34Part 057109224D
- 34APart 079109512E
- 35Rail 079109513C
- 37Screw WHT000265
- 39Gear 079109565M
- 40Chn Sprckt 059109077E
- 41Chn Sprckt 079109570AN
- 42Chn Sprckt 079109570AD
- 43Chn Sprckt 079109570AP
- 53Bolt N10124306
- 54Bolt N10156205
- 56Bolt N10451409
- 58Bolt N10505404
- 59Screw N10554005
- 60Screw N90212703
- 60Screw N91119601
- 61Seal Ring N90322804
- 64Screw N10248804
- 65Seal Ring N90740801
- 66Bolt N90893202
- 70Seal D176501A1
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
079109510M Audi Timing Chain Guide Rail | Engine Timing is fitted on: Audi A4/S4 Cabrio./qu. 2002-2006; Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi A4/S4/Av./qu. 05> 2005-; AUDI A6L "CN"05> 2005-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi RS4 Cabrio qu. 08> 2007-; Audi R8 08> 2007-; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; Audi Q7 qu. 3.0 TDI 2009-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A8L qu. 3.0 TDI 2013-2018; Phaeton (lang) 2003-2006; MARINE-MOTOR 02> 2002-; Touareg 2005-2006; Touareg 08> 2007-; PHAETON 08> 2007-; phaeton 4motion 2008-2010; touareg 2010-2012; phaeton 4motion 2010-2016; touareg 2012-2014; Touareg BlueMotion 2014-2018.
