Product overview

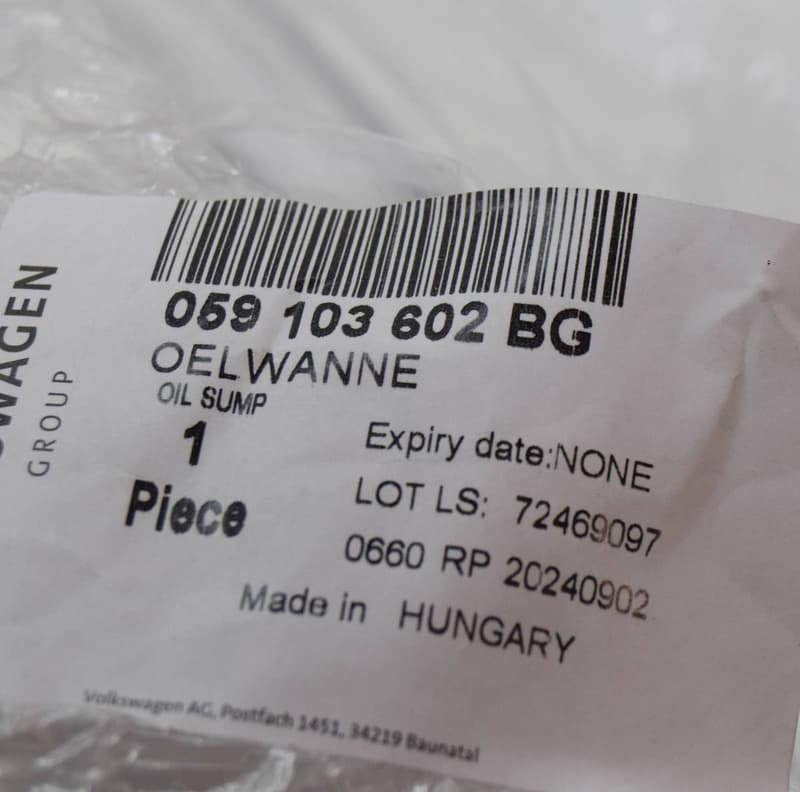

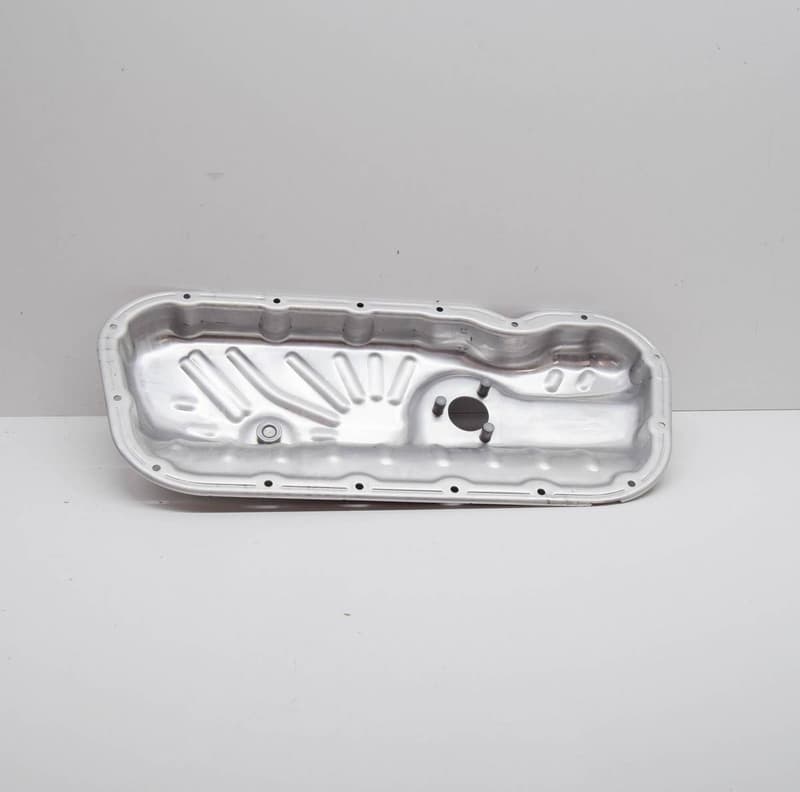

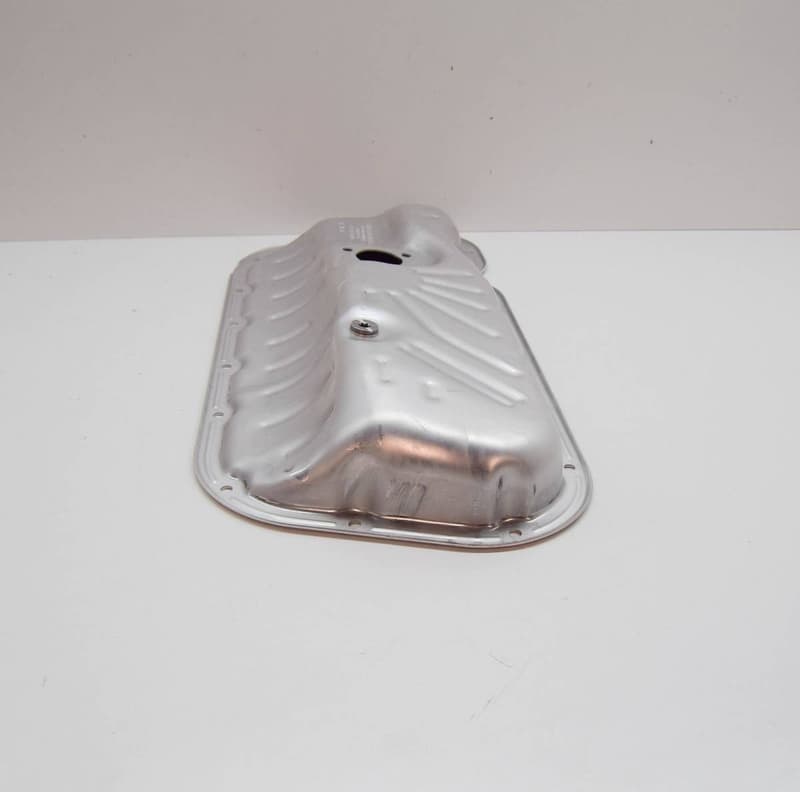

Genuine OEM Audi Lower Engine Oil Pan, part number 059103602BG. This oil pan collects and stores engine oil, ensuring proper lubrication for the engine. It is mounted to the bottom of the engine block. Constructed from durable metal for long-lasting performance and protection against leaks. Genuine OEM oil pans are designed to exact specifications for a perfect fit and optimal oil capacity, crucial for engine health and longevity.
Catalogue entry: OIL SUMP.
Fitted with: 059103602AM OIL SUMP, N10745101 BOLT, D176501A1 SEAL.
Technical details
- Category
- Fluids & Filters
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 55.7 × 24.7 × 9.3 cm
- Shipping weight
- 0.94 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TS8
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesOil Sump-lower Part — locate 059103602BG Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Screw N10170302
- 2Cover 059115423E
- 3Seal Ring N91087401
- 4Thermostat 059115201H
- 5Screw N10554005
- 6Screw N10405702
- 7Pressure 05E906060A
- 7Sensor 06E906054J
- 8Filterelem 059198405D
- 9Cover 059115311D
- 9Cover 059115311F
- 11Oil Filter 059115389AL
- 11Oil Filter 059115389AP
- 12Seal 059115446E
- 13Bolt N10405604
- 14Sensor 079919523H
- 15Seal Ring WHT002287B
- 16Oil Cooler 059117015K
- 17Seal 059117070J
- 17Gasket 059117070K
- 18Bolt N10124309
- 19Bungs 04E115418B
- 19Stud 059115418A
- 20Seal Ring WHT004757
- 21Screw N10473402
- 22Bracket 059131694CN
- 23Tube 059115630CA
- 23Tube 059115630CG
- 24Bolt N91126601
- 25Seal Ring 034115427B
- 26Screw WHT004874
- 27Screw N91196501
- 28Seal Ring N0138326
- 29Seal D176501A1
- 30Seal 059103610J
- 31Part 055105277
- 32Oil Sump 059103603FE
- 33Screw WHT004873
- 34Seal Ring 06M115475
- 35Valve 06M115393D
- 35Valve 06M115393F
- 35Valve 06M115393G
- 36Bolt N10196103
- 37Insert 059103138BM
- 38Bolt N10745101
- 39Oil Pump 059115103CD
- 39Oil Pump 059115103CP
- 40Bolt N10745301
Compatible / alternative parts(2)
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 49, 29 | 1 | |
| audi a6 2.0 | 2018- | 49, 29 | 1 | |
| Audi A7 Sportback | 2018- | 49, 29 | 1 | |
| touareg | 2017-2023 | 13 | 1 | |
| Audi A8L | 2017-2022 | 49, 29 | 1 | |
| Audi Q5 | 2016-2020 | 49, 29 | 1 | |
| Audi A5 Sportback | 2016-2020 | 10, 49, 4, 29 | 1 | TS8 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 10, 4, 29 | 1 | TS8 |
| audi a4 2.0 | 2015-2019 | 10, 49, 4, 29 | 1 | TS8 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 10, 49, 29 | 1 | TS8 |
| Audi A7 Sportback | 2014-2018 | 10, 4 | 1 | TS8 |
| audi a6 qu. 3.0 tdi | 2014-2018 | 10, 4 | 1 | TS8 |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 10, 4 | 1 | TS8 |
Diagrams & fitment data powered by oemdiagrams.com
059103602BG Audi Engine Oil Pan | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018.
