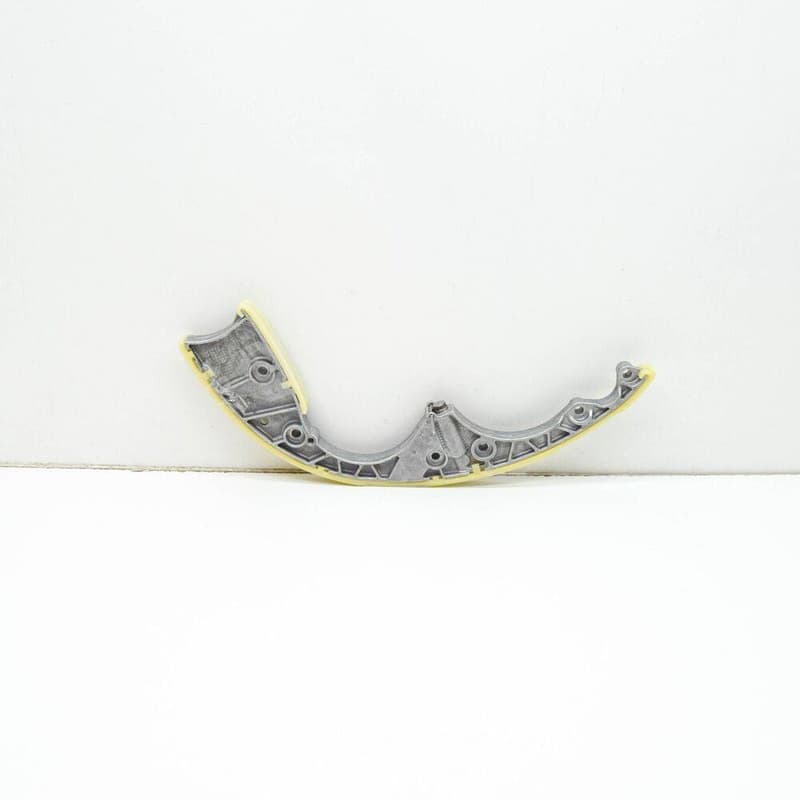

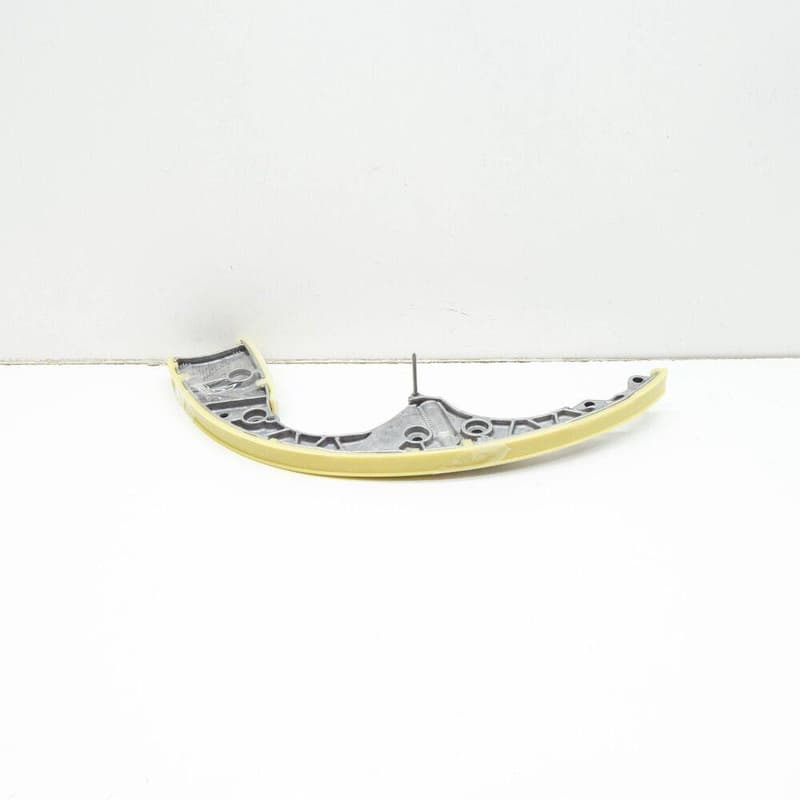

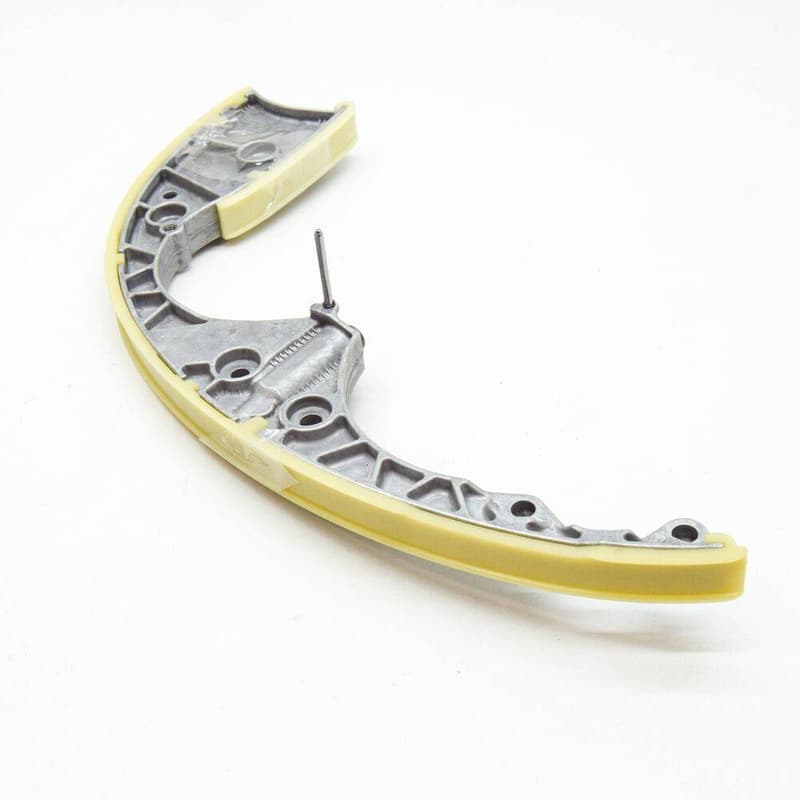

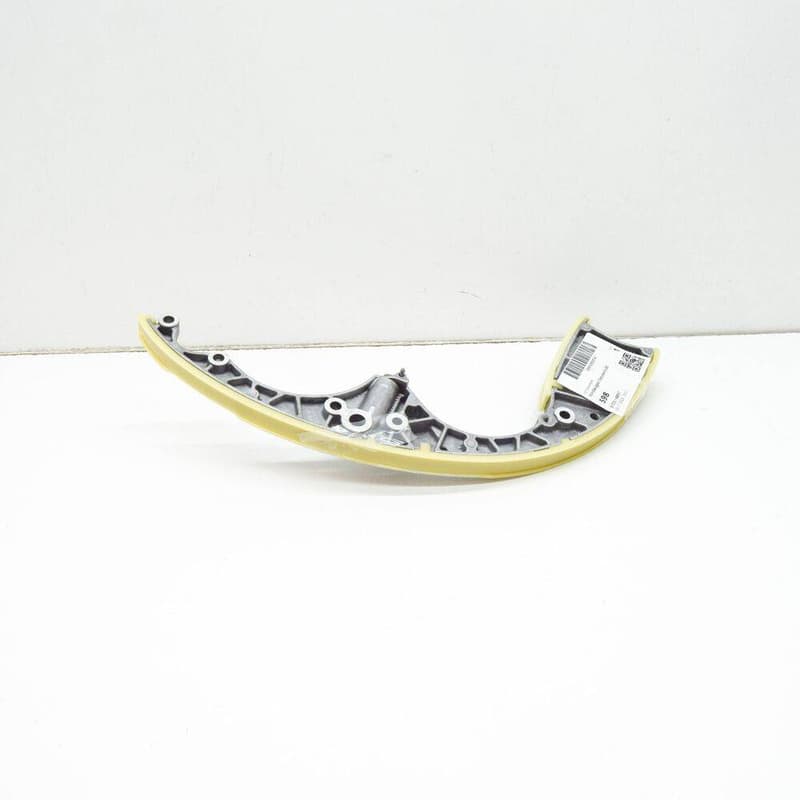

Genuine OEM Audi Engine Timing Chain Clamp, part number 059109507AF. This critical component is designed to secure and guide the engine's timing chain, maintaining its correct path and tension within the timing system. It plays a vital role in ensuring precise valve timing and overall engine operation. Weighing 0.274 kg and measuring 0.37 m in length, this part is engineered to exact specifications. Opting for a genuine OEM chain clamp guarantees the correct material composition and dimensional accuracy, which are crucial for the long-term reliability and quiet operation of the engine's timing mechanism.

Technical details

Category
Belts, Chains & Tensioners
Country of origin
Germany
Customs (HS) code
84099900
Manufacturer
Audi
Product Type
Genuine new auto parts
Shipping size (L × W × H)
37 × 13.8 × 1.7 cm
Shipping weight
0.27 kg

Parts diagram & fitment

2 vehicles

Chain Tensioner — locate 059109507AF Audi Engine Timing Chain Clamp | Genuine OEM in the official exploded view and explore the surrounding assembly.

Superseded by 059109467AJ — the later replacement part.

Parts in this assembly(26)
  • 1Timing Cha 059109252
  • 2Bolt N90893202
  • 3Chn Sprckt 059109570C
  • 4Seatrunner 059109469N
  • 5Screw N91048802
  • 6Part 059109426F
  • 7Seatrunner 059109513C
  • 8Press Spring 059109481
  • 9Tensioner 059109507R
  • 10Bolt N10124306
  • 11Chn Sprckt 059103333F
  • 12Seatrunner 059109514C
  • 13Part 059109426G
  • 14Chn Sprckt 059109116A
  • 15Screw N91052201
  • 16Seatrunner 059109509C
  • 18Seatrunner 059109510F
  • 19Tensioner 059109467AJ
  • 19Tensioner 059109467AL
  • 19Tensioner 059109467T
  • 20Timing Cha 059109229AA
  • 21Bolt WHT005189
  • 22Part 059109569L
  • 22Part 059109569S
  • 22Part 059109569F
  • 25Bush 059109135A
Compatible / alternative parts(12)
  • Part 059109229AA
  • Part 059109229S
  • Part 059109252
  • Part 059109252A
  • Part 059109467AL
  • Part 059109467T
  • Part 059109469N
  • Part 059109509C
  • Part 059109510F
  • Part 059109513C
  • Part 059109514C
  • Part 059109426F

Diagrams & fitment data powered by oemdiagrams.com

059109507AF Audi Engine Timing Chain Clamp | Genuine OEM is fitted on: Audi A7 Sportback 2010-2015; audi a4 av. 2.0 tdi 2011-2015.
