Product overview

Genuine OEM Audi guide rail, part number 05A109510B. This guide rail is a critical component of the engine timing chain assembly, ensuring the chain remains properly tensioned and aligned during operation. It is located within the timing drive system. Genuine OEM parts are essential for timing components to provide the exact material hardness and surface finish required for long-term, low-friction service life.

Technical details

Category
Belts, Chains & Tensioners
Customs (HS) code
87089997
Manufacturer
Audi
Product Type
Genuine new auto parts
Shipping size (L × W × H)
14 × 3.6 × 1.7 cm
Shipping weight
0.07 kg

Parts diagram & fitment

2 vehicles

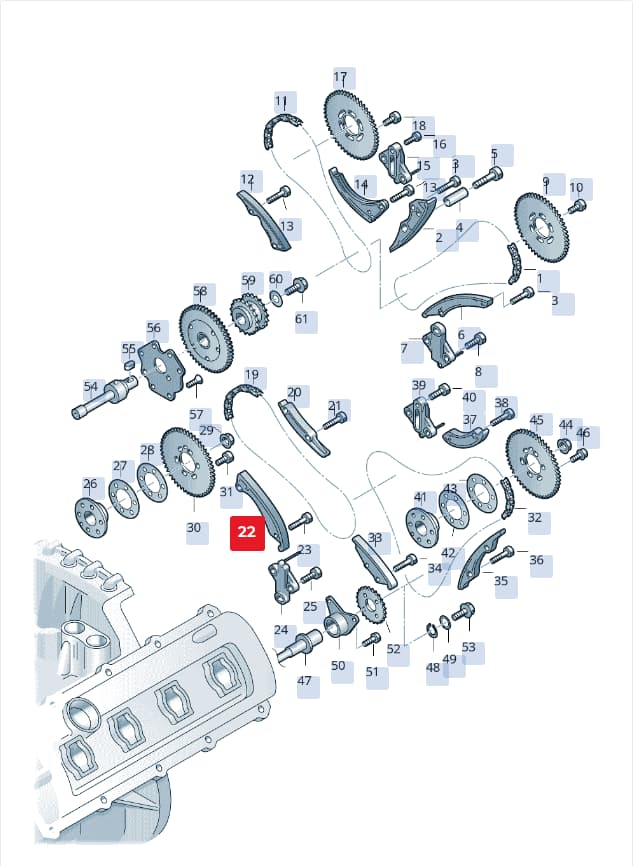

Guide Rail — locate 05A109510B Audi Guide Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.

Parts in this assembly(38)
  • 1Timing Cha 05A109229
  • 2Seatrunner 05A109201A
  • 3Screw WHT000265
  • 4Sleeve 05A103826
  • 5Screw N91162001
  • 6Rail 05A109508B
  • 7Tensioner 05A109217A
  • 8Bolt N91071701
  • 9Chn Sprckt 05A109571
  • 10Screw N91052201
  • 12Seatrunner 05A109203A
  • 14Rail 05A109509B
  • 15Tensioner 05A109255A
  • 19Timing Cha 05A109229A
  • 20Rail 05A109469A
  • 26Flange 05A130141A
  • 27Plate 05A127419
  • 28Plate 05A127419A
  • 29Collar Nut WHT002244
  • 30Chn Sprckt 05A109116
  • 33Seatrunner 05A109513A
  • 35Seatrunner 05A109514A
  • 37Rail 05A109517B
  • 47Shaft 05A109341
  • 48Press Spring 059109481
  • 49Ring N90015401
  • 50Bush 05A109226
  • 51Bolt N10124306
  • 52Chn Sprckt 05A109570
  • 53Bolt N10573001
  • 53Bolt N90893202
  • 54Shaft 05A109296
  • 55Part N10582801
  • 56Cover 05A109167A
  • 57Bolt N10456004
  • 58Wheel 05A109564B
  • 59Chn Sprckt 05A109077
  • 60Washer N90179704
Compatible / alternative parts(12)
  • Part 05A109469A
  • Part 05A109203A
  • Part 05A109201A
  • Part 05A109229
  • Part 05A109229A
  • Part 05A109514A
  • Part 05A109509B
  • Part 05A109217A
  • Part 05A109255A
  • Part 05A109508B
  • Part 05A109513A
  • Part 05A109517B

Diagrams & fitment data powered by oemdiagrams.com

05A109510B Audi Guide Rail | Genuine OEM is fitted on: Audi Q7 07> 2006-; Audi Q7 qu. 3.0 TDI 2009-2015.
