Product overview

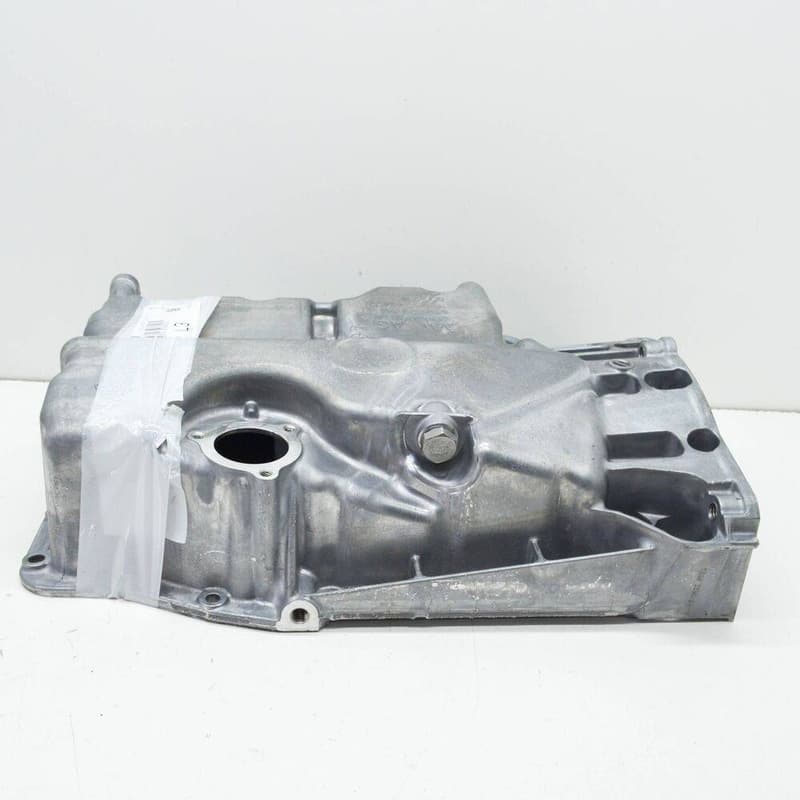

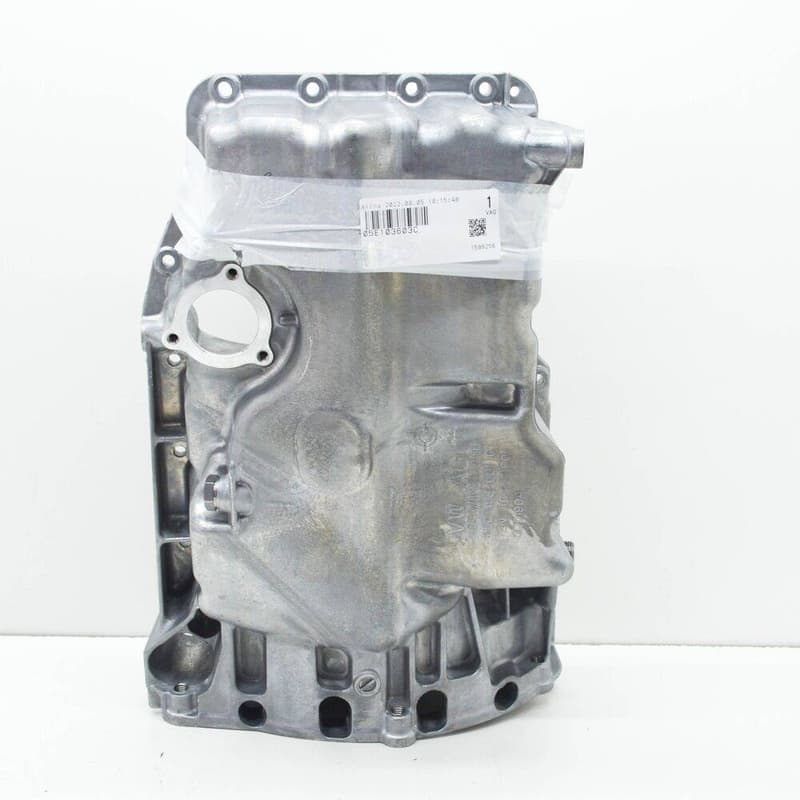

Genuine OEM Volkswagen Engine Oil Sump, part number 05E103603C. This critical engine component is designed to collect and store the engine's lubricating oil, acting as a reservoir for the oil pump. It is typically located at the bottom of the engine block. Weighing approximately 2.93 kg, it is constructed from durable materials to withstand engine heat and vibrations. Choosing a genuine OEM oil sump ensures an exact fit, proper sealing, and the correct internal baffling to maintain oil supply under all operating conditions, preventing oil starvation and potential engine damage.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42 × 29 × 13 cm
- Shipping weight
- 2.93 kg
Parts diagram & fitment
34 vehiclesEngine Oil Sump — locate 05E103603C Volkswagen Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 2Sleeve 03C103143
- 2Sleeve 04E103143A
- 3Bolt N90813202
- 3Bolt N91101401
- 4Cover N0119173
- 4Bolt N91096701
- 5Valve 06E115243H
- 6Cover N0119098
- 7Cover N0119019
- 8Flange 04C103170H
- 8Flange 05E103170
- 8Cover N0119096
- 9Part 026103139
- 9Bolt N10653301
- 10Sender 04C906433G
- 10Part 04E103170Q
- 10ARepair Kit 5C0998152
- 12Part N0432072
- 16Seal D176501A1
- 17Cover 04E103602H
- 18Seal Ring N0138158
- 18Plug N90288901
- 19Oel Sensor 04C907660A
- 20Seal Ring 038103196B
- 20Collar Nut N01508210
- 21Bolt N10622901
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 04E103601AC
- 23Oil Sump 04E103601AG
- 24Lock 04E103623D
- 25Vent 04E103157Q
- 26Separator 04E103464AD
- 26Separator 04E103464BH
- 27Lock 04E103623N
- 27Lock 04E103623T
- 27Cover 04E103729A
- 28Separator 04C103464L
- 28Vent 04E103157E
- 29Bolt N10124309
- 29Screw N91099101
- 30Seal 04C103161D
- 30Bungs 04E103033D
- 31Bungs 04E103037
- 31Bungs 04E103037D
- 31Flange 04E103153B
- 32Screw N10682501
- 33Seal 04C103085B
Compatible / alternative parts(12)
- Part 058103598D
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
- Part D176501A1
- Part D176600A1
- Part D176600M1
- Part DCN176501Z1
Diagrams & fitment data powered by oemdiagrams.com
05E103603C Volkswagen Engine Oil Sump | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; T-Roc convertible 1.5 2019-2024; Caddy Maxi Kombi 2020-2024; Multivan 2021-; Taigo 2021-2024; T-Cross 1,0 2018-2024; Golf Sportsvan 1.6 2014-2020; Passat saloon 2014-2024; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Touran 2,0 BlueMotion 2015-2024; Tiguan 2.0 4Motion 2016-2024; Leon style 2019-; Formentor TSI CUPRA 2020-; Arona FR 2017-; Tarraco FR 2018-2024; Leon ST Stylance 2016-2020; Ibiza FR 2017-; Ateca Style 2016-; fabia 2021-; Kamiq 2019-; Octavia 2019-2024; Kodiaq 2016-2024; Octavia 2017-2020; Karoq 2017-2022; Superb Combi 2015-2024; Audi A1 sportback 1.0 2018-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi Q2 2.0 TDI 2016-2018; Audi A3 Sportback 2016-2020.
