Product overview

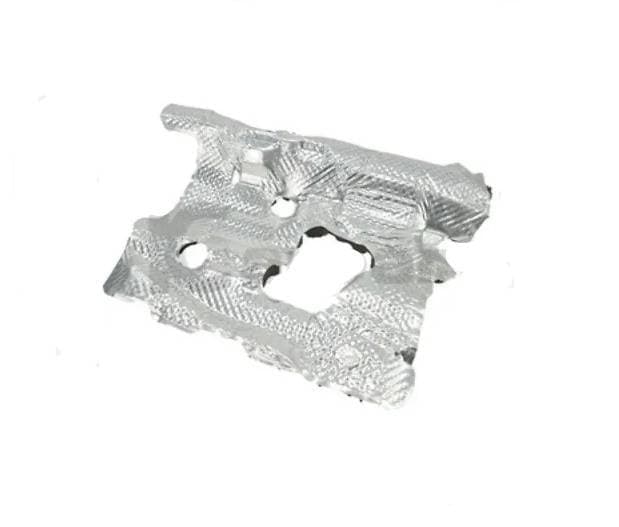

Genuine OEM Volkswagen Engine Block Heat Shield, part number 05L103954H. This component is designed to protect sensitive engine parts from excessive heat, contributing to their longevity and reliable operation. It is positioned at the rear of the engine block. Made from durable, heat-resistant material and weighing approximately 0.3 kg, this shield ensures effective thermal management within the engine bay.
Technical details
- Category
- Engine
- Customs (HS) code
- 40169957
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37 × 27.5 × 7 cm
- Shipping weight
- 0.3 kg
Parts diagram & fitment

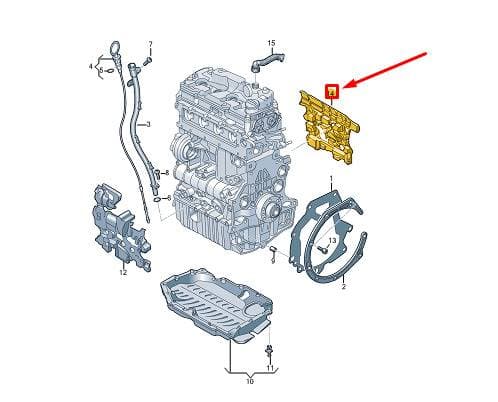

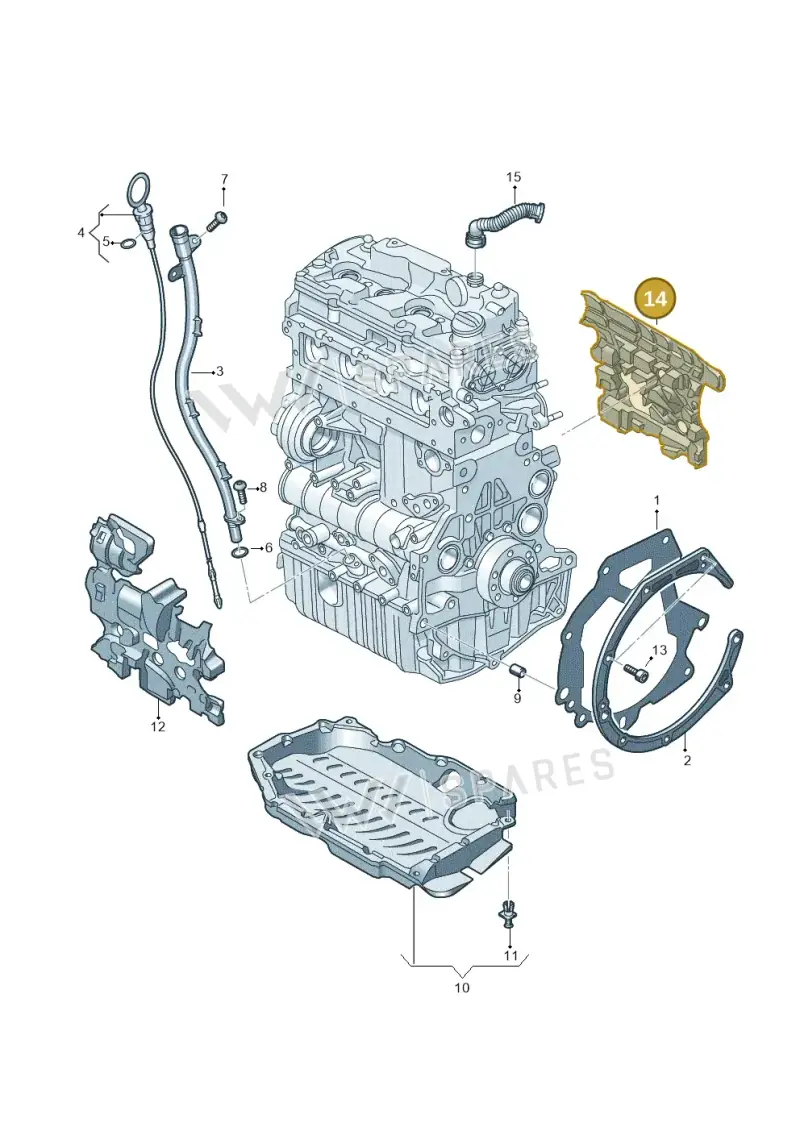

12 vehiclesDamping — locate 05L103954H Volkswagen Engine Block Heat Shield | Rear in the official exploded view and explore the surrounding assembly.
Superseded by 05L103954R — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(17)
- 1Cover 03N103647
- 2Spacer Pl 0CW103551A
- 2Spacer Pl 0GC103551A
- 3Tube 05L103634A
- 4Oil Dipsti 05L115611
- 5Seal Ring WHT001969
- 6Seal Ring N90043201
- 7Bolt N10451405
- 9Sleeve 01E301153H
- 9Sleeve 022103139B
- 10Cover 05L103660
- 11Spring Rivet 03L863788A
- 12Insulation 05L103954E
- 12Insulation 05L103954G
- 13Screw N90903902
- 14Insulation 05L103954P
- 15Hose 05L103493A
Compatible / alternative parts(9)
Diagrams & fitment data powered by oemdiagrams.com
05L103954H Volkswagen Engine Block Heat Shield | Rear is fitted on: Golf 2.0 BlueMotion 2019-2024; Passat saloon 2014-2024; Arteon 2017-2023; Touran 2,0 BlueMotion 2015-2024; Tiguan 2.0 4Motion 2016-2024; Octavia 2019-2024; Kodiaq 2016-2024; Superb Combi 2015-2024; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Leon style 2019-; Tarraco FR 2018-2024.
