Product overview

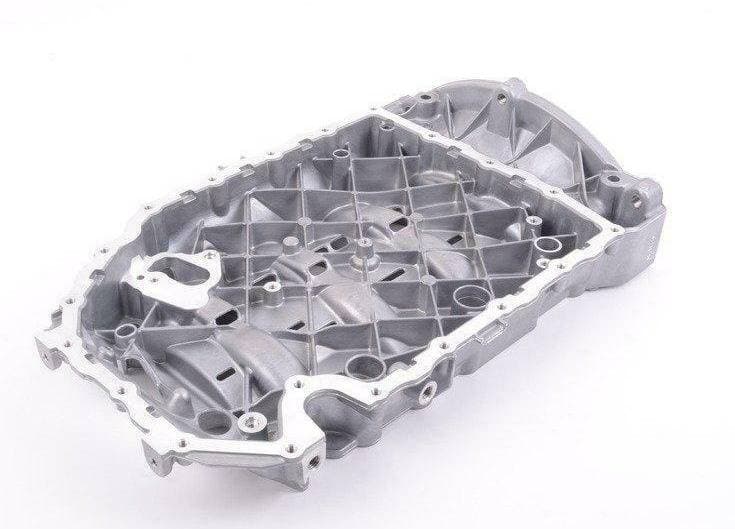

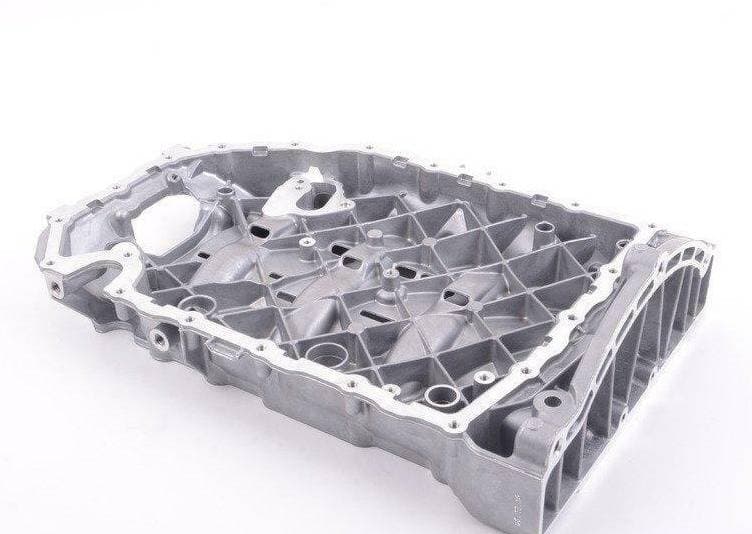

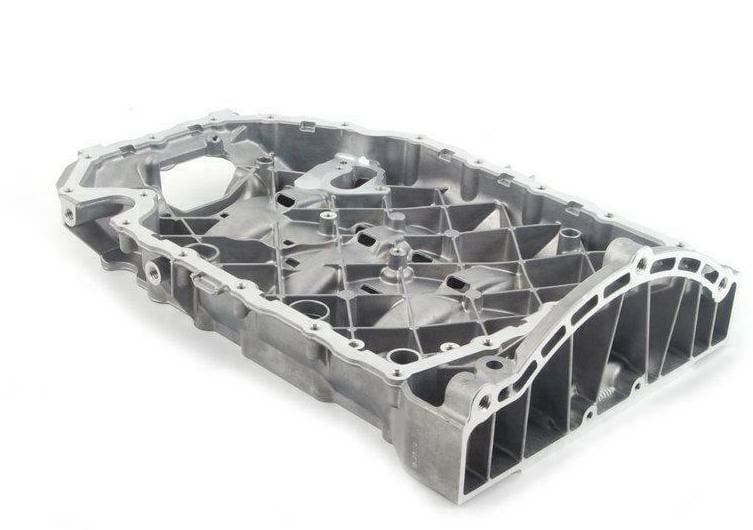

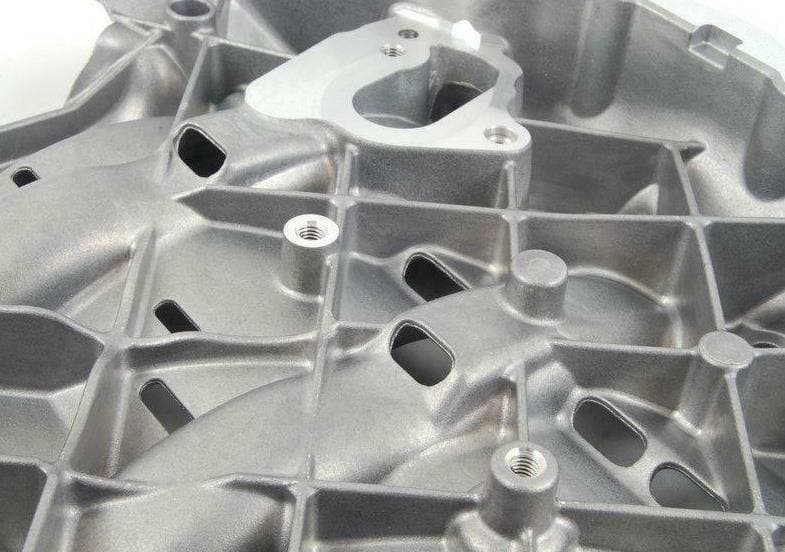

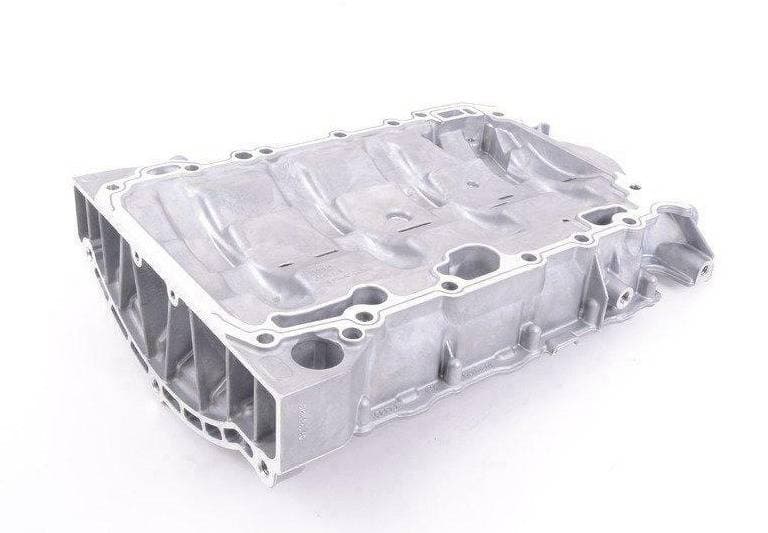

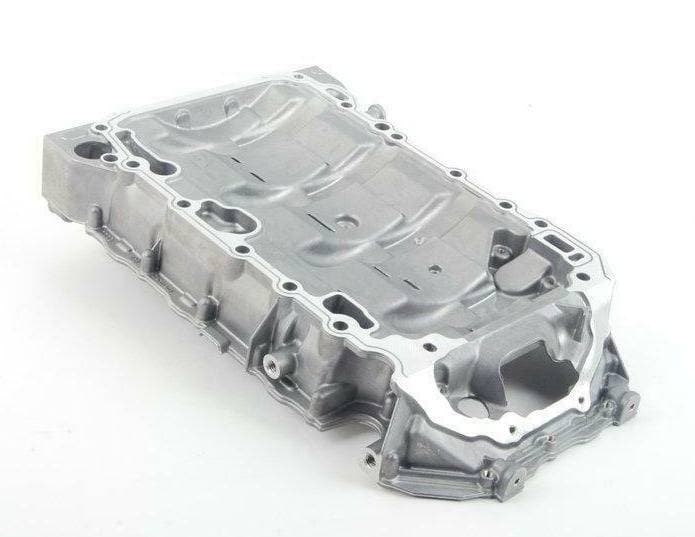

Genuine OEM Volkswagen Engine Oil Sump Upper Part, part number 06J103603BD. This robust component forms the upper section of the engine's oil pan, often integrating structural elements and providing a critical sealing surface for the lower oil sump. It is positioned directly beneath the engine block. Constructed from durable cast aluminum, this part weighs approximately 3.174 kg and measures 0.445 m in length. Choosing a genuine OEM upper oil sump ensures precise machining, correct bolt patterns, and the structural integrity necessary to maintain engine block rigidity and prevent oil leaks.

Technical details

Category
Engine
Country of origin
Germany
Customs (HS) code
84099900
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
44.5 × 28 × 12 cm
Shipping weight
3.17 kg

Parts diagram & fitment

5 vehicles

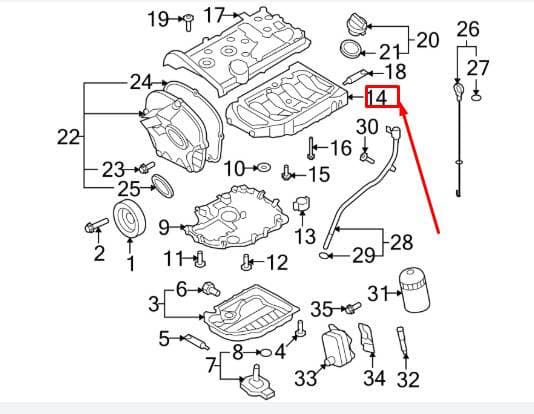

Engine Oil Sump Upper Part — locate 06J103603BD Volkswagen Engine Oil Sump | Upper Part in the official exploded view and explore the surrounding assembly.

Parts in this assembly(45)
Compatible / alternative parts(12)

Diagrams & fitment data powered by oemdiagrams.com

06J103603BD Volkswagen Engine Oil Sump | Upper Part is fitted on: new beetle 2011-2016; new beetle cabriolet 2011-2016; Passat CC 2011-2016; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013.
