06J103603J Engine Oil Sump Upper Part
€113.28 excl. VAT
- 06J103603JThis pageNot stocked
May 2009 - 06J103603TNot stocked
Jun 2017 - 06J103603BDCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

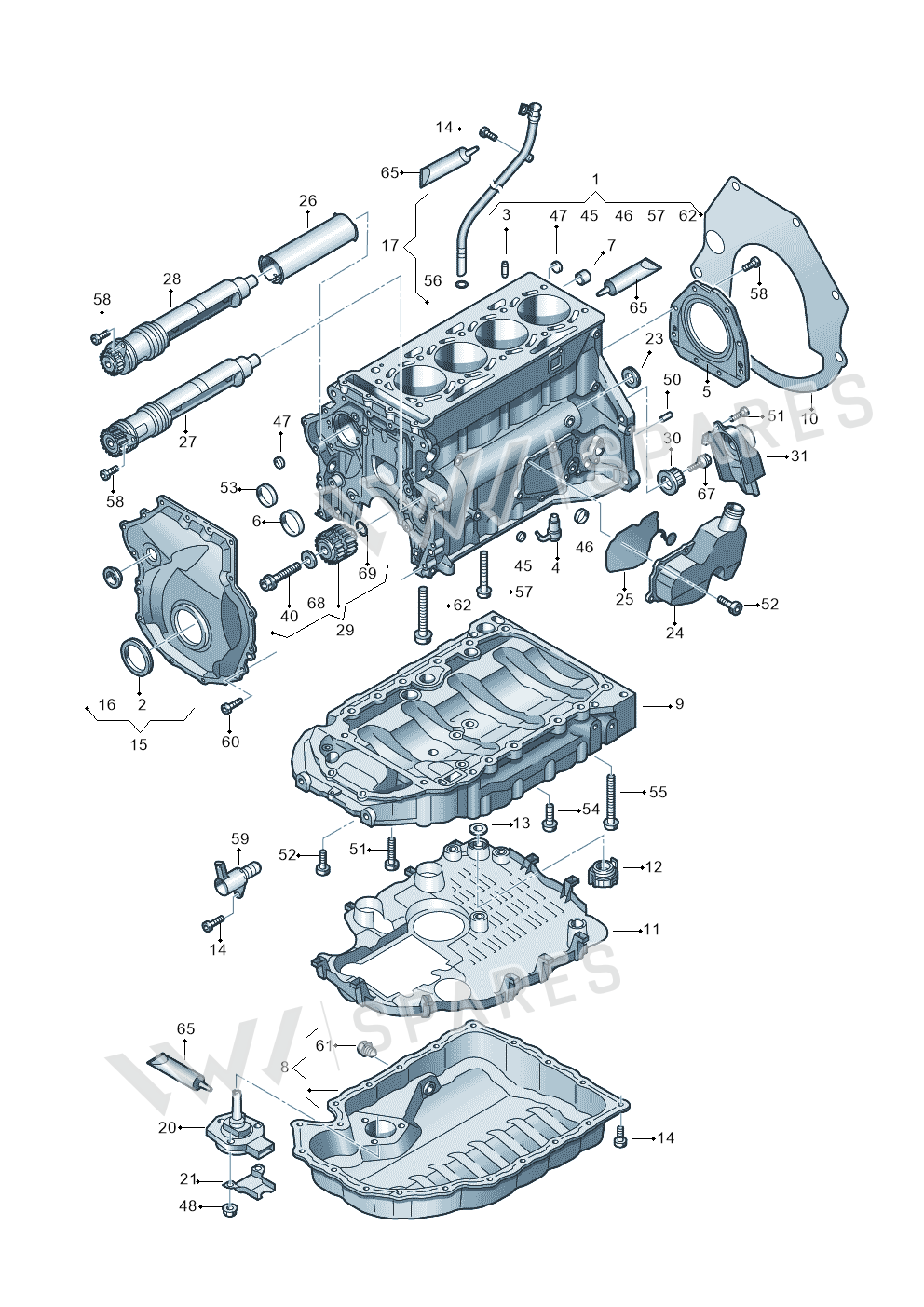

3 vehiclesEngine Oil Sump Upper Part — locate Engine Oil Sump Upper Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 06H103011D
- 1Crankcase 06H103011J
- 1Crankcase 06H103011N
- 2Seal 06H103085G
- 3Part 026103139
- 4Vent 06F103154
- 5Flange 06H103171A
- 6Cover 03C103113B
- 7Sleeve 022103139B
- 8Oil Sump 06J103600E
- 9Oil Sump 06J103603T
- 10Coverplate 06J103645A
- 11Insert 06J103138F
- 12Valve 06H103156
- 13Seal 06J103147
- 14Bolt N91096701
- 15Case 06H109210Q
- 16Bungs 06H115418D
- 17Tube 06J115610F
- 23Seal 06H103085J
- 24Separator 06H103464N
- 24Separator 06H103464L
- 25Seal 06H103517A
- 25Seal 06H103517D
- 26Pipe 06H103199K
- 27Shaft 06H103273L
- 28Shaft 06H103273K
- 29Wheel 06H103488M
- 30Pulley 06H103731F
- 31Protection 06H109121G
- 40Screw N10544904
- 45Cover N0119104
- 46Cover N0119019
- 47Cover N0119078
- 48Collar Nut N01508213
- 50Part N10617101
- 51Bolt N10156206
- 52Bolt N10196103
- 53Cover N90982901
- 54Screw N91026802
- 55Screw N91050601
- 56Seal Ring N91056801
- 57Screw N91063901
- 58Bolt N91073301
- 60Bolt N91096702
- 61Bolt N90813202
- 62Screw N91118902
- 65Seal D174003A2
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALTEA 07> | 2006- | 9 | 1 | D67 |
| Audi A3/S3/quattro | 2005-2007 | 9 | 1 | D67 |
| TOLEDO 05> | 2004- | 9 | 1 | D67 |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump Upper Part is fitted on: ALTEA 07> 2006-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-.
