Product overview

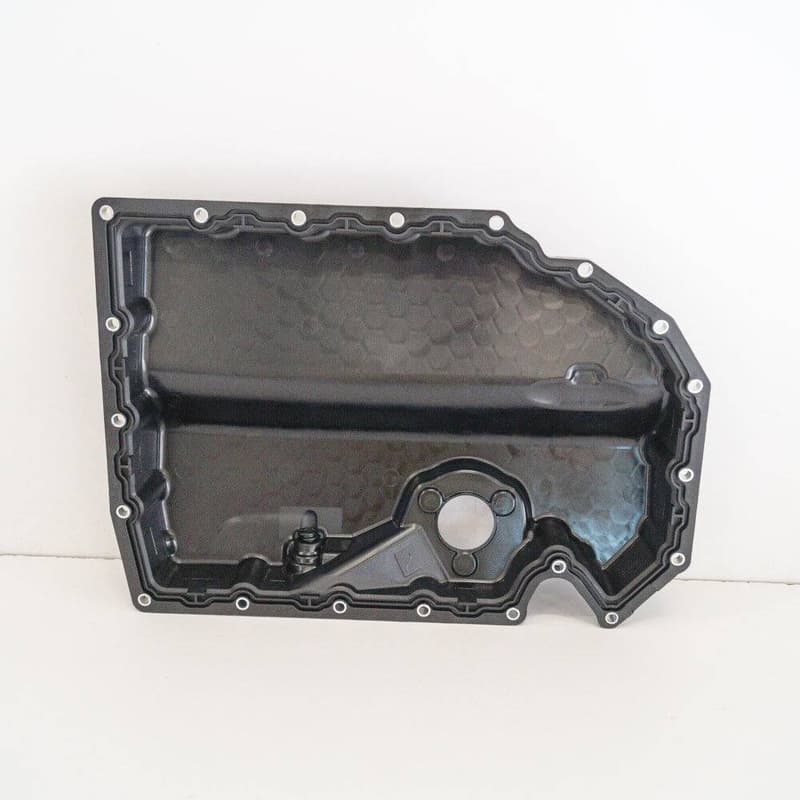

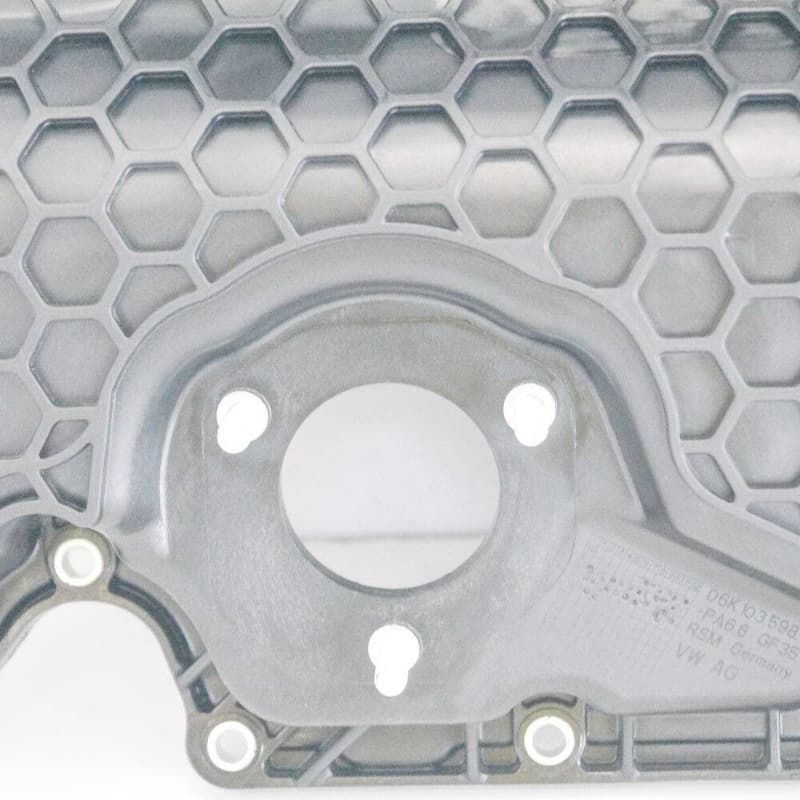

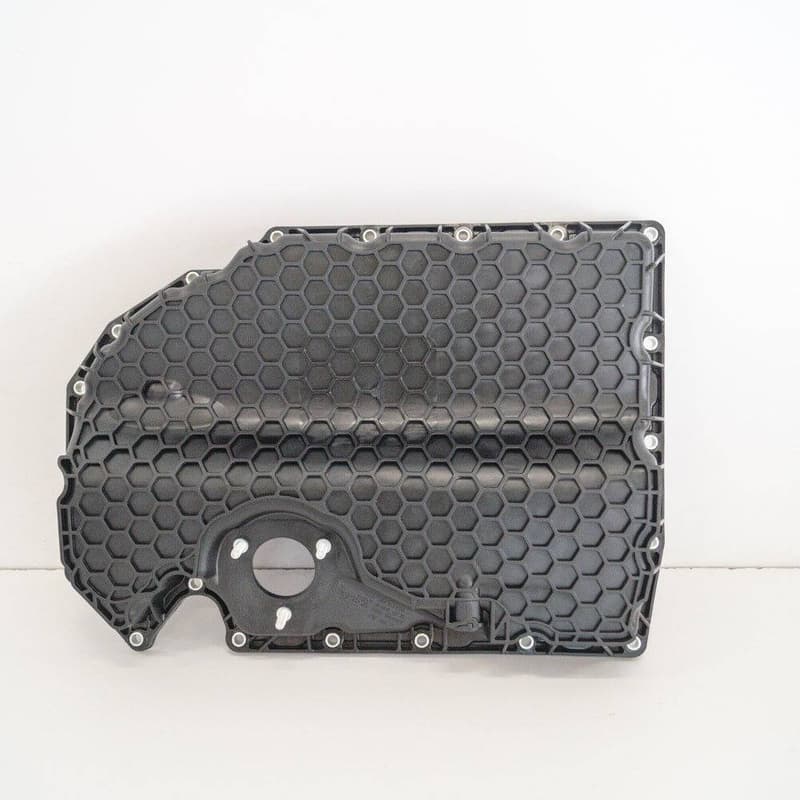

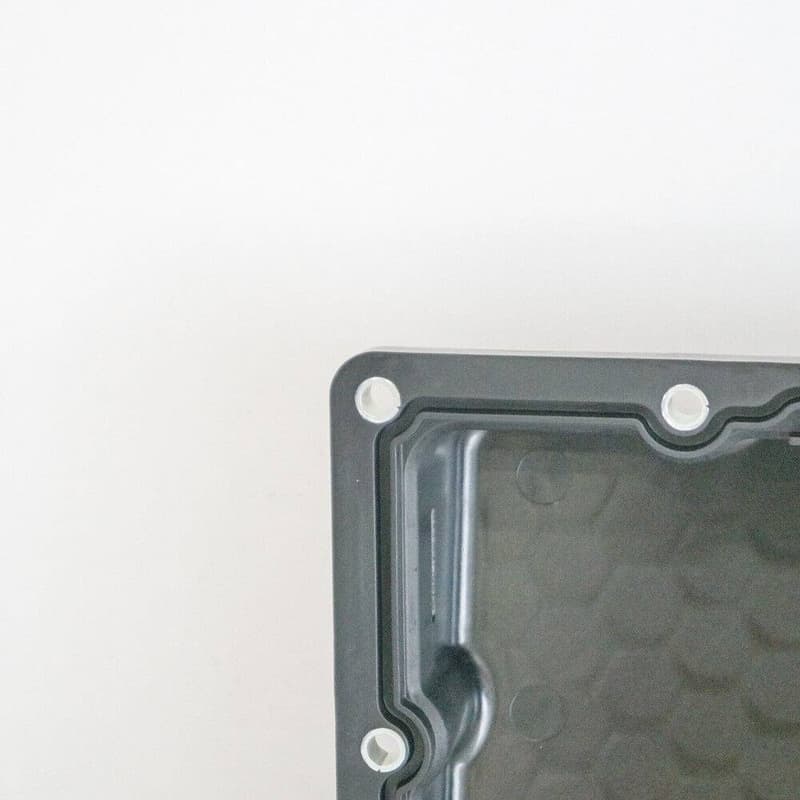

Genuine OEM Audi Engine Oil Pan, part number 06K103600AE. This critical component is located at the bottom of the engine, serving as a reservoir for engine oil, which is vital for lubrication and cooling. Weighing 0.856 kg, this oil pan is manufactured to precise factory specifications, ensuring a perfect seal and proper oil capacity for reliable engine operation.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38.5 × 28.5 × 8.5 cm
- Shipping weight
- 0.86 kg
Parts diagram & fitment
19 vehiclesOil Sump-lower Part — locate 06K103600AE Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Cylinder Head 05E103063F
- 1Oil Sump 06K103600R
- 2Oil Sump 06K103603CQ
- 2Cover N01191410
- 3Insert 06K103138P
- 4Bolt N10347204
- 4Bungs N90802703
- 5Bolt N10087802
- 5Bolt N91071702
- 5Screw N91173601
- 6Seal 04E103383CC
- 6Oel Sensor 06K907637B
- 7Seal Ring N0282222
- 8Collar Nut N01508210
- 8Screw WHT007089
- 9Part 026103139
- 9Bolt N91211201
- 10Cylinder Head 04E103469DH
- 10Screw N10766301
- 11Seal 04E103483S
- 11Screw N10765501
- 12Seal 04E103085AF
- 13Cover 05E103485C
- 13Cover 05E103485J
- 13Valve 06K115243L
- 13ASeal Ring N91056801
- 14Part 06L103801
- 14Part 06L103801D
- 15Seal D176501A1
- 15Bolt N91254301
- 17Seal 04E103085C
- 18Pulley 04E109111AP
- 19Gasket 06K103649J
- 19Screw N10689301
- 20Valve 04E906048A
- 21Valve 04E906455AC
- 21Bolt N10196104
- 21Screw N91168701
- 22Protection 04E109121D
- 22Protection 04E109121N
- 22Bungs 06K103035
- 23Seal Ring 038103196C
- 23Seal Ring 038103196D
- 23Screw N91097201
- 24Sender 05E907601D
- 29Cover 04C103335
- 30Bolt N91096701
- 31Seal Ring N90467301
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06K103600AE Audi Engine Oil Pan | Genuine OEM is fitted on: Audi A1 sportback 1.0 2018-; Audi A3 Sportback 2019-2021; Audi Q3 quattro 2018-2019; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi A3 Limousine 2.0 2015-2016; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Golf 2.0 BlueMotion 2019-2024; Tiguan 2.0 2023-; POLO HATCH "ZA"06> 2005-; Passat saloon 2014-2024; Arteon 2017-2023; Leon style 2019-; Formentor TSI CUPRA 2020-; Leon ST Stylance 2016-2020; Ateca Style 2016-; Kodiaq 2024-; Octavia 2019-2024.
