Product overview

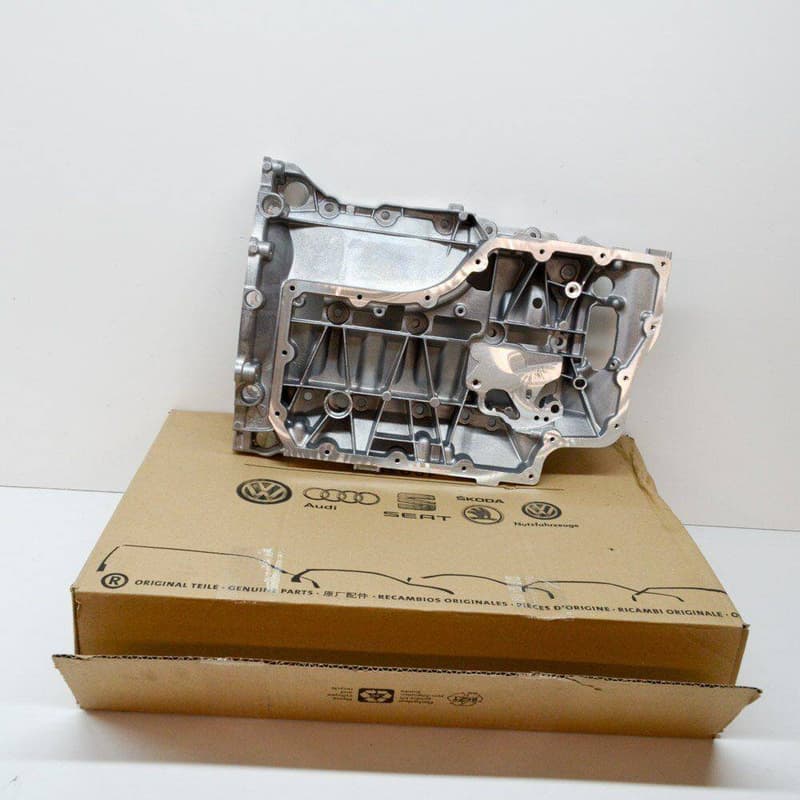

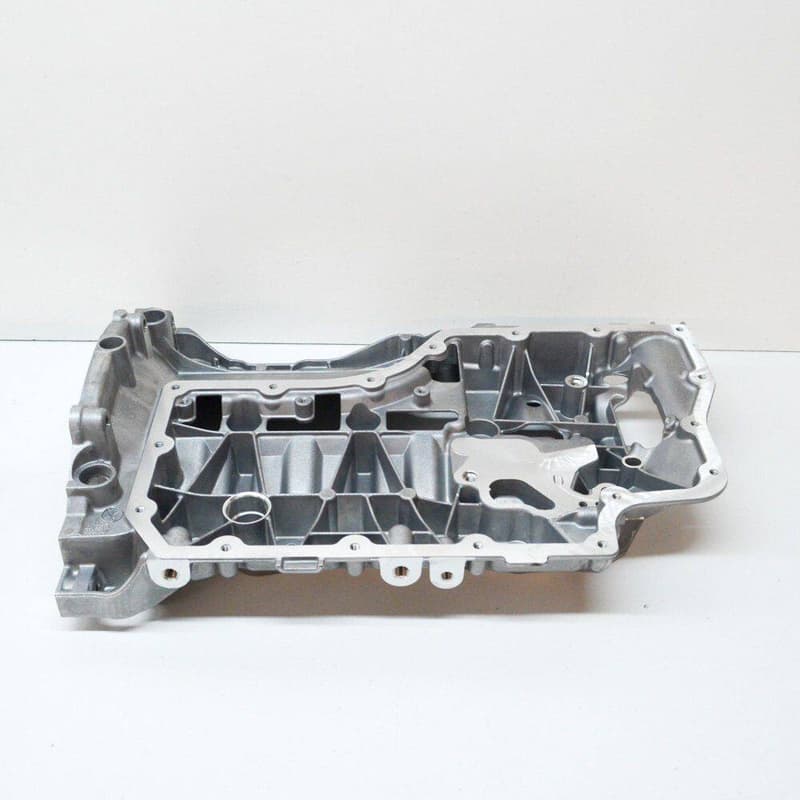

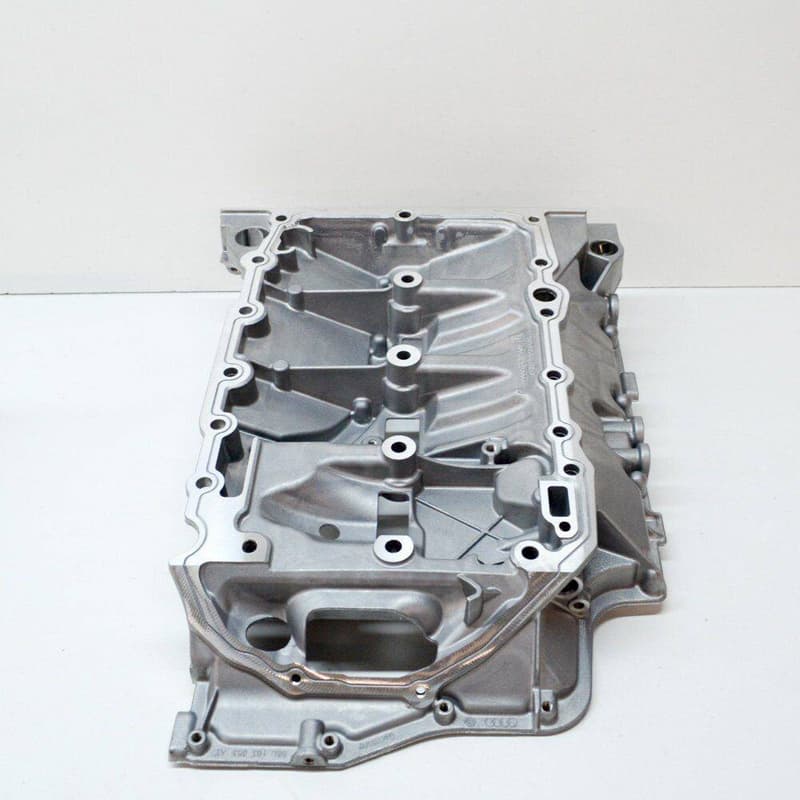

Genuine OEM Audi Engine Oil Sump, part number 06L103603AT. This essential component is located at the bottom of the engine, serving as a reservoir for engine oil and housing the oil pickup tube. Its design ensures proper oil collection and cooling before circulation. Weighing 3.678 kg, it is typically made from durable cast aluminum or steel. Using a genuine OEM oil sump guarantees precise fitment, proper sealing to prevent leaks, and the structural integrity needed to protect the engine's lubrication system from road debris and impacts.
Catalogue entry: OIL SUMP.
Fitted with: 06L103603AG OIL SUMP, N10839701 BOLT, N91173601 Screw, N0282222 seal ring, N91211201 BOLT, N10766301 SCREW, N91048802 SCREW, 06L103801 BOLT, 06L103801D BOLT, D176501A1 SEAL, N91056801 SEAL. RING, 06L103649R GASKET.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45.5 × 36 × 11 cm
- Shipping weight
- 3.68 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesEngine Oil Sump Upper Part — locate 06L103603AT Audi Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Oil Sump 06L103598R
- 2Oil Sump 06L103603BP
- 4Bolt N10347204
- 4Bolt N10839701
- 5Bolt N91071702
- 5Screw N91173601
- 6Oel Sensor 06L907637
- 6Oel Sensor 06L907660
- 6Oel Sensor 06L907660H
- 7Seal Ring N0282222
- 9Bolt N91211201
- 10Screw N10766301
- 13Valve 06K115243L
- 14Part 06L103801
- 14Part 06L103801D
- 15Seal D176501A1
- 17Seal Ring N91056801
- 19Gasket 06L103649R
- 20Collar Nut N01508210
- 21Bungs 06L103035
- 22Bungs 06L103035A
- 23Lock 06L103623C
- 24Bolt N10196104
- 24Bolt N10750001
- 25Seal Ring 038103196D
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 2 | 1 |
| audi a6 2.0 | 2018- | 2 | 1 |
| Audi A7 Sportback | 2018- | 2 | 1 |
| touareg | 2017-2023 | 2 | 1 |
| Audi Q5 | 2016-2020 | 2 | 1 |
| Audi A5 Sportback | 2016-2020 | 2 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 2 | 1 |
| audi a4 2.0 | 2015-2019 | 2 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06L103603AT Audi Engine Oil Sump | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
