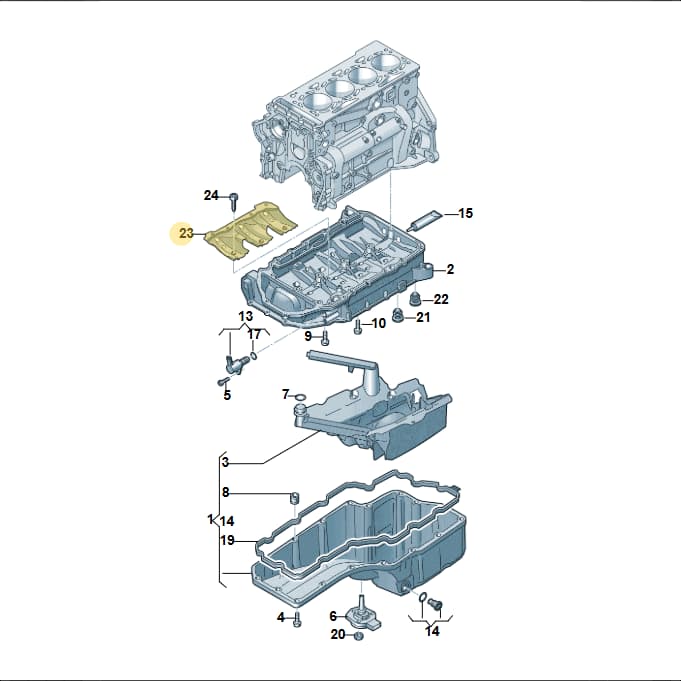

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Oil Sump Baffle Plate, part number 06L103623C. This internal component is situated within the engine oil sump, designed to prevent oil surge during dynamic driving conditions. By maintaining consistent oil pickup, it ensures continuous lubrication to critical engine components. Its precise design and material are crucial for reliable engine performance and longevity, preventing oil starvation.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32 × 25 × 6.2 cm
- Shipping weight
- 0.15 kg
Parts diagram & fitment
10 vehiclesSurge Lock — locate 06L103623C Audi Engine Oil Sump Baffle Plate | Anti-Surge in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Oil Sump 06L103598R
- 2Oil Sump 06L103603AT
- 2Oil Sump 06L103603BP
- 4Bolt N10347204
- 4Bolt N10839701
- 5Bolt N91071702
- 5Screw N91173601
- 6Oel Sensor 06L907637
- 6Oel Sensor 06L907660
- 6Oel Sensor 06L907660H
- 7Seal Ring N0282222
- 9Bolt N91211201
- 10Screw N10766301
- 13Valve 06K115243L
- 14Part 06L103801
- 14Part 06L103801D
- 15Seal D176501A1
- 17Seal Ring N91056801
- 19Gasket 06L103649R
- 20Collar Nut N01508210
- 21Bungs 06L103035
- 22Bungs 06L103035A
- 24Bolt N10196104
- 24Bolt N10750001
- 25Seal Ring 038103196D
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06L103623C Audi Engine Oil Sump Baffle Plate | Anti-Surge is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A8L 2017-2022; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
