Product overview

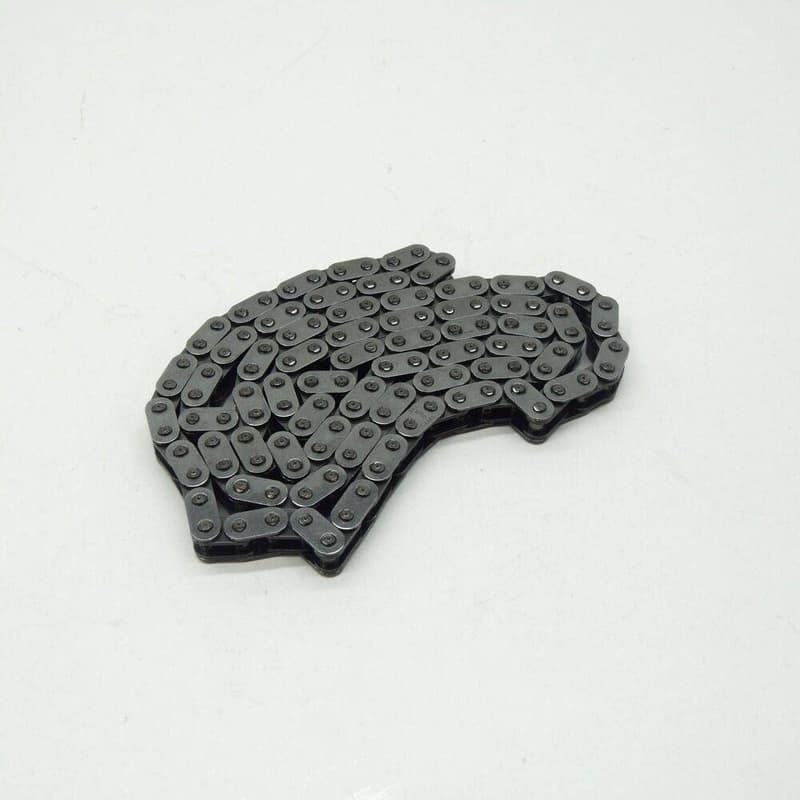

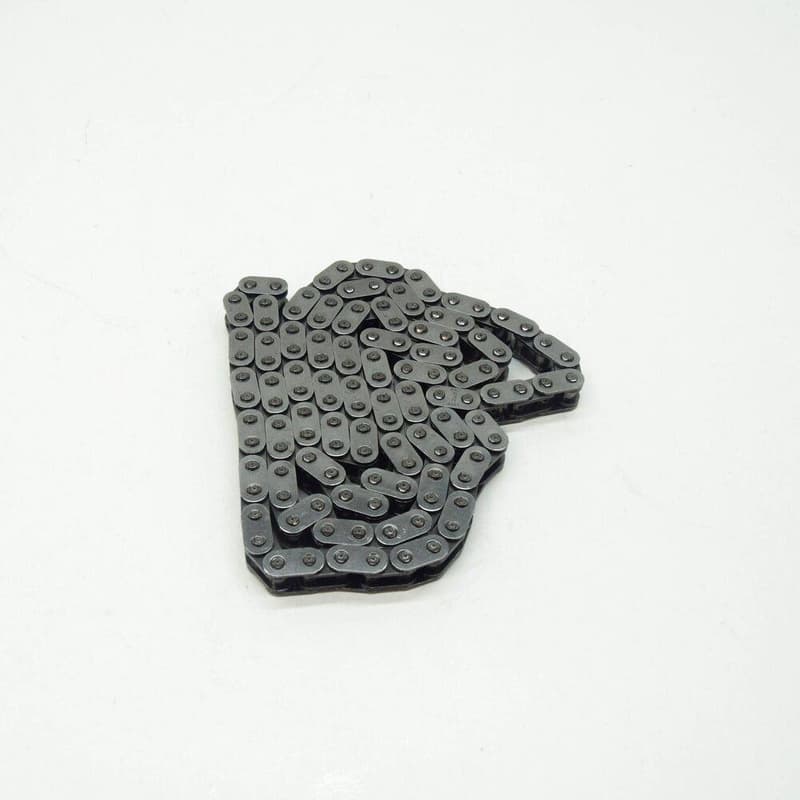

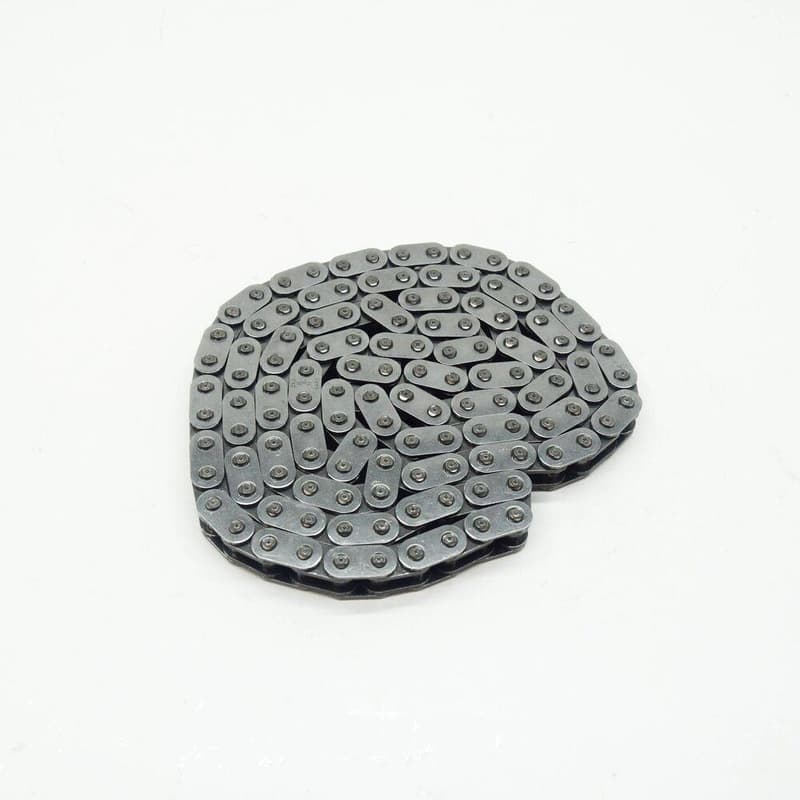

Genuine OEM Audi Engine Timing Chain, part number 06M109229AA. This precision-engineered chain is vital for synchronizing the rotational movements of the engine's crankshaft and camshafts. It ensures that the engine valves open and close at the precise moment relative to piston position, specifically for the left side of the engine. Made from high-strength steel, it weighs approximately 0.34 kg and measures 0.115m in length, 0.115m in width, and 0.01m in height. An authentic OEM timing chain guarantees exact pitch and material specifications, crucial for maintaining precise valve timing, preventing catastrophic engine damage, and ensuring long-term reliability.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.5 × 11.5 × 1 cm
- Shipping weight
- 0.34 kg
Parts diagram & fitment
14 vehiclesTiming Chain — locate 06M109229AA Audi Engine Timing Chain | Left Side in the official exploded view and explore the surrounding assembly.
Superseded by 06M109450K — the later replacement part.
Parts in this assembly(26)
- 1Tim Chain 06M109450K
- 1Tim Chain 06M109450P
- 1Tim Chain 06M109450R
- 2Tensioner 06M109218F
- 2Tensioner 06M109218J
- 3Bolt N10124304
- 4Part 06M109426E
- 5Lining 079109470
- 6Seatrunner 06M109514F
- 7Part 059109426T
- 8Bolt N91238501
- 9Timing Cha 06M109229AC
- 10Seatrunner 06M109509L
- 10Seatrunner 06M109509M
- 11Tensioner 06M109217G
- 11Tensioner 06M109217L
- 12Seatrunner 06M109513G
- 12Part 06M109513J
- 13Bolt N10451405
- 16Chain 06M109229D
- 16Chain 06M109229S
- 17Seatrunner 06M109469G
- 17Seatrunner 06M109469K
- 18Bolt N10405604
- 19Tensioner 06M109507F
- 22Seal 079109139L
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06M109229AA Audi Engine Timing Chain | Left Side is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
