Target · Diagram
Find this reference above

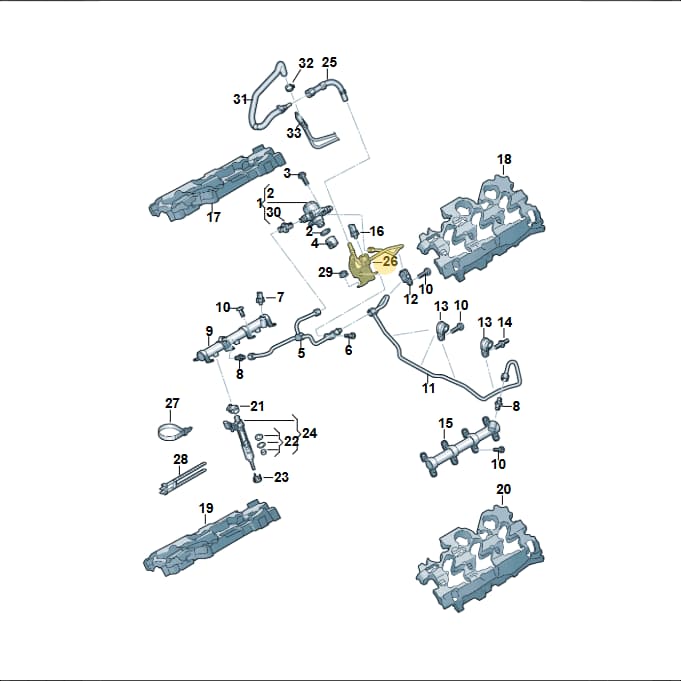

Number 26 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 06M127503S. This is a critical component of the fuel delivery system, designed to transport fuel under pressure. It connects various fuel system components to ensure precise fuel flow to the engine. Constructed with materials resistant to fuel and high pressure. Genuine OEM ensures the correct diameter, routing, and connection integrity for safe and efficient fuel delivery.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18 × 15 × 10 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
13 vehiclesFuel Line — locate 06M127503S Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 06M127507AC — the later replacement part.
Parts in this assembly(24)
- 1Pump 06M127026P
- 2Seal Ring WHT005184
- 3Screw N91084201
- 5Fuel Line 06M127507AC
- 6Bolt N10335206
- 7Sensor 06L906054E
- 8Adapter 06E127065N
- 9Rail 06M133316L
- 10Bolt N10451408
- 11Fuel Line 06M127507AB
- 12Bracket 06M127411A
- 13Clamp N0206098
- 14BoltRightN91044802
- 15Rail 06M133315L
- 16Sensor 059906054L
- 17Insulation 06M133876AK
- 18Insulation 06M133875AM
- 20Valve 06M906036AE
- 22Repair Kit 06M998907A
- 25Fuel Line 06M133986AC
- 28Union 06J127065C
- 29Collar Nut N01508210
- 30Insulation 06M133876AL
- 31Insulation 06M133875AN
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
06M127503S Volkswagen Fuel Line | Genuine OEM is fitted on: Audi A7 2021-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
