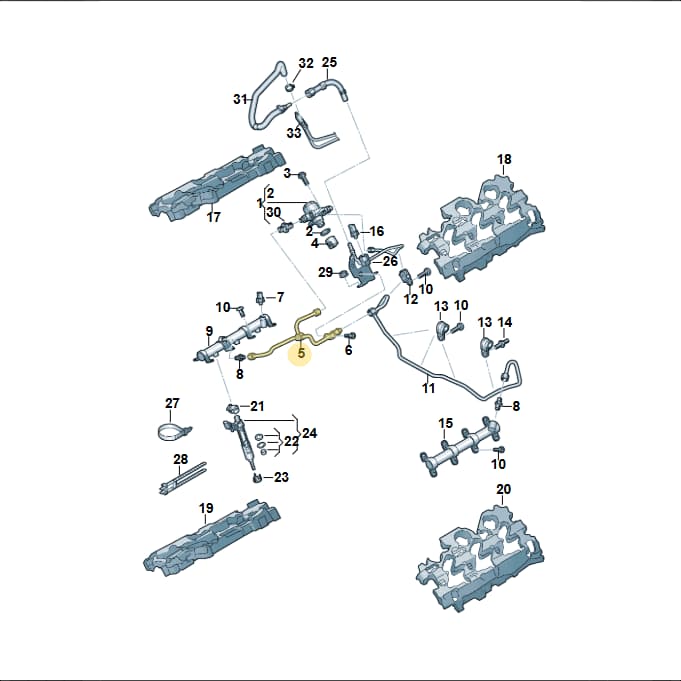

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 06M127507AC. This part is a fuel line that connects components within the fuel system. It is located in the fuel system assembly. Manufactured to precise specifications for optimal performance and durability.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 25.5 × 8.5 × 8 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
14 vehiclesFuel Line — locate 06M127507AC Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Pump 06M127026P
- 2Seal Ring WHT005184
- 3Screw N91084201
- 6Bolt N10335206
- 7Sensor 06L906054E
- 8Adapter 06E127065N
- 9Rail 06M133316L
- 10Bolt N10451408
- 11Fuel Line 06M127507AB
- 12Bracket 06M127411A
- 13Clamp N0206098
- 14BoltRightN91044802
- 15Rail 06M133315L
- 16Sensor 059906054L
- 17Insulation 06M133876AK
- 18Insulation 06M133875AM
- 20Valve 06M906036AE
- 22Repair Kit 06M998907A
- 24Fuel Line 06M127503S
- 25Fuel Line 06M133986AC
- 28Union 06J127065C
- 29Collar Nut N01508210
- 30Insulation 06M133876AL
- 31Insulation 06M133875AN
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06M127507AC Volkswagen Fuel Line | Genuine OEM is fitted on: Audi A7 2021-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A6 L 2.0 2018-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
