Product overview

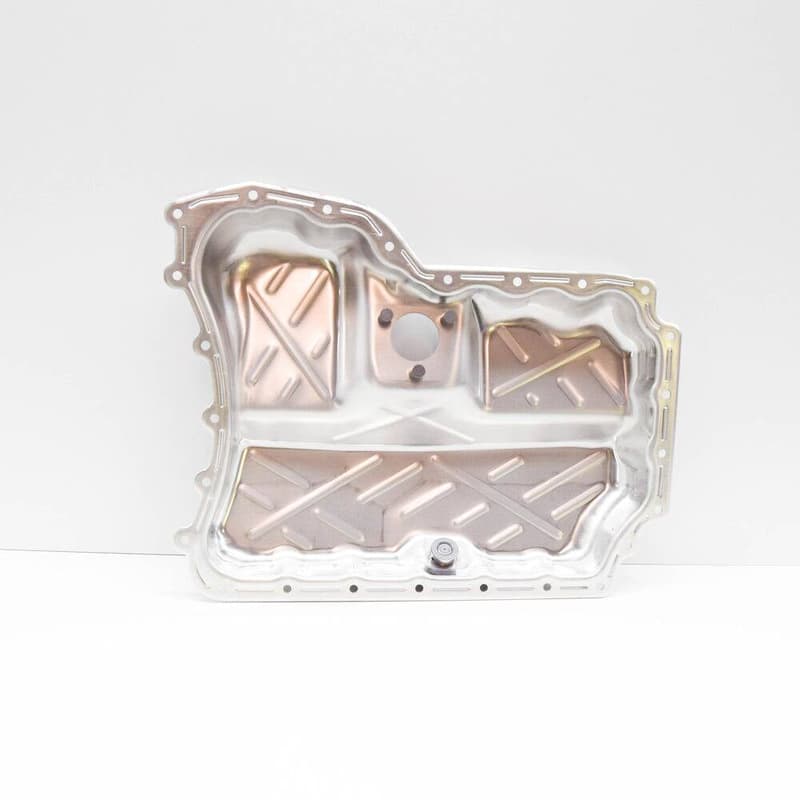

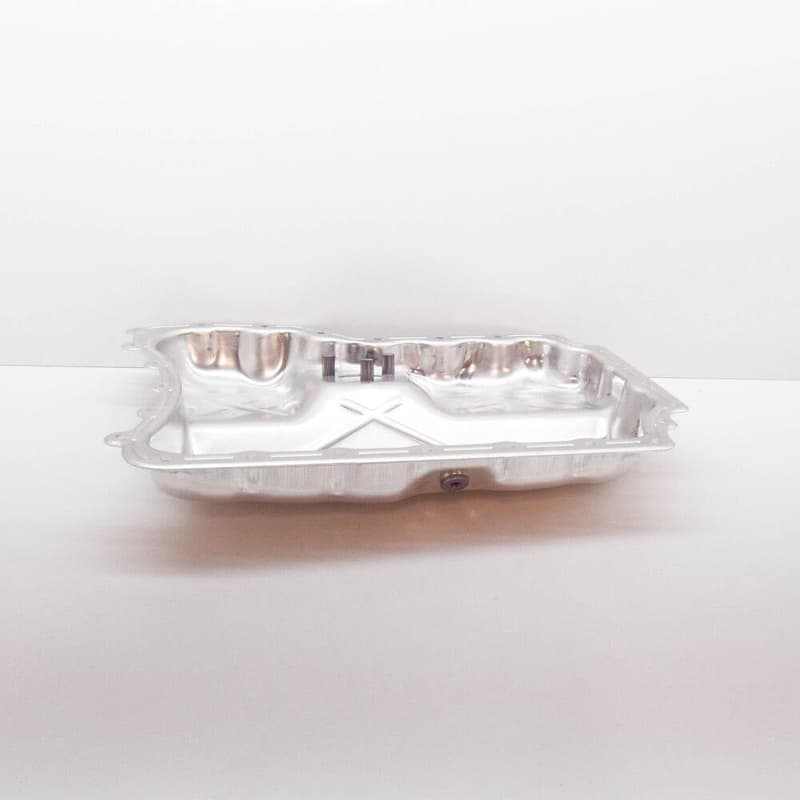

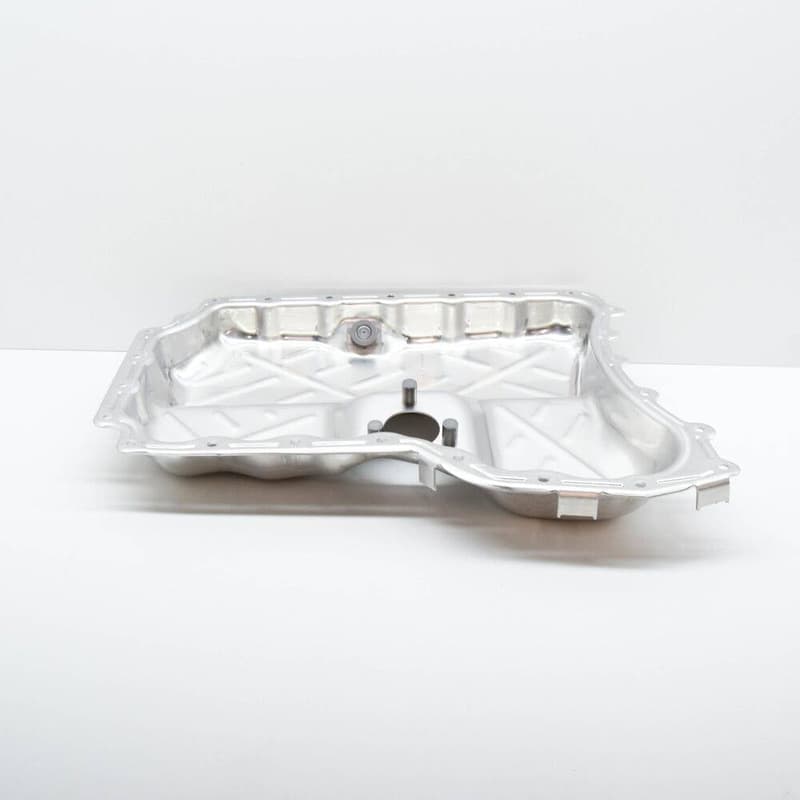

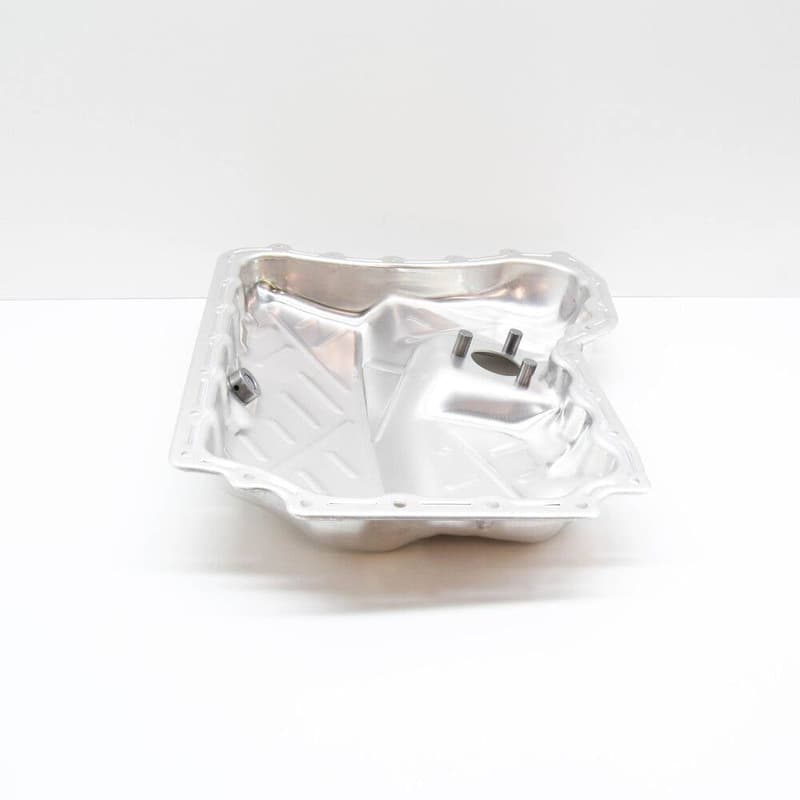

Genuine OEM Audi Lower Engine Oil Pan, part number 07K103602F. This crucial component is located at the bottom of the engine, serving as a reservoir for the engine oil, which is vital for lubricating internal engine parts. Manufactured from durable stamped steel, it is designed to withstand engine vibrations and road debris. Weighing 0.927 kg and measuring 0.425 m in length, this pan ensures a precise fit and seal. Choosing a genuine OEM oil pan guarantees the correct dimensions, material strength, and bolt pattern for a leak-free seal and reliable engine oil containment.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42.5 × 33.5 × 6 cm
- Shipping weight
- 0.93 kg
Parts diagram & fitment
5 vehiclesOil Sump-lower Part — locate 07K103602F Audi Lower Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1Crankcase 07K103011AR
- 2Flange 07K103151M
- 3Vent 07K103154H
- 4Valve 07K103156
- 8Oil Sump 07K103603K
- 10Bolt N10413405
- 12Cover N01190710
- 13Cover N0119085
- 14Cover N0119104
- 15Screw N91168701
- 16Bolt N91043601
- 19Oel Sensor 06E907660C
- 20Screw N91167901
- 21Seal Ring N0138495
- 22Bolt WHT008210
- 23Bolt N10820203
- 24Screw N10765501
- 25Screw N10764601
- 25Part N10649401
- 25Bolt N91101401
- 27Screw WHT008472
- 28Part 026103139
- 29Sleeve 077115143D
- 30Part D176501A1
- 32Screw N91170301
- 33Seal Ring 038103196B
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
07K103602F Audi Lower Engine Oil Pan | Genuine OEM is fitted on: Audi RSQ3 Sportback 2019-2024; Audi A3 Sportback 2019-2021; Audi RS3 Limousine 2017-2020; Audi TTRS Coupe 2016-2023; Formentor TSI CUPRA 2020-.
