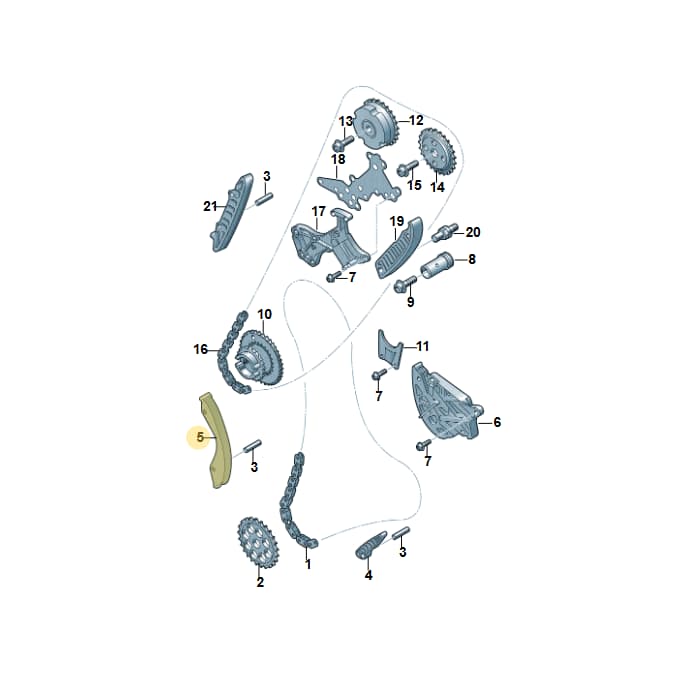

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Guide Rail, part number 07K109513D. This part functions as a guide for the timing chain within the engine assembly. It is located in the timing chain system. Made from durable materials for long service life. Genuine OEM parts ensure precise fit and function, critical for timing components.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17.5 × 4.4 × 1.8 cm
- Shipping weight
- 0.11 kg
Parts diagram & fitment
22 vehiclesSlide Rail — locate 07K109513D Volkswagen Guide Rail | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 2Chn Sprckt 07K115121E
- 3Part WHT000041
- 4Seatrunner 07K109469G
- 6Tensioner 07K109467B
- 7Screw N91099101
- 8Gear W Sft 07K109224
- 11Mounting 07K109237A
- 12Adjuster 07K109083F
- 13Screw 06E109281A
- 14Chn Sprckt 07K109571D
- 15Screw N91050202
- 16Timing Cha 07K109231A
- 17Tensioner 07K109217F
- 18Seal 07K109235A
- 19Tensioner 07K109510B
- 20Thread Pin WHT000195
- 21Seatrunner 07K109514D
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
07K109513D Volkswagen Guide Rail | Genuine OEM is fitted on: Jetta "USA"05> 2005-; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; Jetta Vagon 08> 2008-; golf 2.0 2008-2011; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; New Passat 2011-2015; jetta 2010-2014; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf 2011-2013; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; New Passat 2015-2022; Audi TTRS Plus Coupe 2009-2014; Audi RS3 Sportback 2011-2012; Audi RSQ3 qu. 2.5 2013-2018; Audi RS3 Sportback 2015-2016.
