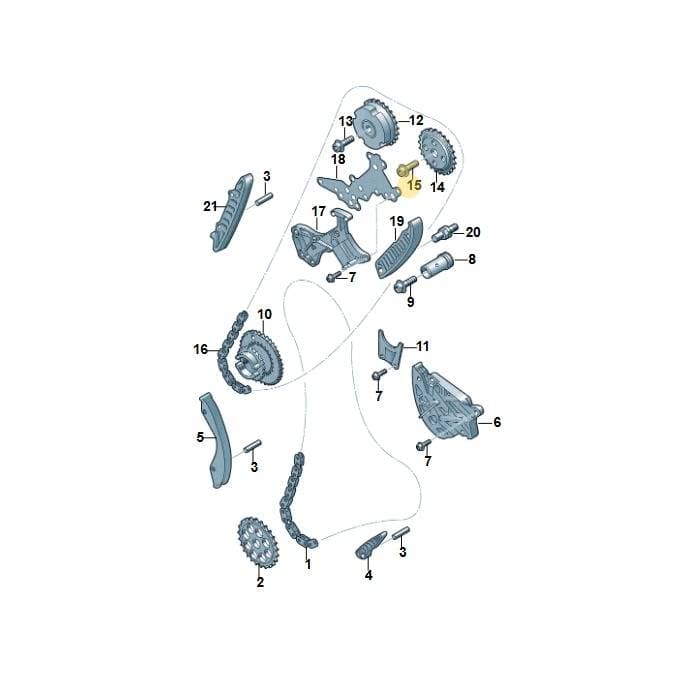

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N91050202. This fastener is engineered to provide secure clamping force for critical engine components. It is located in the timing chain assembly as shown in the diagram. This bolt features a high-strength steel construction with a precise thread pitch and head profile. Genuine OEM fasteners are essential for maintaining correct torque specifications and preventing vibration-related loosening in high-stress engine environments.
Technical details
- Category
- Engine
- Customs (HS) code
- 73181558
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.5 × 2.5 × 2.5 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
18 vehiclesScrew — locate N91050202 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 2Chn Sprckt 07K115121E
- 3Part WHT000041
- 4Seatrunner 07K109469G
- 5Seatrunner 07K109513D
- 6Tensioner 07K109467B
- 7Screw N91099101
- 8Gear W Sft 07K109224
- 11Mounting 07K109237A
- 12Adjuster 07K109083F
- 13Screw 06E109281A
- 14Chn Sprckt 07K109571D
- 16Timing Cha 07K109231A
- 17Tensioner 07K109217F
- 18Seal 07K109235A
- 19Tensioner 07K109510B
- 20Thread Pin WHT000195
- 21Seatrunner 07K109514D
Diagrams & fitment data powered by oemdiagrams.com
N91050202 Volkswagen Socket Head Bolt | Genuine OEM is fitted on: Jetta "USA"05> 2005-; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; Jetta Vagon 08> 2008-; golf 2.0 2008-2011; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; New Passat 2011-2015; jetta 2010-2014; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf 2011-2013; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; New Passat 2015-2022.
