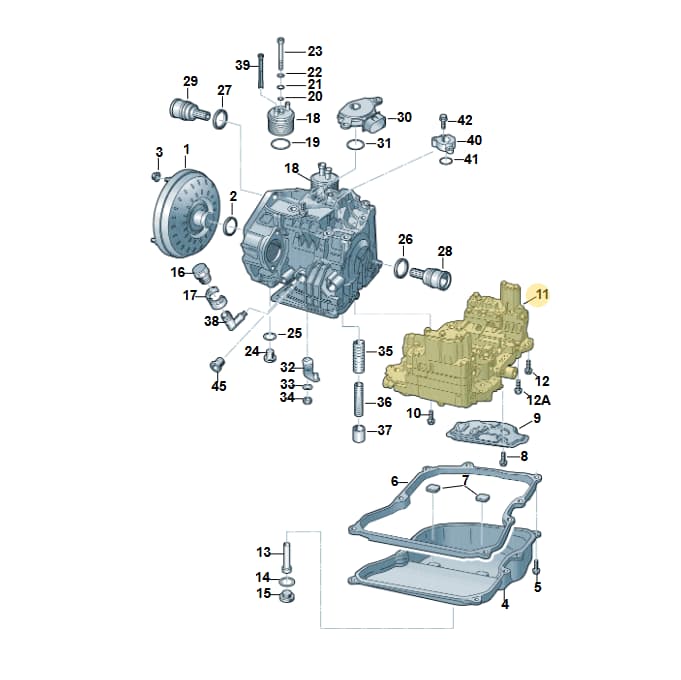

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Drawer Block, part number 09G325039A. This component is part of the transmission system, controlling fluid flow and gear selection. Its precise manufacturing ensures smooth and reliable gear changes. Made with high-quality materials for durability.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Belgium
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 20 × 17.5 cm
- Shipping weight
- 7.64 kg
Parts diagram & fitment
51 vehiclesValve Body — locate 09G325039A Volkswagen Drawer Block | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(41)
- 1Converter 09G323571E
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09G321361
- 5Bolt N10156305
- 5Bolt WHT000307
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt N10171102
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039X
- 11Valve Body 09G325039AX
- 11Valve Body 09G325039
- 12Bolt N10156005
- 12ABolt WHT000313
- 13Oil Pipe 09G321363
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Bungs 01M321432A
- 18Oil Cooler 09G409061
- 19Seal Ring 001409069B
- 20Seal Ring 001409069
- 21Washer 001301093B
- 22Seal Ring 09G409539
- 23Screw 09G409067
- 24Plug 001301143
- 24Screw WHT000306
- 25Seal Ring 001409069D
- 25Seal Ring 09G321379
- 26Seal 09G301189
- 31Seal Washer 09D321199
- 32Lever 09A321171A
- 34Collar Nut N10332002
- 35Press Spring 09A409379
- 36Spring 09K325233
- 37Piston 09K325215
- 38Pipe 09G321407
- 39Junction 09G409080
- 45Adapter 09G301469A
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
