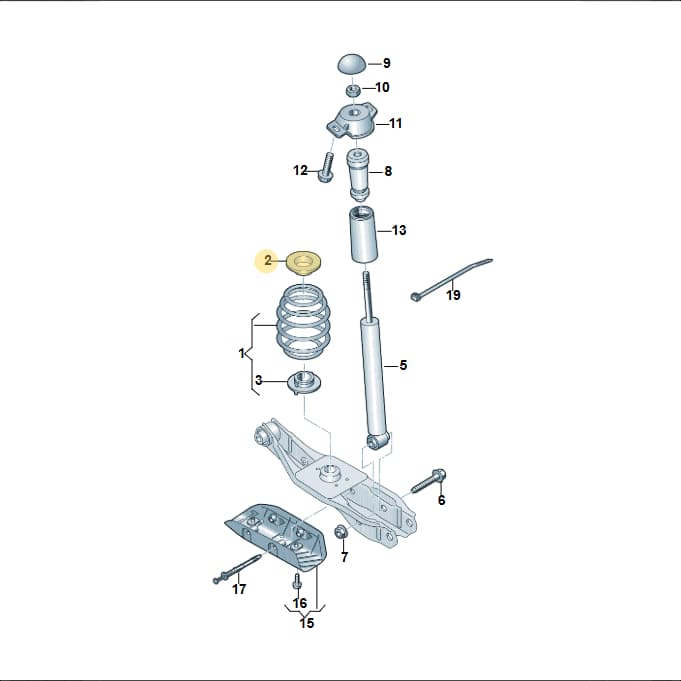

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Rear Coil Spring Insulator, part number 1EA512149. This component is designed to be positioned above the coil spring in the rear suspension assembly, providing crucial isolation between the spring and other chassis components. Its primary function is to reduce noise, absorb vibrations, and prevent metal-on-metal contact, thereby enhancing ride comfort and extending component life. Weighing approximately 0.12 kg, it measures about 117mm in diameter. Using a genuine OEM insulator ensures the correct material composition and precise dimensions for optimal cushioning and durability within the suspension system.
Catalogue entry: UNDERLAY upper ×2.
Fitted with: 1EA512297 UNDERLAY, N90974701 BOLT, WHT003479 expanding nut, 80A512182 Retaining pin.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088035
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.7 × 11.7 × 2.7 cm
- Shipping weight
- 0.12 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 12 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
10 vehiclesUnderlay — locate 1EA512149 Audi Rear Coil Spring Insulator | Suspension in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 3Underlay 1EA512297
- 6Bolt N91039802
- 7Collar Nut N10106403
- 8Buffer 1EA511357C
- 8Buffer 1EA511357D
- 8Buffer 1EA511357E
- 9Part 1J0512135A
- 10Ut Hexagon Nut Self-locking Hexagon Nut WHT007127
- 11Bearing 1EA513353E
- 11Bearing 1EA513353F
- 12Screw N91235901
- 13Pipe 1EA513425B
- 15Stone ChipRight1EA501732A
- 15Stone ChipLeft1EA501731A
- 16Bolt N90974701
- 16Part WHT003479
- 17Part 80A512182
- 19Cable Tie N10662201
Compatible / alternative parts(12)
Vehicle fitment table10
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ID.7 Limousine Pro | 2023- | 2 | 1 |
| eBoost CUPRA | 2021- | 2 | 2 |
| Audi Q4 Sportback | 2021-2022 | 2 | 2 |
| Enyaq | 2020- | 2 | 2 |
| ID.4 Pro | 2020-2023 | 2 | 2 |
| ID.3 Pro | 2019-2024 | 2 | 2 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ID.6 X | 2021- | 2 | 2 |
| ID.3 | 2021- | 2 | 2 |
| Audi Q5 e-tron | 2021- | 2 | 2 |
| ID.4 X | 2020- | 2 | 2 |
