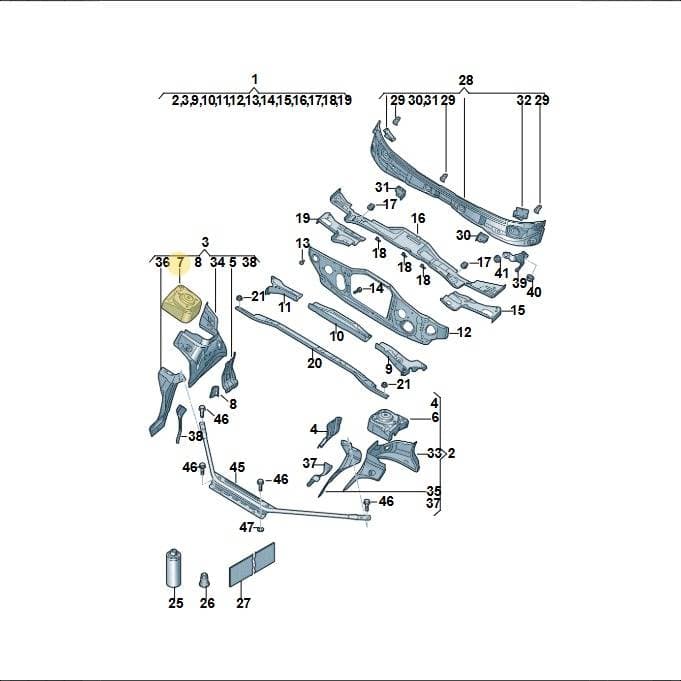

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Suspension Strut Dome, part number 1EA809122A. This part serves as the upper mounting point for the suspension strut, connecting it to the vehicle's chassis. It is located at position 7 in the diagram. The dome measures 0.258m in length, 0.22m in width, and 0.11m in height. Genuine OEM strut domes are critical for maintaining suspension geometry and ensuring proper alignment.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 25.8 × 22 × 11 cm
- Shipping weight
- 1.99 kg
Parts diagram & fitment
9 vehiclesSuspension Strut Dome — locate 1EA809122A Volkswagen Suspension Strut Dome | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Side Member 1EA803109
- 2Side Member 1EA803110
- 2Wheel Housing 1EA805115A
- 3Wheel Housing 1EA805116A
- 3Reinforce 1EA805453
- 4Reinforce 1EA805077A
- 4Reinforce 1EA805454
- 5Holder 10A803713
- 5Reinforce 1EA805078A
- 6Holder 10A803714
- 6Mounting 1EA809121A
- 7Bolt N91174701
- 8Retainer 1EA121409L
- 8Plate 1EA803773
- 9Plate 1EA803774
- 9Water Box 1EA805397A
- 10Part 1EA804119A
- 10Water Box 1EA805277
- 11Part 1EA804120A
- 11Water Box 1EA805398A
- 12Cross Pan 1EA803155
- 12Cross Pan 1EA803155E
- 12Cov Plate 1EA804147A
- 13Cov Plate 1EA804148A
- 13Screw N91220902
- 14Screw N10445903
- 15Reinforcmt 1EA803489A
- 16Plate 1EA804181
- 16Water Box 1EA805265A
- 17Plate 1EA804182
- 17Part N0211565
- 18Bracket Mt 1EA803127A
- 18Bracket 1K0805517B
- 19Bracket Mt 1EA803128A
- 19Reinforcmt 1EA803490A
- 20Water Box 11B806239
- 20Water Box 11C806239
- 20Side Member 1EA803211
- 21Side Member 1EA803212
- 21Collar Nut N01508210
- 22Plate 1EA803871
- 23Plate 1EA803872
- 24Bracket Mt 1EA802747
- 25Bracket Mt 1EA802748
- 252-pack Adh D180003M3
- 26Mount Block 1EA803429
- 27Mount Block 1EA803430
- 28Scuttle 11A802483A
Diagrams & fitment data powered by oemdiagrams.com
1EA809122A Volkswagen Suspension Strut Dome | Genuine OEM is fitted on: ID.4 Pro 2020-2023; ID.4 X 2020-; ID.6 X 2021-; ID.7 Limousine Pro 2023-; ID.UNYX 2024-; Audi Q4 Sportback 2021-2022; Audi Q5 e-tron 2021-; Tavascan Cupra 2023-; Enyaq 2020-.
