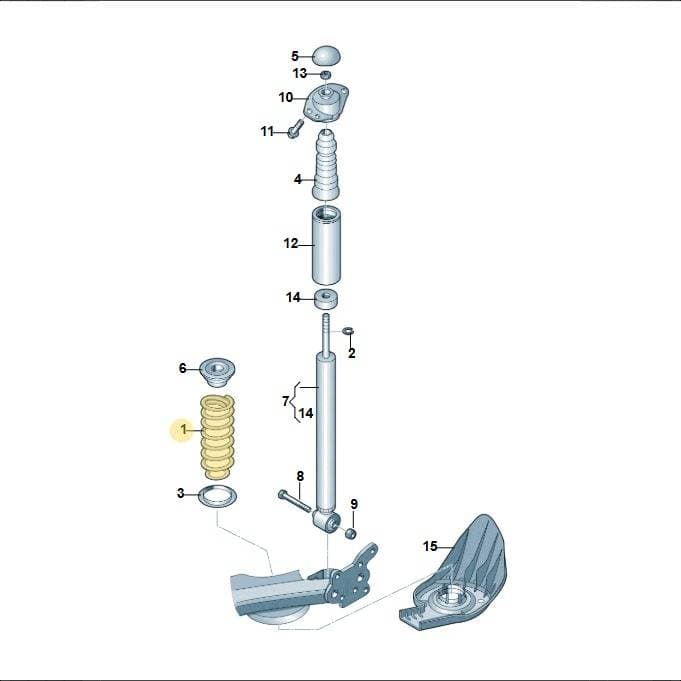

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Coil Spring, part number 1J0511115AG. This coil spring supports the vehicle's weight and absorbs road shocks for a comfortable ride. It is located at the rear of the vehicle. The spring is made of steel and is designed to withstand significant compression and expansion cycles.
Technical details
- Category
- Suspension
- Customs (HS) code
- 73202020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32 × 11.5 × 11.5 cm
- Shipping weight
- 1.59 kg
Parts diagram & fitment
6 vehiclesCoil Spring — locate 1J0511115AG Volkswagen Rear Coil Spring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1Part 1J0511115AE
- 1Part 1J0511115AF
- 1Part 1J0511115AK
- 1Part 1J0511115AL
- 2Circlip 8D0512097
- 3Underlay 1J0512109
- 4Buffer 1J0512131
- 4Buffer 1J0512131C
- 4Buffer 1J0512131B
- 5Part 1J0512135A
- 6Underlay 1J0512149B
- 7Shock Abs 1J0513025BF
- 7Shock Abs 1J0513025BG
- 7Shock Abs 1J0513025DA
- 7Shock Abs 1J0513025DC
- 7Part JZW513025
- 7Part JZW513025D
- 8Bolt N90517304
- 9Collar Nut N10286110
- 10Bearing 1J0513353D
- 10Bearing 1J0513353B
- 11Bolt N90648401
- 12Pipe 1J0513425A
- 12Pipe 1J0513425
- 13Ut Hexagon Nut Self-locking Hexagon Nut N10403701
- 14Part 1H0513269D
Diagrams & fitment data powered by oemdiagrams.com
1J0511115AG Volkswagen Rear Coil Spring | Genuine OEM is fitted on: Golf 1998-2000; New Beetle 1998-2001; GOLF/VAR./4MOT. A4 02 2001-2002; New Beetle 2001-2005; Golf 'R32' n. "USA" 2004-2004; New Beetle 06> 2005-.
