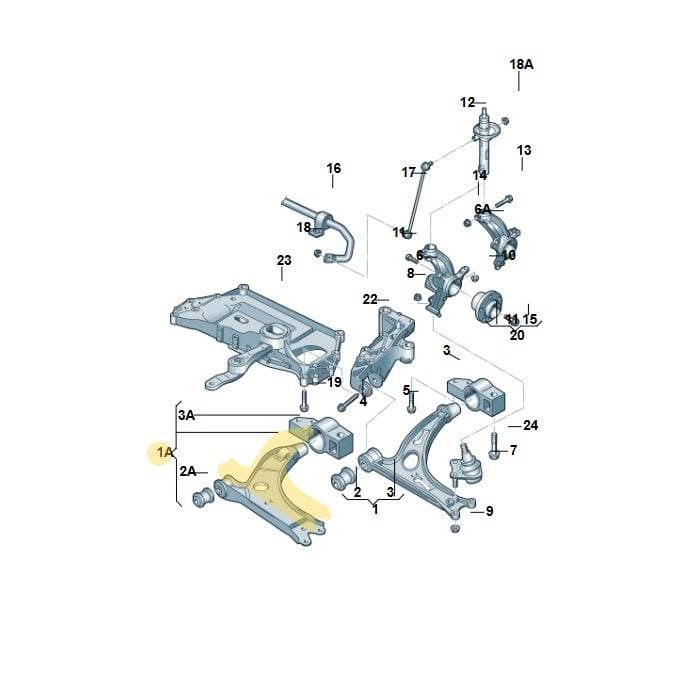

Number 1A marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Wishbone, part number 1K0407151BD. This component connects the steering knuckle to the vehicle frame, allowing for suspension movement and steering control. It is located in the front suspension assembly. The wishbone is typically made of forged steel or aluminum for strength and durability. Genuine OEM wishbones ensure precise fitment and material integrity for optimal suspension performance and longevity.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 41 × 39.5 × 7.8 cm
- Shipping weight
- 3.52 kg
Parts diagram & fitment
15 vehiclesWishbone — locate 1K0407151BD Volkswagen Wishbone | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(35)
- 1PartRight1K0407152AC
- 1PartLeft1K0407151AC
- 1APartLeft1K0407151BC
- 1APartRight1K0407152BC
- 1APartRight1K0407152BD
- 2Rubber Bush 1K0407182
- 3BracketRight1K0199232J
- 3BracketLeft1K0199231J
- 3ABracketLeft1K0199231K
- 3ABracketRight1K0199232K
- 4Bolt N10141003
- 5Bolt N10579702
- 6HousingRight1K0407256T
- 6HousingLeft1K0407255T
- 6AHousingRight1K0407256AA
- 6AHousingLeft1K0407255AA
- 7JointRight1K0407366C
- 7JointLeft1K0407365C
- 8Ut Hexagon Nut Self-locking Hexagon Nut N90942901
- 9Collar Nut N10332002
- 10Ut Hexagon Nut Self-locking Hexagon Nut N90635001
- 11Ball Screw WHT000237C
- 13Bolt N90954802
- 14Collar Nut N10106402
- 15Bolt WHT005437
- 16Stabilizer 1K0411303BJ
- 16Stabilizer 1K0411303BK
- 16Stabilizer 1K0411303BH
- 17Coupl Rod 1K0411315K
- 18Collar Nut N0150816
- 19Bolt N91073401
- 19Bolt N10528602
- 20Wheel Hub 1K0407621E
- 20Wheel Hub 1K0407621F
- 24Bolt N91039802
Compatible / alternative parts(9)
Diagrams & fitment data powered by oemdiagrams.com
1K0407151BD Volkswagen Wishbone | Genuine OEM is fitted on: golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Touran 1.9 2008-2010; Touran 2.0 2010-2015; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013.
