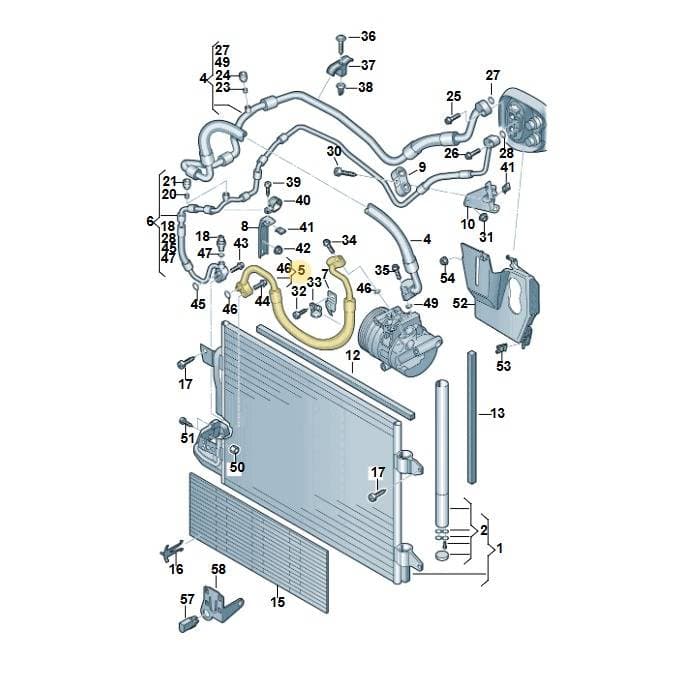

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Hose, part number 1K0820721BE. This hose transports refrigerant between components of the vehicle's air conditioning system, connecting the compressor to the condenser. It is located at position 5 in the diagram. The hose measures approximately 0.573m in length. Genuine OEM refrigerant hoses are designed with specific materials and routing to withstand high pressures and temperatures, ensuring leak-free operation and system efficiency.
Technical details
- Category
- Heating & A/C
- Country of origin
- Poland
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 57.3 × 12 × 3.4 cm
- Shipping weight
- 0.24 kg

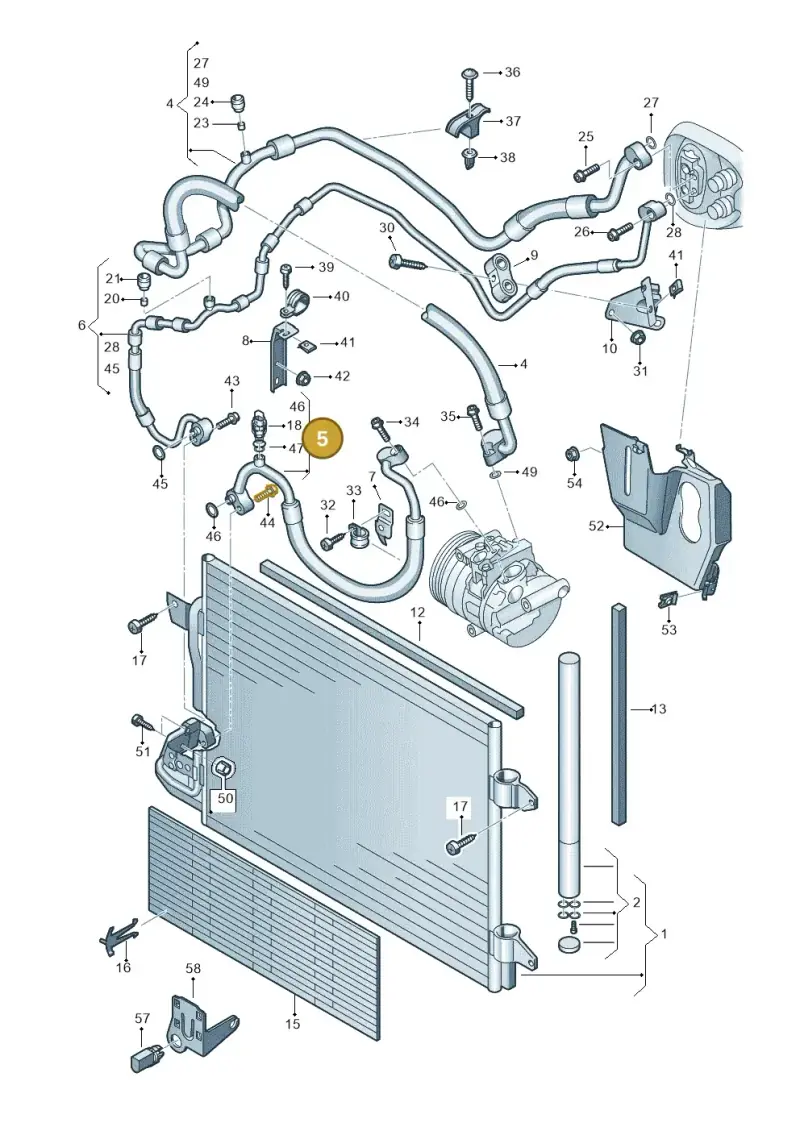

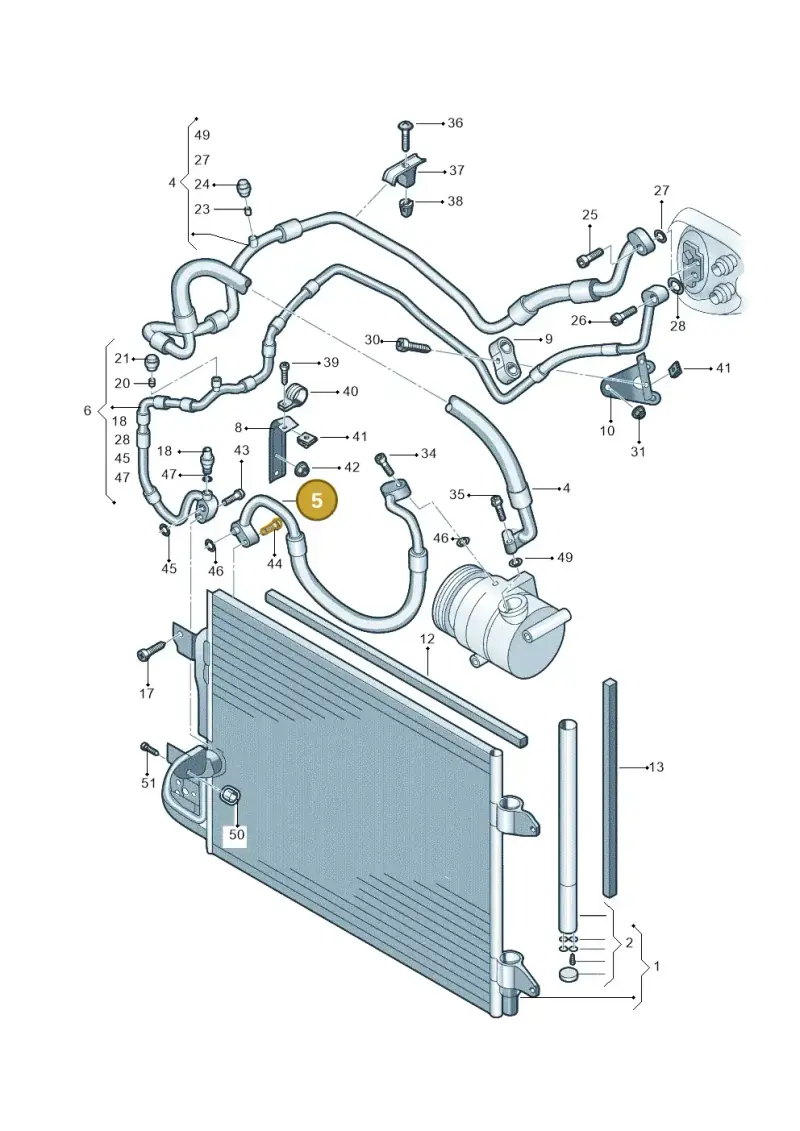

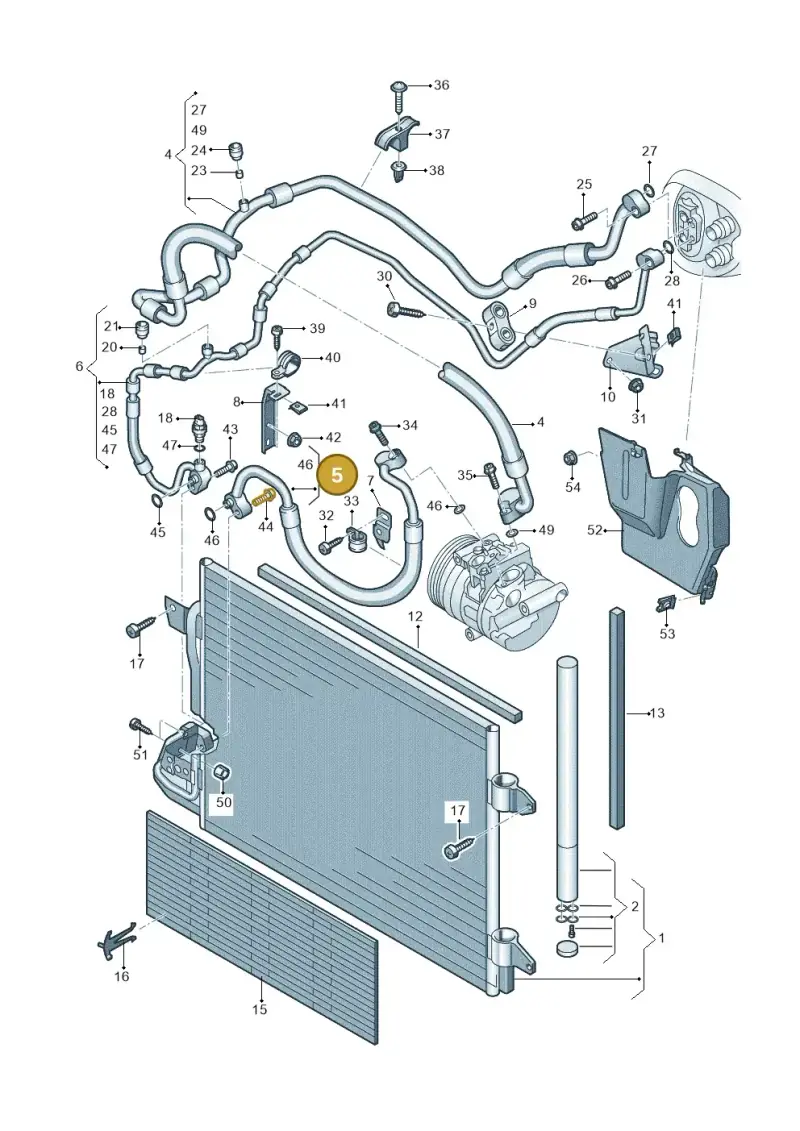

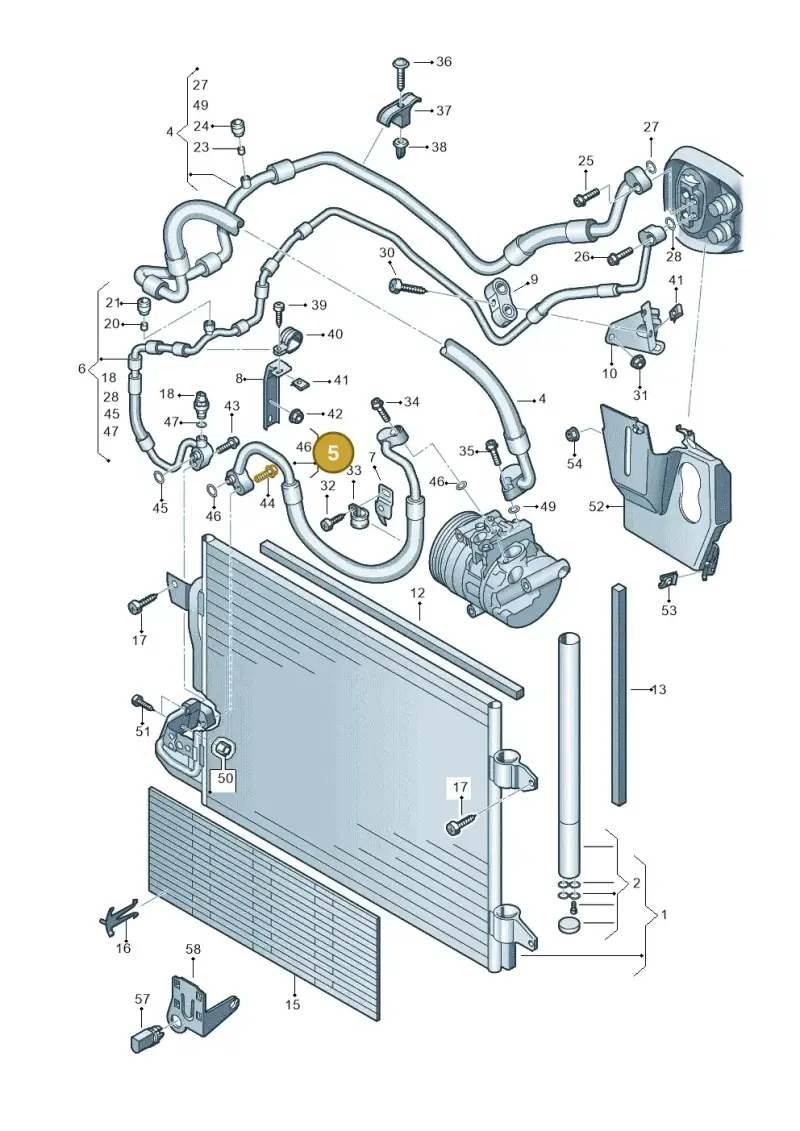

Parts diagram & fitment
35 vehiclesRefrigerant Hose — locate 1K0820721BE Volkswagen Refrigerant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1Condenser 1T0820411E
- 2Part 1T0298403
- 4Hose 1T0820743AK
- 4Hose 1T0820743AL
- 4Hose 1T0820743AM
- 5Hose 1K0820721AK
- 5Hose 1K0820721BD
- 6Hose 1T0820741R
- 6Hose 1T0820741AL
- 7Bracket 1K0820769F
- 8Bracket 1K0820769D
- 9Clip 1J0820774A
- 10Bracket 1K2820769
- 12Seal 321820061D
- 13Seal 321819017
- 15Part 1K0820746
- 16Clip 3D0867646
- 17Bolt N90817003
- 18Sensor 1K0959126B
- 20Valve 8E0820855
- 21Part 8A0820871AB
- 24Part 357820809B
- 25Screw N10414401
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 31Ut Hexagon Nut Self-locking Hexagon Nut N90289102
- 32Screw N0139771
- 33Clamp N0206262
- 36Screw N0439391
- 37Clip 1J0820774
- 38Part 811807577C
- 40Clamp N10236601
- 41PartLeftN90755701
- 42Collar Nut N90175203
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 48Part N90610601
- 49Seal Ring 8E0260749C
- 50Bracket 1K0820758
- 51Screw N10553901
Compatible / alternative parts(5)
Diagrams & fitment data powered by oemdiagrams.com
1K0820721BE Volkswagen Refrigerant Hose | Genuine OEM is fitted on: TOURAN 2003-2005; GOLF 2003-2005; CADDY 2004-; TOURAN (SVW) "CN"04> 2004-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; caddy panel van 2008-2010; Touran 1.9 2008-2010; jetta 2008-2011; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; Golf 2011-2013; Golf Plus 2011-2014; ALTEA 2004-2006; TOLEDO 05> 2004-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; OCTAVIA/COMBI/4X4 04> 2004-; octavia ambiente 2008-2013.
