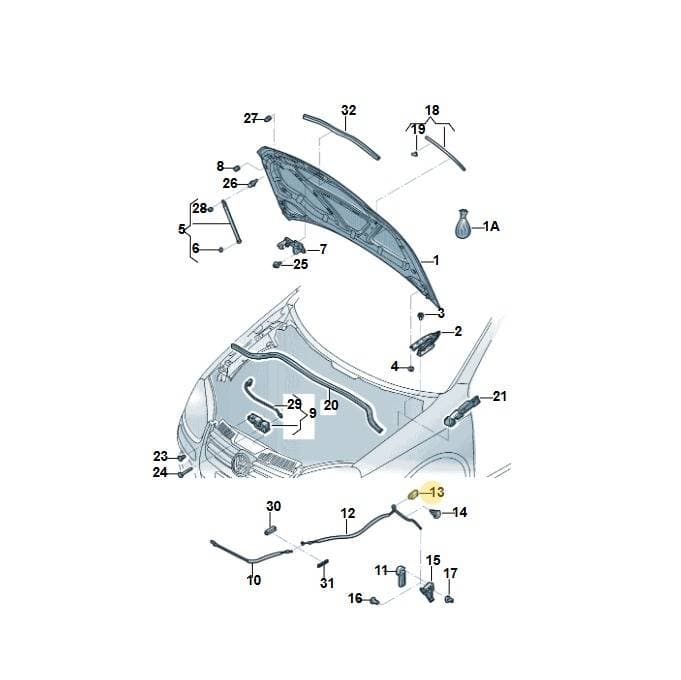

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Grommet, part number 1K1823544. This grommet is a soft ring or seal used to protect or insulate a hole through which a cable or bolt passes. It is located in the engine bay, near the hood hinges. The grommet is made of rubber. Genuine OEM grommets provide a precise fit and durable protection against abrasion and environmental factors.
Technical details
- Category
- Body Exterior
- Country of origin
- Germany
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7.1 × 4.6 × 2.2 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
26 vehiclesGrommet — locate 1K1823544 Volkswagen Grommet | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(38)
- 1Part 1K0823031J
- 1AFixing Set 1K0898615
- 2HingeLeft5K0823301B
- 2HingeRight5K0823302B
- 4Bolt N90822101
- 4APart N90968501
- 5Collar Nut N01508315
- 6G Fill Str 1K0823359A
- 7Clip 443823397
- 8Clip 1H5827905
- 9Stud 1J6827439A
- 12Catch Hook 1K0823480
- 13Bolt N90820401
- 16Buffer 867827500A
- 17LockLeft1K1823509E
- 18Switch 1K0953236D
- 19Bolt N90807301
- 20Bolt N90917701
- 22Lid CableLeft1K1823531C
- 22Lid CableRight1K2823531D
- 22Lid CableRight1K2823531E
- 22Lid CableLeft1K1823531B
- 26HandleRight1J2823533C
- 26HandleLeft1J1823533C
- 27Lid CableRight1K2823535A
- 27Lid CableLeft1K1823535A
- 28GrommetRight1K2823544
- 29Grommet 1K0823591B
- 30BracketRight1K2823633A
- 30BracketLeft1K1823633B
- 31Screw N90548803
- 32Part N90541001
- 33Gasket 1K0823707A
- 34Clip 1H0823717
- 35Seal 1K0823723C
- 36Filler Piece 1K0823729B
- 36Filler Piece 1K0823730B
- 37Bungs 1K0823753
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
1K1823544 Volkswagen Grommet | Genuine OEM is fitted on: GOLF 2003-2005; Jetta "USA"05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; GOLF VARIANT 07> 2007-; Jetta Vagon 08> 2008-; Golf/Rabbit 08> 2007-; golf 2.0 2008-2011; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; Golf Cabriolet 2011-2016; Golf 2011-2013; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; superb comfort 2008-2013; Yeti 2009-2013; Superb Ambition 2009-2015; Yeti 2013-2017; superb 2013-2015.
