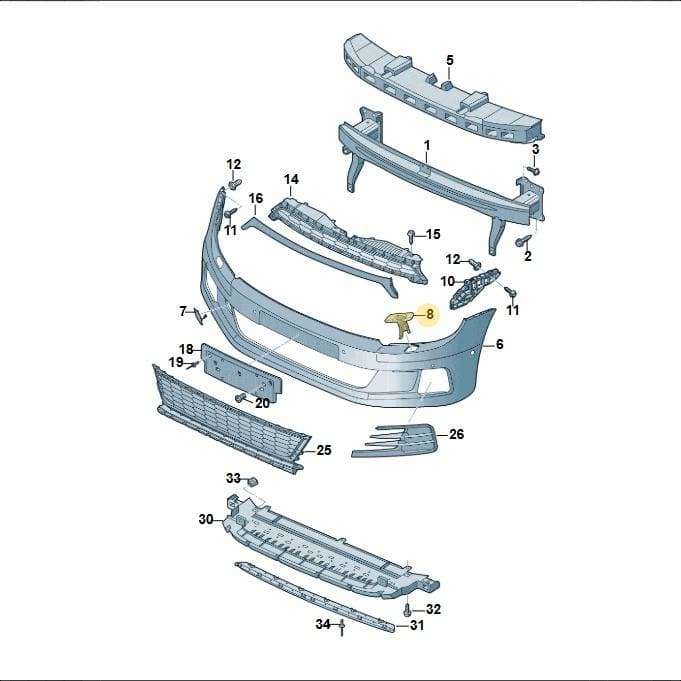

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bumper Guide Frame, part number 1K8807941D. This guide frame is part of the front bumper assembly, ensuring proper alignment and support. It is located at position 8 on the diagram. The part measures 0.175m in length, 0.145m in width, and 0.07m in height, weighing 0.06 kg. Genuine OEM bumper guide frames are manufactured to precise tolerances to ensure correct alignment and secure mounting of the bumper.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17.5 × 14.5 × 7 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
1 vehicleGuide Frame — locate 1K8807941D Volkswagen Bumper Guide Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(31)
- 1Reinforcement 1K8807109D
- 2Bolt N91196402
- 3Bolt N90683306
- 5Filler Piece 1K8807248F
- 5Filler Piece 1K8807248D
- 5Filler Piece 1K8807248G
- 6Part 1K8807217AK
- 6Part 1K8807217Q
- 6Part 1K8807217S
- 6Part 1K8807217T
- 6Trim 1K8807221N
- 7Cover 1K8807241D
- 7Cover 1K8807241C
- 8FrameRight1K8807942C
- 8FrameRight1K8807942D
- 8FrameLeft1K8807941C
- 10ProfileRight1K8807184C
- 10ProfileLeft1K8807183C
- 11Bolt N90974701
- 12Part N90833801
- 18Bracket 1K8807287F
- 18Bracket 1K8807287G
- 18Bracket 1K8807287D
- 19Spring Rivet N0385494
- 20Part N90218403
- 30Spoiler 1K8805903F
- 30Spoiler 1K8805903G
- 30Spoiler 1K8805903E
- 31Support Element 1K8805915C
- 33Part N90959101
- 34Pop Rivet N90346302
Compatible / alternative parts(6)
- PartRight1K8807942D
- Part 1K8807217AK
- PartLeft1K8807183C
- PartRight1K8807184C
- Part 1K8807241D
- Part 1K8807248F
Diagrams & fitment data powered by oemdiagrams.com
1K8807941D Volkswagen Bumper Guide Frame | Genuine OEM is fitted on: Scirocco 2.0 2014-2017.
