1S0816741B Refrigerant Line
€144.34 excl. VAT
- 1S0816741BThis pageNot stocked
Sep 2016 - 1S0816741CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 280 g
- Shipping size (L × W × H)
- 82 × 37 × 27 cm
- Customs (HS) code
- 40091200
Parts diagram & fitment

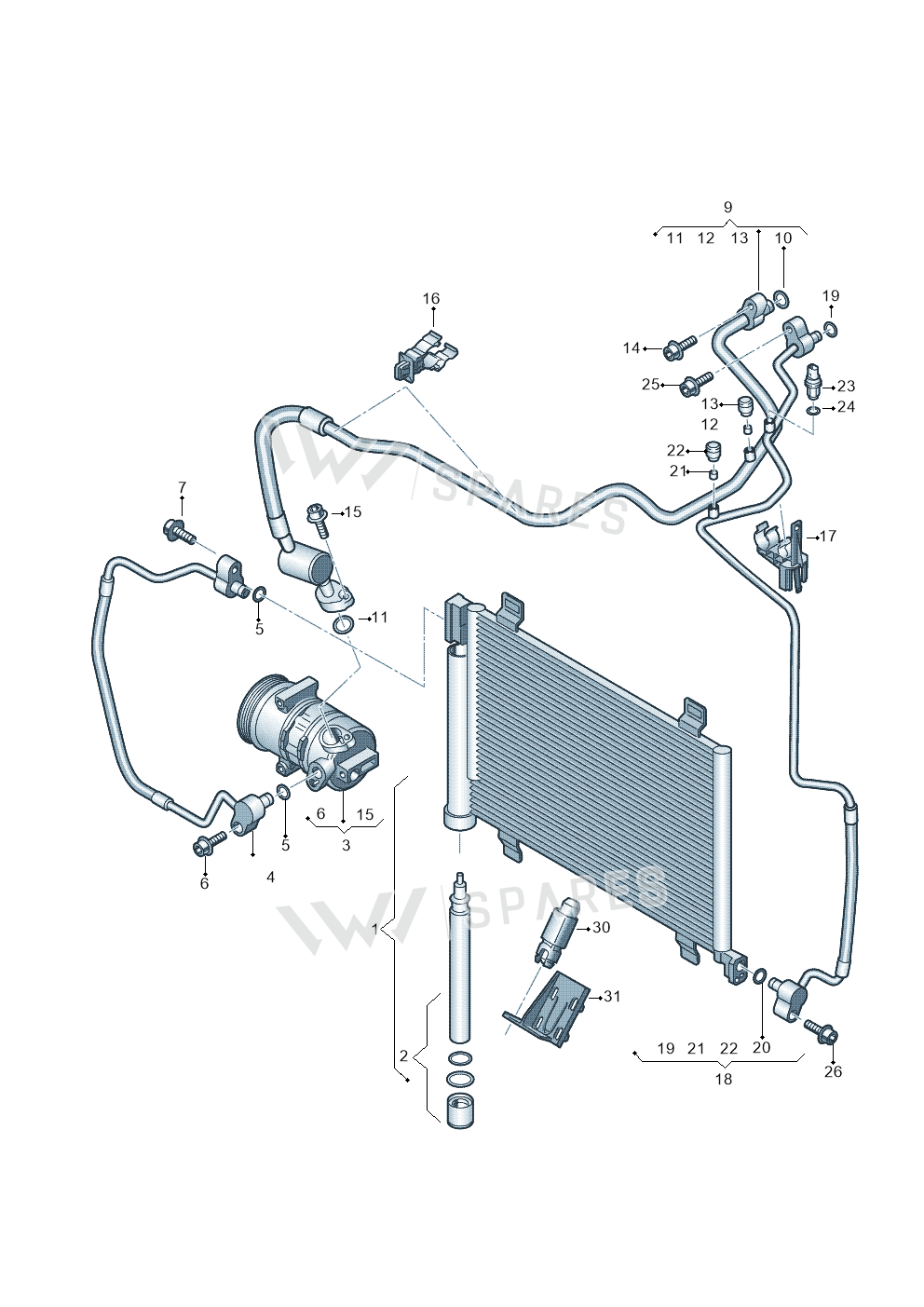

1 vehicleRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1A C Conden 1S0816411
- 1A C Conden 1S0816411A
- 1A C Conden 1S0820411J
- 2Insert 1S0898191
- 4Line 1S0816721A
- 4Line 1S0816721
- 4Line 1S0820721C
- 5Seal Ring 4E0260749A
- 6Screw N10414402
- 9Line 1S0816743B
- 9Line 1S0816743
- 9Line 1S0820743D
- 10Seal Ring 7H0820898
- 11Seal Ring 8E0260749C
- 12Valve 8E0820855
- 13Part 3C0820231
- 16Clip 1S0820055
- 17Bracket 1S0820771
- 18Line 1S0816741
- 18Line 1S0820741B
- 19Seal Ring 8E0260749
- 20Seal Ring 3D0260749C
- 22Part 3C0820581
- 23Sensor 5K0959126
- 30Sensor 8Z0820535
- 31Bracket 1S0820536
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| up! BlueMotion | 2011-2016 | 18 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: up! BlueMotion 2011-2016.
