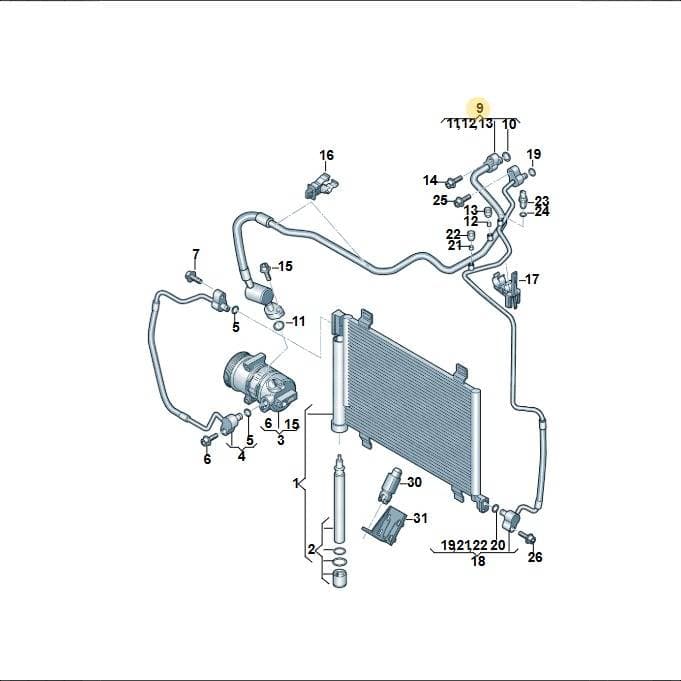

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 1S0816743. This line functions as a conduit that carries refrigerant between components of an air conditioning system. It is located at position 9 in the diagram. Genuine OEM parts are manufactured to exact specifications, ensuring proper flow and preventing leaks in the critical air conditioning system.
Technical details
- Category
- Heating & A/C
- Country of origin
- Czech Republic
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 83 × 56 × 8.5 cm
- Shipping weight
- 0.52 kg
Parts diagram & fitment
4 vehiclesRefrigerant Line — locate 1S0816743 Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1A C Conden 1S0816411
- 1A C Conden 1S0816411A
- 1A C Conden 1S0820411J
- 2Insert 1S0898191
- 4Line 1S0816721A
- 4Line 1S0816721
- 4Line 1S0820721C
- 5Seal Ring 4E0260749A
- 6Screw N10414402
- 9Line 1S0816743B
- 9Line 1S0820743D
- 10Seal Ring 7H0820898
- 11Seal Ring 8E0260749C
- 12Valve 8E0820855
- 13Part 3C0820231
- 16Clip 1S0820055
- 17Bracket 1S0820771
- 18Line 1S0816741B
- 18Line 1S0816741
- 18Line 1S0820741B
- 19Seal Ring 8E0260749
- 20Seal Ring 3D0260749C
- 22Part 3C0820581
- 23Sensor 5K0959126
- 30Sensor 8Z0820535
- 31Bracket 1S0820536
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
1S0816743 Volkswagen Refrigerant Line | Genuine OEM is fitted on: up! BlueMotion 2011-2016; up! 1.0 BlueMotion 2016-2023; Mii reference 2011-2019; Citigo 2011-2019.
