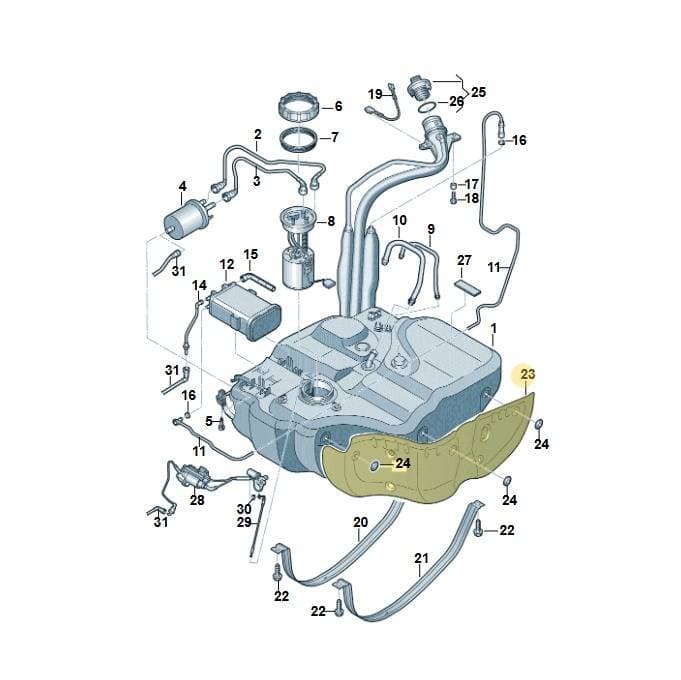

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield Plate, part number 1T0201307C. This heat shield plate protects surrounding components from the high temperatures generated by the exhaust system. It is located in the fuel tank assembly. The part has dimensions of 0.83m length, 0.38m width, and 0.28m height. Genuine OEM heat shield plates are manufactured with precise contours and heat-resistant materials to effectively shield sensitive components.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 83 × 38 × 28 cm
- Shipping weight
- 0.26 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesHeat Sh — locate 1T0201307C Volkswagen Heat Shield Plate | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Fuel Tank 1T0201055G
- 1Fuel Tank 1T0201055E
- 2Fuel Line 1T0201293D
- 3Fuel Line 1T0201294C
- 4Filter 1K0201051K
- 5Screw N90496802
- 6Part 321201375A
- 9Line 1T0201995C
- 10Line 1T0201993E
- 11Pipe 1T0201931F
- 12Container 1T0201801
- 14Line 1T0201160B
- 15Pipe 1T0201336
- 16Clamp N10094901
- 17Bush 1J0201048C
- 18Bolt N90693804
- 19Line 1J0201142A
- 20Strap 1T0201653
- 21Strap 1T0201654
- 22Bolt N10416003
- 24Washer N90335005
- 25Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 26Seal Ring 1K0201557A
- 27Insulation 1T0201535
- 28Part 1T0201607AF
- 28Part 1T0201607L
- 29Pipe 1T0201235B
- 30Clamp N10203501
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Touran 2.0 | 2010-2015 | 23, 11 | 1 |
| Touran 1.9 | 2008-2010 | 18 | 1 |
| TOURAN | 2006- | 18 | 1 |
| TOURAN | 2005-2006 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1T0201307C Volkswagen Heat Shield Plate | Genuine OEM is fitted on: Touran 2.0 2010-2015; Touran 1.9 2008-2010; TOURAN 2006-; TOURAN 2005-2006.
