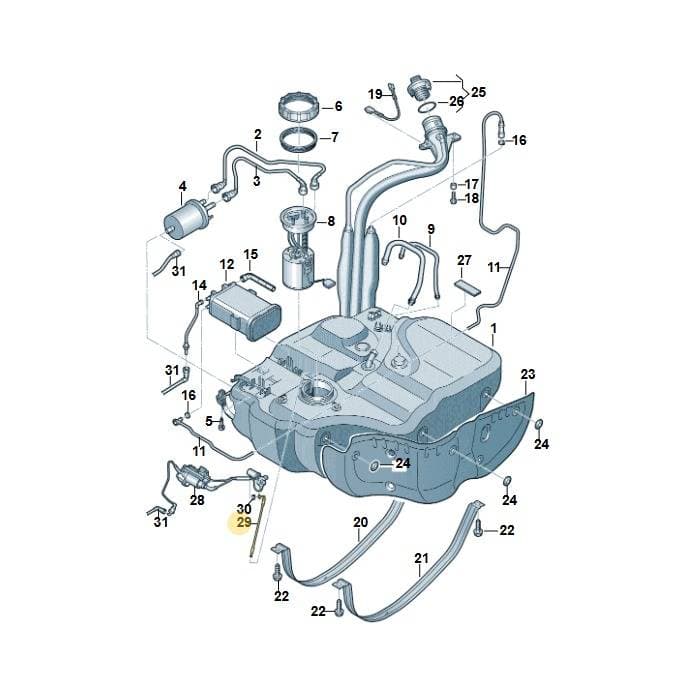

Number 29 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Pipe, part number 1T0201235B. This pipe is essential for transporting fuel from the tank to the engine's fuel injection system. It is identified as item 29 in the diagram. Genuine OEM fuel pipes are manufactured to exact specifications for proper routing and to prevent leaks, ensuring safe and efficient fuel delivery.
Technical details
- Category
- Fuel System
- Country of origin
- European Union
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 22.9 × 3.4 × 1.4 cm
- Shipping weight
- 0.01 kg
Parts diagram & fitment
2 vehiclesFuel Pipe — locate 1T0201235B Volkswagen Fuel Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Part 1T0201055E
- 1Part 1T0201055F
- 1Part 1T0201055G
- 1Container 1T0201055D
- 2Part 321201375A
- 3Seal Ring 1J0919133A
- 3Seal Ring 1T0919133D
- 4Filter 1K0201051K
- 4Filter 6Q0201051J
- 8Screw N90496802
- 12Line 1T0201993C
- 12Line 1T0201993E
- 13Pipe 1T0201994B
- 14Line 1T0201995C
- 15Pipe 1T0201931F
- 17Clamp N10094901
- 18Heat Sh 1T0201307C
- 19Washer N90335005
- 20Line 1J0201142A
- 21Insulation 1T0201535
- 22Container 1T0201801
- 23Strap 1T0201655
- 24Strap 1T0201654
- 25Bolt N10416003
- 26Bolt N90999502
- 27Pipe 1T0201336
- 28Line 1T0201160B
- 30Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 30Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 33Fuel Line 1T0201293F
- 33Fuel Line 1T0201293D
- 34Fuel Line 1T0201294C
- 35Part 1T0201607AF
- 35Part 1T0201607K
- 35Part 1T0201607M
- 35Part 1T0201607J
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
1T0201235B Volkswagen Fuel Pipe | Genuine OEM is fitted on: Touran 1.9 2008-2010; Touran 2.0 2010-2015.
