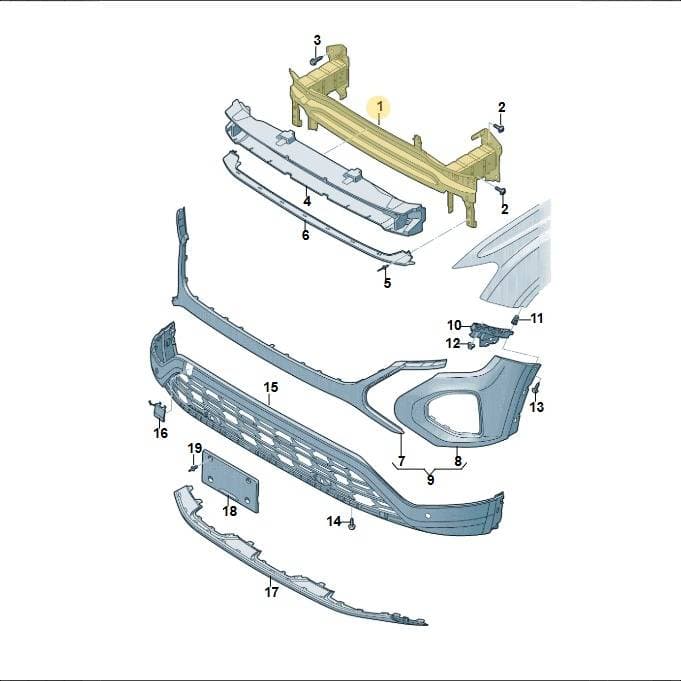

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Side Reinforcement, part number 3CM807109E. This reinforcement provides structural support to the side of the vehicle's body, particularly around the bumper area, contributing to overall body rigidity and crash safety. It is located as part 1 in the diagram. This part weighs 10.183 kg and has dimensions of 1.195m x 0.415m x 0.29m. Genuine OEM side reinforcements are manufactured to precise specifications for optimal structural integrity and safety.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87081090
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 119.5 × 41.5 × 29 cm
- Shipping weight
- 10.18 kg
Parts diagram & fitment
3 vehiclesSide Reinforcement — locate 3CM807109E Volkswagen Side Reinforcement | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Reinforcement 3CM807109F
- 2Bolt N90993603
- 3Bolt N91196402
- 4Filler Piece 3CM807248A
- 5Pop Rivet N90528204
- 6Cross Member 3CM807651A
- 7Trim 3CN807221F
- 8LiningRight3CN807796
- 8LiningLeft3CN807795
- 10Profile 3CN807050B
- 10Profile 3CN807049B
- 11Part WHT004694
- 12Collar Nut N90757901
- 13Bolt WHT003954
- 14Bolt N90974701
- 15Spoiler 3CM805901C
- 15Spoiler 3CM805901D
- 16Underrun 3CM807531
- 17Underrun 3CM807532D
- 18Bracket 3CN807287L
- 19Spring Rivet N0385494
Diagrams & fitment data powered by oemdiagrams.com
3CM807109E Volkswagen Side Reinforcement | Genuine OEM is fitted on: Atlas Cross Sport 2023-; Atlas 2023-2024; Atlas 2016-2023.
