Target · Diagram
Find this reference above

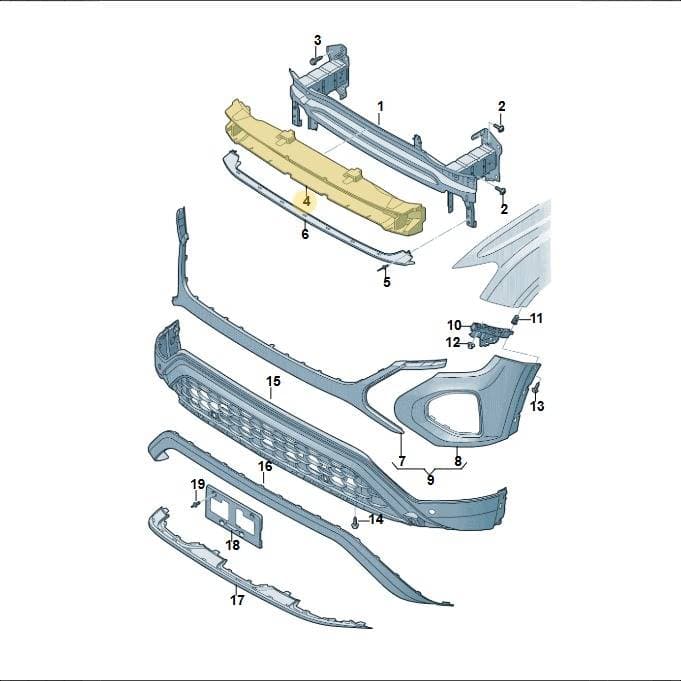

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Front Bumper Foam Insert, part number 3CM807248A. This foam piece is located within the front bumper assembly to aid in impact absorption. Genuine OEM parts ensure correct density and fit for optimal performance.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87081090
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.33 kg
Parts diagram & fitment
2 vehiclesFoam Filler Piece — locate 3CM807248A Volkswagen Front Bumper Foam Insert | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Reinforcement 3CM807109E
- 1Reinforcement 3CM807109F
- 2Bolt N90993603
- 3Bolt N91196402
- 5Pop Rivet N90528204
- 6Cross Member 3CM807651A
- 7Trim 3CN807221F
- 8LiningRight3CN807796
- 8LiningLeft3CN807795
- 10Profile 3CN807050B
- 10Profile 3CN807049B
- 11Part WHT004694
- 12Collar Nut N90757901
- 13Bolt WHT003954
- 14Bolt N90974701
- 15Spoiler 3CM805901C
- 15Spoiler 3CM805901D
- 16Underrun 3CM807531
- 17Underrun 3CM807532D
- 18Bracket 3CN807287L
- 19Spring Rivet N0385494
Diagrams & fitment data powered by oemdiagrams.com
3CM807248A Volkswagen Front Bumper Foam Insert | OEM is fitted on: Atlas Cross Sport 2023-; Atlas 2023-2024.
