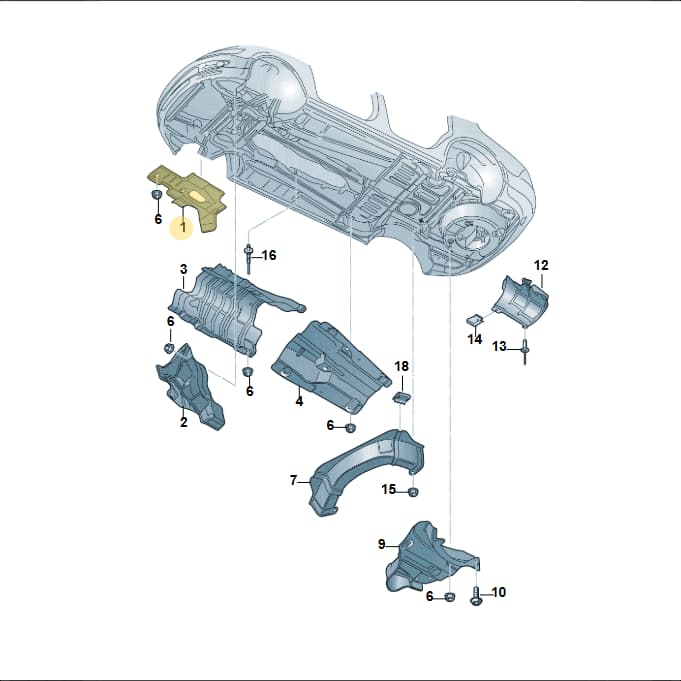

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen heat insulation sheet, part number 3D0825641G. This component serves as a heat shield, protecting sensitive underbody parts from excessive heat generated by the engine or exhaust system. It is mounted to the side member of the vehicle's chassis. Constructed from robust materials designed to withstand high temperatures and environmental exposure. Genuine OEM parts ensure precise fitment and effective thermal protection.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 80 × 40 × 8 cm
- Shipping weight
- 0.29 kg
Parts diagram & fitment
4 vehiclesHeat Shield For Side Member — locate 3D0825641G Volkswagen Heat Insulation Sheet | Underbody in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(22)
- 1PartRight3D0825642F
- 2PartRight3D0825662F
- 2PartLeft3D0825661D
- 3Part 3D0825682C
- 3Heat Sh 3D0825682D
- 4Part 3D0825691A
- 4Part 3D0825691B
- 4Heat Sh 3D7825691
- 4Heat Sh 3D7825691B
- 6Part N90708802
- 7Heat Sh 3D0825705B
- 8Clip N90245502
- 9PartLeft3D0825711D
- 9PartRight3D0825712E
- 10Bolt N90897401
- 12Heat ShLeft3D5825715B
- 12Heat ShRight3D5825716C
- 12Heat ShLeft3D5825715C
- 13Pop Rivet N90346302
- 14Clip N90531902
- 15Collar Nut N90880201
- 16Poprivet N90716103
Diagrams & fitment data powered by oemdiagrams.com
3D0825641G Volkswagen Heat Insulation Sheet | Underbody is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
