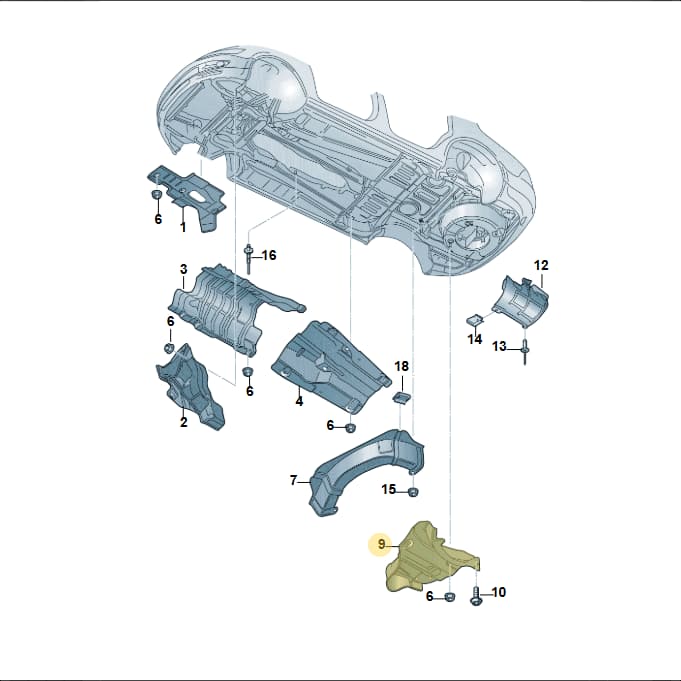

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Insulation Sheet, part number 3D0825712E. This heat shield is designed to protect components from the high temperatures generated by the exhaust system, specifically located near the rear silencer. It is positioned in the underbody assembly. Constructed from robust materials to ensure longevity and effective heat dissipation. Genuine OEM parts are manufactured to exact specifications for optimal fit and performance, ensuring reliable protection against extreme heat.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 75 × 62 × 34 cm
- Shipping weight
- 0.9 kg
Parts diagram & fitment
4 vehiclesHeat Shield For Rear Silencer — locate 3D0825712E Volkswagen Heat Insulation Sheet | Rear Silencer in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(22)
- 1PartLeft3D0825641G
- 1PartRight3D0825642F
- 2PartRight3D0825662F
- 2PartLeft3D0825661D
- 3Part 3D0825682C
- 3Heat Sh 3D0825682D
- 4Part 3D0825691A
- 4Part 3D0825691B
- 4Heat Sh 3D7825691
- 4Heat Sh 3D7825691B
- 6Part N90708802
- 7Heat Sh 3D0825705B
- 8Clip N90245502
- 9PartLeft3D0825711D
- 10Bolt N90897401
- 12Heat ShLeft3D5825715B
- 12Heat ShRight3D5825716C
- 12Heat ShLeft3D5825715C
- 13Pop Rivet N90346302
- 14Clip N90531902
- 15Collar Nut N90880201
- 16Poprivet N90716103
Diagrams & fitment data powered by oemdiagrams.com
3D0825712E Volkswagen Heat Insulation Sheet | Rear Silencer is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
