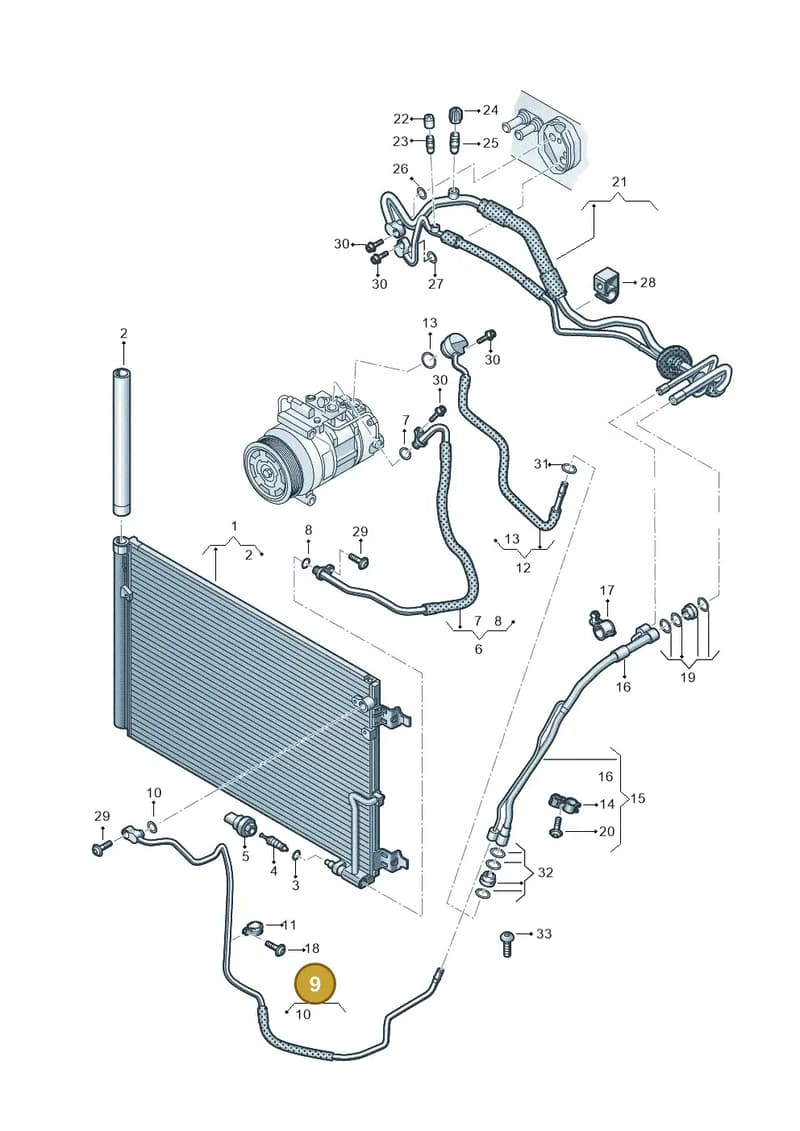

Number 9 marks the part’s position in the exploded view (Audi A8 (2013-2018)).
Product overview
Genuine OEM Audi Refrigerant Line, part number 4H0260710AR. Fits Audi A8 (2013-2018). Shown as position 9 in the fuel, exhaust and cooling diagram 771260650.
Catalogue entry: LINE ×X.
Fitted with: 4H0260710R LINE, N10347204 BOLT.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Audi 771260650, position 9
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleRefrigerant Line — locate 4H0260710AR Audi Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Capacitor 4H0260403E
- 1Capacitor 4H0260403J
- 1Capacitor 4H0260403L
- 1Capacitor 4H0260403C
- 2Insert 4H0298403
- 3Seal Ring 7H0820896
- 4Valve 8A0820855AA
- 5Sender 4H0959126B
- 5Pressure 4H0959126A
- 6Hose 4H0816721D
- 6Hose 4H0260701N
- 7Seal Ring 4E0260749A
- 8Seal Ring 4E0260749B
- 9Line 4H0260710R
- 11Bracket N0206227
- 12Line 4H0260707BC
- 12Line 4H0260707R
- 13Seal Ring 8E0260749C
- 14Bracket 4H0260759H
- 15Pipe 4H0260712M
- 15Pipe 4H0260712H
- 16Ring 4F0130722C
- 17Bracket 4H0260835C
- 18Bolt N90797601
- 19Repair Kit 8K0298260B
- 19Repair Kit 8K0298260A
- 20Part 4B0201441
- 21PipeLeft4H1816713B
- 21PipeRight4H2260713M
- 21PipeRight4H2816713
- 21PipeLeft4H1260713R
- 22Part 5Q0816581A
- 22Part 3D0820581
- 23Valve 3D0820855A
- 23Insert 3D0820855
- 24Part 5Q0816231A
- 24Part 3C0820231
- 25Valve 8E0820855
- 27Seal Ring 3D0260749C
- 28Bracket 4H0260913
- 28Cable Tie N90643701
- 29Bolt N10347204
- 30Screw N10414402
- 31Part 4E0260749C
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8L qu. 3.0 TDI | 2013-2018 | 9 | X |
Diagrams & fitment data powered by oemdiagrams.com
4H0260710AR Audi Refrigerant Line is fitted on: Audi A8L qu. 3.0 TDI 2013-2018.
