Product overview
Genuine OEM Audi Fuel Tank Heat Shield Plate, part number 4K0201308K. This protective plate is designed to shield the fuel tank from excessive heat, which can originate from the exhaust system or other underbody components. It is mounted directly underneath the fuel tank. Weighing approximately 0.713 kg, this shaped plate provides crucial thermal insulation. Choosing a genuine OEM heat shield ensures proper material composition, precise contours for effective heat deflection, and secure mounting, which is vital for vehicle safety and fuel system integrity.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 67 × 48 × 29 cm
- Shipping weight
- 0.71 kg
Parts diagram & fitment

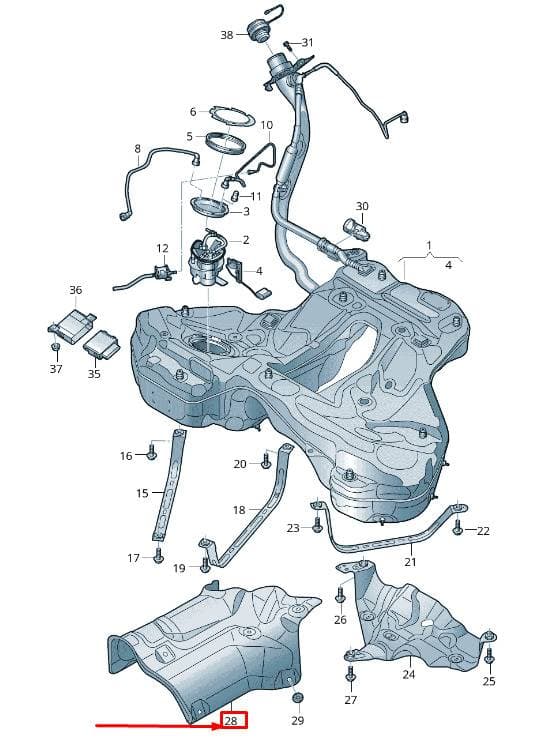

4 vehiclesHeat Sh — locate 4K0201308K Audi Fuel Tank Heat Shield Plate | Underbody in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Container 4K0201060AK
- 1Container 4K0201060BE
- 1Container 4K0201060K
- 2Module 4K0919087G
- 2Module 4K0919087K
- 2Module 4K0919087P
- 3Flange 4K0201317B
- 4Sender 4K0919047
- 5Seal Ring 1K0919133D
- 6Part 1K0201375
- 8Fuel Line 4K0201220H
- 8Fuel Line 4K0201220J
- 15Strap 4K0201654D
- 16Screw N91165402
- 18Strap 4K0201654E
- 20Screw N91264001
- 21Strap 4K0201654F
- 24Plate 4K0201781A
- 29Washer N90335004
- 30Bracket 4K0201710J
- 31Bolt N91042301
- 35Control Unit 4K0906121A
- 35Control Unit 4K0906121B
- 35Control Unit 4K0906121C
- 35Control Unit 4K0906121D
- 36Retainer 4K0907731A
- 37Ut Hexagon Nut Self-locking Hexagon Nut N02300213
- 38Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550H
- 38Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550D
- 45Clip 443809948
Diagrams & fitment data powered by oemdiagrams.com
4K0201308K Audi Fuel Tank Heat Shield Plate | Underbody is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-.
