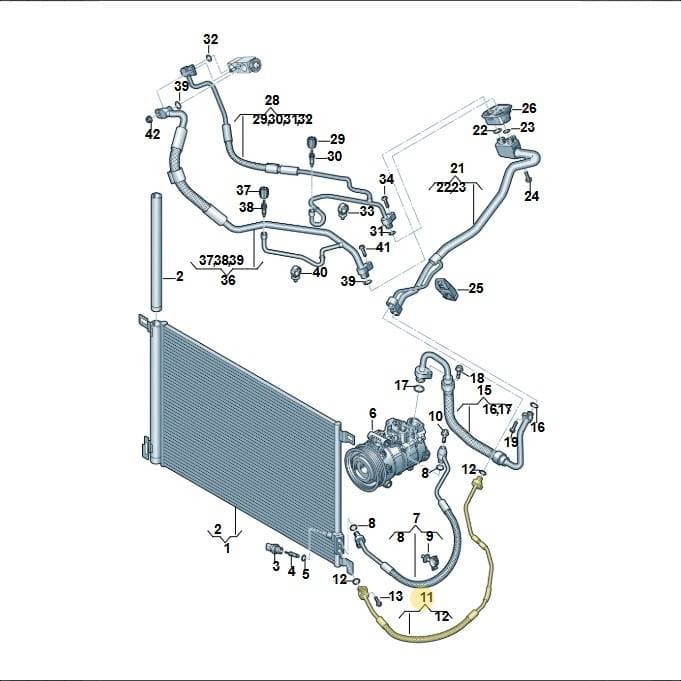

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 4M0816741G. This sleeve is designed to protect nearby components from the heat generated by the refrigerant line within the air conditioning system. It is located at position 11 in the AC system diagram. The sleeve measures 0.54 meters in length. Genuine OEM heat protection sleeves ensure precise fitment and material integrity to effectively shield sensitive components from heat.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 54 × 46 × 8 cm
- Shipping weight
- 0.22 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 4M0816741G Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2022-02-01); contact us to check current availability.
Parts in this assembly40
- 1A C Conden 4M0816411M
- 1Condenser 4M0816421B
- 1A C Conden 4M0816421C
- 1Condenser 4M0816421D
- 2Insert 4M0298403
- 3Sender 4H0959126C
- 3Sender 4H0959126B
- 4Valve 8A0820855AA
- 5Seal Ring 7H0820896
- 6Line 4M0816721BB
- 6Line 4M0816721BC
- 6Part 4M0816721BN
- 6Water Pipe 4M0816721DB
- 6Line 4M0816721DF
- 6Line 4M0816721DG
- 6Part 4M0816721DH
- 6Line 4M0816721DM
- 6Line 4M0816721G
- 6Line 4M0816721BA
- 7Seal Ring 4E0260749A
- 8Line 4M0816741CN
- 8Line 4M0816741CP
- 8Line 4M0816741CT
- 8Water Pipe 4M0816741DA
- 8Line 4M0816741DB
- 8Line 4M0816741CL
- 9Seal Ring 3D0260749C
- 12Water Pipe 4M0816743AC
- 12Line 4M0816743BS
- 12Line 4M0816743CH
- 12Line 4M0816743CL
- 12Line 4M0816743G
- 12Line 4M0816743BD
- 13Seal Ring 4E0260749B
- 14Seal Ring 8E0260749C
- 15Bolt N10632102
- 16Screw N10414402
- 17Screw N10582103
- 18Bracket 4M0820055
- 18Bracket 8D0971897A
Compatible / alternative parts(1)
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 8 | 1 | PR:0K0,0K4+ | |
| touareg | 2017-2023 | 11 | 1 | T9I |
