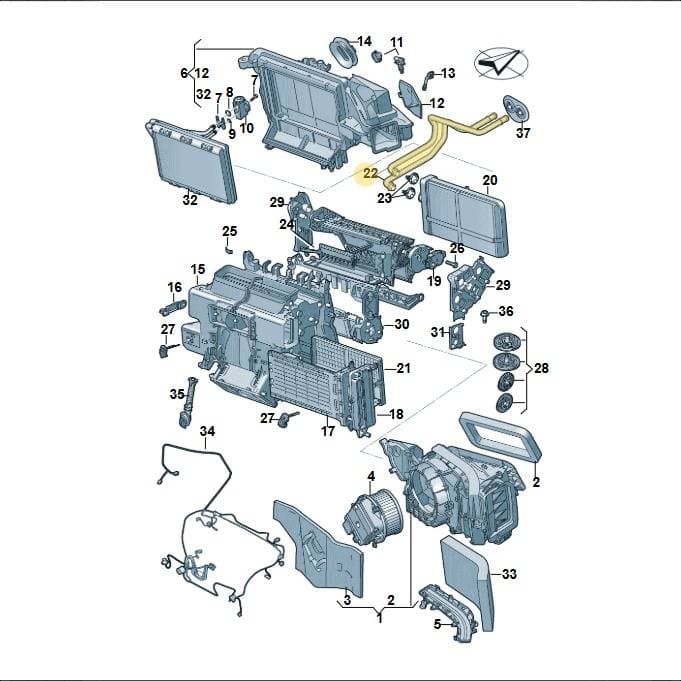

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heatexchanger Pipes Set, part number 4M1898037. These pipes connect the heatexchanger to the cabin's heating system for effective climate control. They are part of the HVAC system. Exact fit for proper function.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84159000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 36 × 23 × 15 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
19 vehicles1 Set: Pipes For Heat Exchanger — locate 4M1898037 Volkswagen Heatexchanger Pipes Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(41)
- 1Housing 4N0820356
- 1Housing 4M0820356
- 1Sensor 4N0907643A
- 2Screw N10508903
- 3Hose 4N0907843A
- 3Heater 8W0819011
- 4Cover 8W0819422
- 4Adapter 4K0820765
- 4Cover 4M0819422
- 5Servomotor 4M0820511A
- 6Heat Exch 4M0898037C
- 7Filler Piece 4M0819593
- 8PipeRight4M2898037
- 9Parts Set 4M0898037B
- 10Repair Kit 4M0898001A
- 10Repair Kit 4M0898001
- 11Ten Spring 8K0898540A
- 12Bolts 8K0898540
- 13Temperature Sensor 6Q0820539
- 14Repair Kit 4M0898967A
- 14For Airbag: 4M0898967
- 15For Airbag:Left4M1898333B
- 15For Airbag:Left4M1898333C
- 15For Airbag:Right4M2898333
- 15For Airbag:Right4M2898333A
- 15For Airbag:Right4M2898333B
- 15For Airbag:Right4M2898333C
- 15Repair KitLeft4M1898333
- 15For Airbag:Left4M1898333A
- 16For Airbag: 4M0898333B
- 16For Airbag: 4M0898333
- 17Repair Kit 4N0898333
- 18Hose 8W0260113
- 19Grommet 8W0819699
- 20Wiring Set 4M1971569F
- 20Wiring Set 4M1971569
- 21Part 1K0972928
- 22Part 8K0973754
- 23Part 1H0972702A
- 25Part 8W0971832
- 30Bolt N91237801
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
4M1898037 Volkswagen Heatexchanger Pipes Set | Genuine OEM is fitted on: Audi A7 2021-; Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
