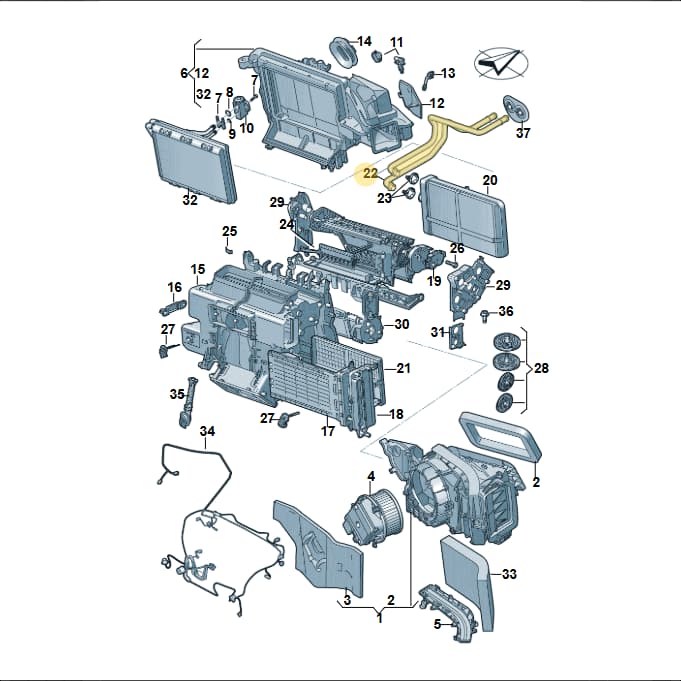

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Heater Core Tube Set, part number 4M2898037. This set of tubes is a critical component within the vehicle's heating and air conditioning system, responsible for circulating coolant to and from the heater core. It ensures efficient heat exchange to warm the cabin air. The tubes are precisely formed to fit within the HVAC assembly. Constructed from durable materials, this set weighs approximately 0.149 kg and measures 0.335 meters in length. Using genuine OEM tubes guarantees correct routing, leak-free connections, and optimal performance of the climate control system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84159000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33.5 × 17 × 11 cm
- Shipping weight
- 0.15 kg
Parts diagram & fitment
18 vehicles1 Set: Pipes For Heat Exchanger — locate 4M2898037 Audi Heater Core Tube Set | HVAC System in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(34)
- 1HousingLeft4M1820024B
- 1HousingRight4M2820024B
- 2SealLeft4M1819229
- 2SealRight4M2819229
- 4EngineLeft8B1820021
- 4EngineRight8B2820021
- 5CoverLeft4M1819422
- 5CoverRight4M2819422
- 6HousingLeft4M1820023B
- 6HousingRight4M2820023B
- 7Bolt N90967702
- 10Expans Val 8B3816679C
- 11Repair Kit 4M0898333A
- 13Temperature Sensor 8K0820539
- 14Grommet 4M0820751
- 15Housing 8B3820356
- 15Housing 8B3820356A
- 17Heater 8W0819011B
- 18Cover 4M0819422
- 18Cover 8W0819422
- 19Servomotor 85E820511
- 20Heat Exch 8B3820037
- 20Heat Exch 8B3820037A
- 21Filler Piece 4M0819593
- 22PipeLeft4M1898037
- 23Parts Set 4M0898037B
- 27Temperature Sensor 6Q0820539
- 29Repair Kit 8B2898333
- 33Od Filter 4M0819439B
- 34Wiring Set 4M1971569
- 34Wiring Set 8W0971569
- 35Hose 8W0260113
- 36Bolt N91237801
- 37Grommet 8W0819699
Diagrams & fitment data powered by oemdiagrams.com
4M2898037 Audi Heater Core Tube Set | HVAC System is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
