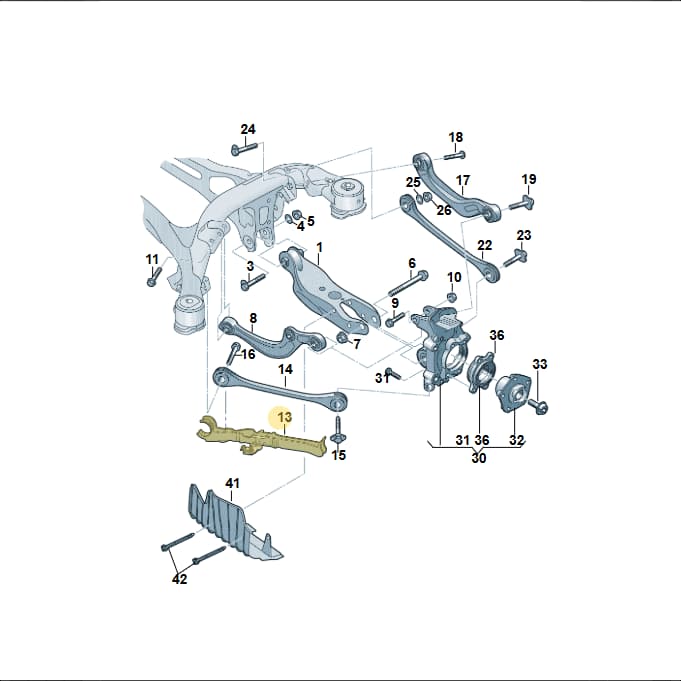

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Stone Chip Guard, part number 4N0505562A. This protective component is designed to shield critical vehicle parts from damage caused by stone chips, gravel, and other road debris. It is installed on the right side of the vehicle. Weighing approximately 0.1875 kg and measuring 0.385 m in length, this guard ensures long-term protection. Using a genuine OEM stone chip guard ensures proper fitment and durable material quality to withstand harsh road conditions.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38.5 × 24 × 9 cm
- Shipping weight
- 0.19 kg
Parts diagram & fitment
2 vehiclesStone Chip Guard — locate 4N0505562A Audi Stone Chip Guard | Right Side in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(47)
- 1Wishbone 4M0505311J
- 3Bolt WHT007092A
- 4Washer WHT007043A
- 5Ut Hexagon Flange Nut Self-locking Hexagon WHT007610
- 5Ut Hexagon Flange Nut Self-locking Hexagon WHT010234
- 5Ut Hexagon Flange Nut Self-locking Hexagon WHT010332
- 6Bolt N91236301
- 8Wishbone 4M0505323G
- 9Screw N91237101
- 10Collar Nut N10106403
- 11Bolt N91228901
- 13Stone ChipLeft4N0505561A
- 14WishboneRight4N0505292
- 14WishboneLeft4N0505291
- 15Socket WHT007096
- 17WishboneRight4M0505398P
- 17WishboneRight4M0505398R
- 17WishboneLeft4M0505397P
- 17WishboneLeft4M0505397R
- 18Screw N91229001
- 19Screw WHT006496
- 22Track Rod 4M0501529L
- 22Track Rod 4M0501530Q
- 22Track Rod 4M0501529Q
- 24Bolt WHT007090A
- 25Washer WHT007041A
- 26Ut Hexagon Flange Nut Self-locking Hexagon WHT007828
- 30HousingRight4M0505432AE
- 30HousingRight4M0505432AF
- 30HousingRight4M0505432AK
- 30HousingRight4M0505432AM
- 30HousingLeft4M0505431AE
- 30HousingLeft4M0505431AF
- 30HousingLeft4M0505431AK
- 30HousingLeft4M0505431AM
- 31Screw WHT006966
- 32Wheel Hub 4M0501652A
- 32Wheel Hub 8W0407613
- 33Screw 8E0407643A
- 36Bearing 4M0407625E
- 36Bearing 8W0407625G
- 36Bearing 8W0407625N
- 41Stone ChipRight4M0505416C
- 41DeflectorLeft4M0505415C
- 41Stone ChipLeft4M0505415D
- 42Part 4KE512182
- 42Part 80A512182
Diagrams & fitment data powered by oemdiagrams.com
4N0505562A Audi Stone Chip Guard | Right Side is fitted on: touareg 2017-2023; Audi A8L 2017-2022.
