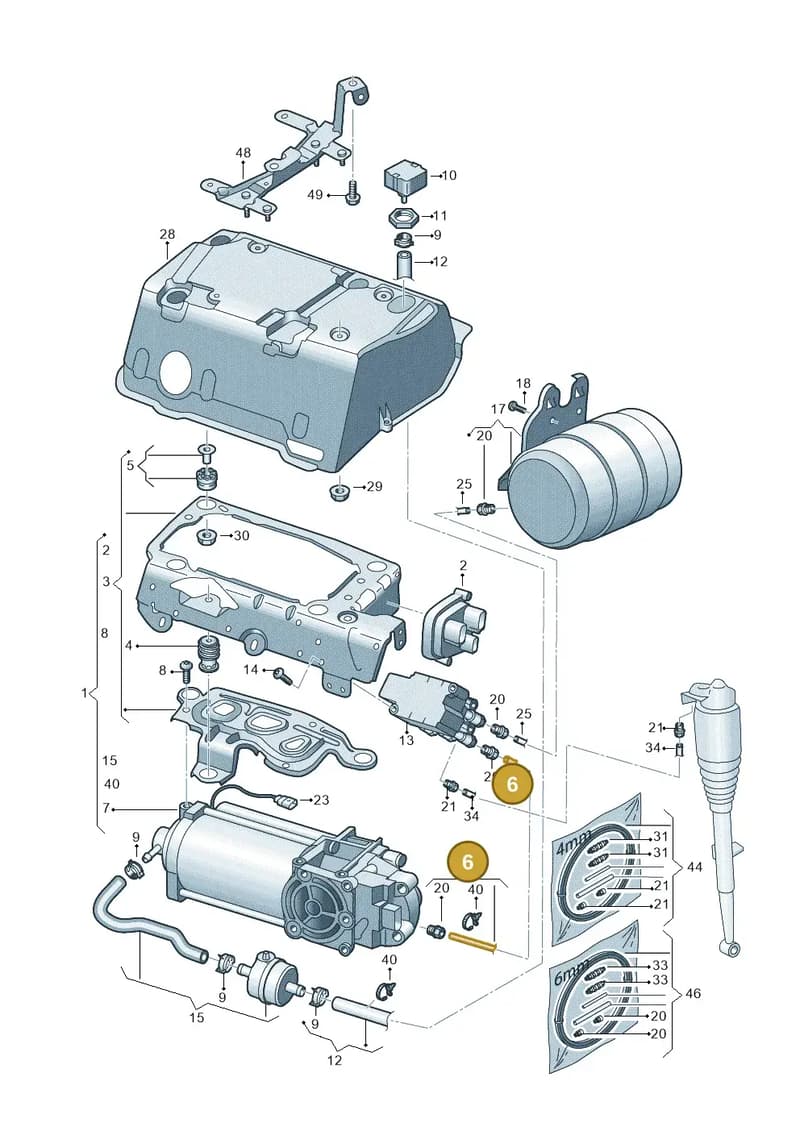

Number 6 marks the part’s position in the exploded view (Audi A8 (2017-2025)).
Product overview
Genuine OEM Audi Repair Set for Air Channel, part number 4N0616703. Fits Audi A8 (2017-2025). Shown as position 6 in the wheels and brakes diagram 838616300.
Catalogue entry: REP.SET 6MM; brown; contains: 7L0 616 758.
Fitted with: 4N0616005C ASSEMBLY, 4N0616005D ASSEMBLY, N90686701 CLAMP, N10721401 SCREW.
Technical details
- Category
- Electrical & Wiring
- Diagram sheet
- Audi 838616300, position 6
- ETKA group
- 6 / 16 (616)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 6 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleRepair Set For Air Channel — locate 4N0616703 Audi Repair Set for Air Channel in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Assembly 4N0616005D
- 1Assembly 4N0616005C
- 2Control Unit 4M0907778
- 3Repair Kit 4N0698999
- 4Repair Kit 4H0698505
- 5Repair Kit 4H0698649
- 9Clamp N90686701
- 10Exhaust Si 4M0616010B
- 11Part WHT004143
- 12Hose 4N0616091F
- 12Hose 4N0616091D
- 13Valve Unit 4N0616013A
- 13Valve Unit 4N0616013
- 14Screw N10721401
- 15Repair Kit 4N0698030
- 17Press Res 4N0616203C
- 18Bolt N90780901
- 20Connection 7L0616758
- 21Connection 4B0616751
- 23Housing 3B0973852A
- 28Insulation 4N0616114B
- 28Insulation 4N0616114C
- 29Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 30Ut"hex Nut Self-locking With Washer Hex Nut N90570805
- 31Connection 4F0616241
- 33Connector 7L0616829
- 40Cable Tie 4F0971850A
- 44Rep Set 4M0698141
- 46Rep Set 4M0698141A
- 48Bracket 4N0616254A
- 49Bolt N10684301
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A8L | 2017-2022 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
4N0616703 Audi Repair Set for Air Channel is fitted on: Audi A8L 2017-2022.
