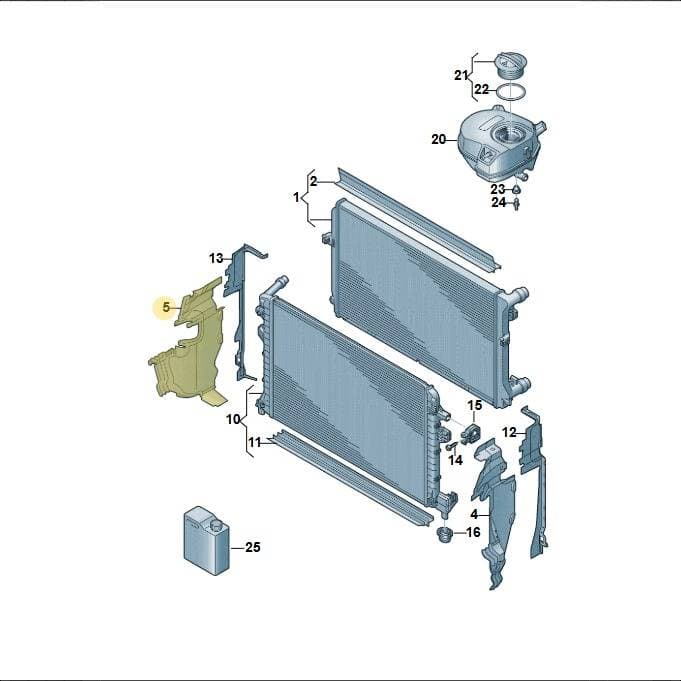

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Air Guide, part number 5H0121284BA. This air guide directs airflow to the coolant reservoir and additional coolant coolers for improved thermal management. It is positioned on the left side of the radiator assembly. Weighing 0.141 kg, it is constructed from durable materials for long-lasting performance. Genuine OEM parts ensure precise fitment and optimal thermal regulation.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87089199
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 0.14 kg
Parts diagram & fitment
1 vehicleAir Guide — locate 5H0121284BA Volkswagen Coolant Air Guide | Left Side in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Radiator 5WA121251D
- 1Radiator 5WA121251E
- 4Air Guide 5H0121283BA
- 4Air Guide 5H0121283BC
- 4Air Guide 5H0121283T
- 5Air Guide 5H0121284T
- 10Radiator 5Q0121251HQ
- 12Seal Strip 2GA121331A
- 13Seal Strip 2GA121332D
- 14Bolt N90972201
- 15Rubber Bush 5Q0121367G
- 16Bush 1K0121367F
- 18Air Guide 2GA121330K
- 20Container 5WA121407F
- 21Cover 2Q0121321A
- 25Coolant G12E050A2
- 25Coolant G12E050A8
- 25Coolant G12E050A9
- 25Coolant G12E100A8
- 25Coolant G12E100A9
Diagrams & fitment data powered by oemdiagrams.com
5H0121284BA Volkswagen Coolant Air Guide | Left Side is fitted on: Golf 2.0 BlueMotion 2019-2024.
